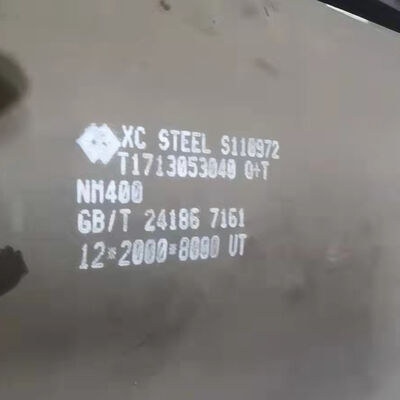

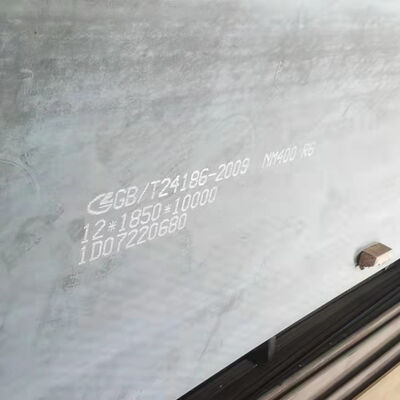

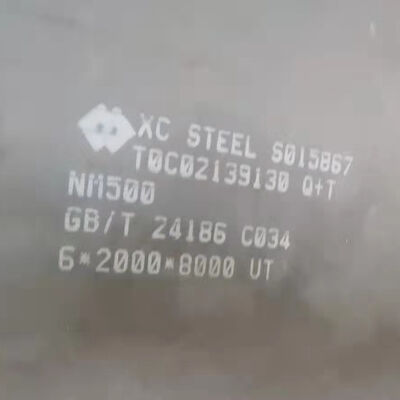

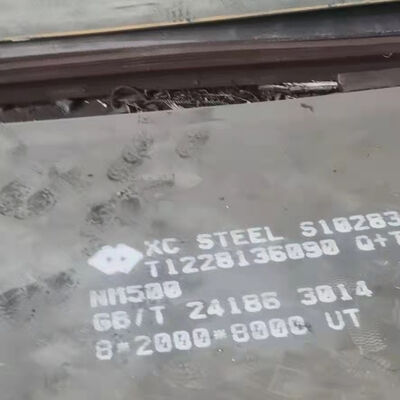

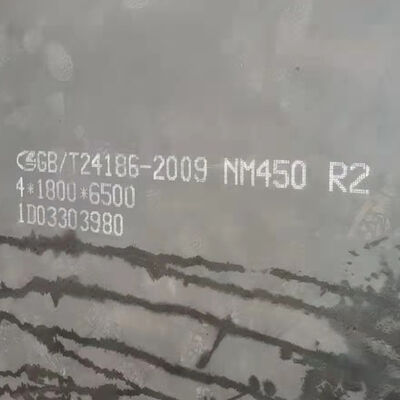

NM360 NM400 NM500 Wear Abrasion Resistant Steel Plate Hot Rolled for Mining and Construction
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m 8m 10m |
| Hardness HRC | 5.0 - 80.0mm | Yield Strength | 900-1250 MPa |
| Tensile Strength | 1000-1450 MPa | Elongation | 8-11% |
| Impact Strength | -30C To -40C | Hardness Range | 360-540 |
| Carbon Content | 0.18-0.30% | Silicon Content | 0.7% |
| Manganese Content | 1.70% | Chromium Content | 1.00-1.50% |
| Production Capacity | 50000kgs | ||
| Highlight | NM360 Wear Resistant Steel Plate,NM400 Abrasion Resistant Steel Plate,NM500 AR Steel Plate |
||
Product Description
Abrasion Resistant Steel Plate NM360, NM400, NM500
Our abrasion resistant (AR) steel plates are specifically engineered for extended service life in demanding industrial environments. These premium steel products offer exceptional resistance to sliding and impact abrasion, making them ideal for applications in mining, quarrying, material handling, construction, and earthmoving operations.
Product Specifications
Available Grades: NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600
Thickness Range: 5.0mm - 80.0mm
Width Options: 1500mm, 2000mm, 2200mm
Length Options: 6m, 8m, 10m or custom lengths as requested
Hardness (HRC): 5.0 - 80.0mm
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Application Areas
- AR400: Premium abrasion resistant plates with heat treatment and through-hardening. Excellent forming and welding capabilities.
- AR450: Ideal for applications requiring slightly greater strength than AR400.
- AR500: Suitable for mining, forestry, and construction applications with high impact requirements.
- AR600: Utilized in extreme wear areas including aggregate removal, mining operations, and manufacturing of buckets and wear bodies.
Shipping & Delivery Information
Delivery Time: 7-30 days after order confirmation
Shipping Methods: Bulk or container shipping
Shipping Port: Shanghai
Payment Terms: T/T, L/C, Western Union
Price Terms: EX-Work, FOB, CFR, CIF
Packaging Details
Standard seaworthy export packaging with bundled steel straps for secure loading and unloading. Custom packaging available upon request. Container specifications: 20ft GP (24-26 CBM) and 40ft GP (68 CBM).
