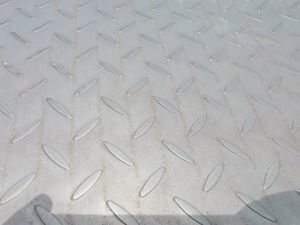

Hot Rolled A36 Grade Diamond Checker Plate with 2.0mm-12mm Thickness for Floor and Construction
Product Details
| Model NO. | A36 | Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm |
|---|---|---|---|
| Grade | SS400,Q235B,A36 | Technique | Hot Rolled |
| Thickness | 2.0mm-12mm | Width | 1250mm,1500mm,1800mm |
| Length | Coil Or As Custom's Request | Pattern | Tear Drop, Diamond, Lentils Form, Round Beans Form |
| Carbon Max | 0.026% | Manganese Max | 0% |
| Phosphorus Max | 0.04% | Sulphur Max | 0.05% |
| Silicon Max | 0.4% | Copper Max | 0.20% |
| Tensile Strength | 58-80 Ksi | ||
| Highlight | Hot Rolled Checker Plate,A36 Grade Chequered Steel Plate,2.0mm-12mm Thickness Diamond Checker Plate |
||
Product Description
A786 Checker Plate - Floor Checkered Plate - A36 Diamond Checker Plate
High-quality chequered steel plate designed for industrial applications requiring superior traction and durability.
Product Specifications
| Product Name | Chequered Steel Plate |
| Grade | SS400, Q235B, A36 |
| Technique | Hot Rolled |
| Thickness | 2.0mm - 12mm |
| Width | 1250mm, 1500mm, 1800mm |
| Length | Coil or Custom Length |
| Pattern | Tear Drop, Diamond, Lentils Form, Round Beans Form |
| Packing | Bundle Packed by Steel Strip, or Custom Request |
| Application | Construction, Machinery, Building, Container Manufacture, Shipping Building, Bridge and Other Fields |
| Brands | Shougang, HBIS, Rizhao Steel, Benxi Steel, etc. |
Chemical Properties
| Carbon, Max % | 0.026 |
| Manganese, Max % | 0 |
| Phosphorus, Max % | 0.04 |
| Sulphur, Max % | 0.05 |
| Silicon, Max % | 0.4 |
| Copper, Max % | 0.20 |
Mechanical Properties
| Tensile Strength ksi | 58-80 |
| Yield 2% Offset ksi | 36 |
Plates and Bars: D,E
| Elongation in 8in (min) | 20% |
| Elongation in 2in (min) | 23% |
Shapes
| Elongation in 8in (min) | 20% |
| Elongation in 2in (min) | 21% |
Order & Delivery Information
| Payment Terms | T/T or L/C at Sight |
| Delivery Conditions | Bulk Vessel or Container |
| Delivery Time | 20 to 30 Days After Receipt of L/C or T/T |
Packaging & Shipping
The sheet is packed in bundles with approximately 3 tons per pack. Standard packaging includes:
• Wrapped by waterproof paper
• Tied up with steel stripes
• Fixed on steel pallet
Contact us for any special packaging requirements.
