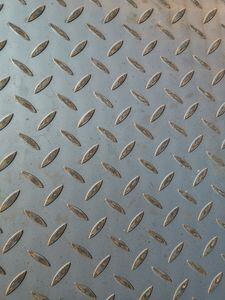

A36 Q235B ST37 Hot Rolled Diamond Floor Plate Checker Plate with 2.0mm-12mm Thickness
Product Details
| Model NO. | A36 Q235B ST37 | Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm |
|---|---|---|---|
| Grade | SS400,Q235B,A36 | Technique | Hot Rolled |
| Thickness | 2.0mm-12mm | Width | 1250mm,1500mm,1800mm |
| Length | Coil Or As Custom's Request | Pattern | Tear Drop, Diamond, Lentils Form, Round Beans Form |
| Carbon Max | 0.026% | Manganese Max | 0% |
| Phosphorus Max | 0.04% | Sulphur Max | 0.05% |
| Silicon Max | 0.4% | Copper Max | 0.20% |
| Tensile Strength | 58-80 Ksi | ||
| Highlight | A36 Q235B ST37 Diamond Floor Plate,Hot Rolled Checker Plate,2.0mm-12mm Thickness Chequered Steel Plate |
||
Product Description
Diamond Floor Plate A36 Q235B St37 Diamond Checker Plate
ASTM A36 Steel Checker Plate & Q235B Hot Rolled Steel Chequered Plate
| Product Specification | Details |
|---|---|
| Product Name | Chequered Steel Plate |
| Grade | SS400, Q235B, A36 |
| Technique | Hot Rolled |
| Thickness | 2.0mm - 12mm |
| Width | 1250mm, 1500mm, 1800mm |
| Length | Coil or as custom's request |
| Pattern | Tear Drop, Diamond, Lentils Form, Round Beans Form |
| Packing | Bundle packed by steel strip, or as per request |
| Application | Construction, machinery, building, container manufacture, shipping building, bridge and other fields |
| Brands | Shougang, HBIS, Rizhao Steel, Benxi Steel, etc. |
| Payment Terms | T/T or L/C at sight |
| Delivery Conditions | Bulk vessel or container |
| Delivery Time | 20 to 30 days after receipt of L/C or T/T |
Chemical Properties
| Element | Maximum Percentage |
|---|---|
| Carbon | 0.026% |
| Manganese | 0% |
| Phosphorus | 0.04% |
| Sulphur | 0.05% |
| Silicon | 0.4% |
| Copper | 0.20% |
Mechanical Properties
General Properties
| Property | Value |
|---|---|
| Tensile Strength | 58-80 ksi |
| Yield 2% Offset | 36 ksi |
Plates and Bars: D,E
| Property | Minimum Value |
|---|---|
| Elongation in 8in | 20% |
| Elongation in 2in | 23% |
Shapes
| Property | Minimum Value |
|---|---|
| Elongation in 8in | 20% |
| Elongation in 2in | 21% |
