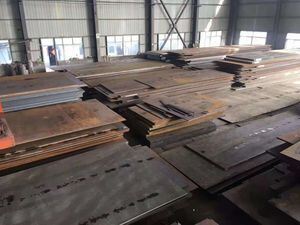

20mm Thick ASTM A572 Gr 50 Hot Rolled Carbon Steel Plate for Boiler Applications
Product Details
| Thickness | 6MM To 300MM | Width | 1500mm To 4050mm |
|---|---|---|---|
| Length | 3000mm To 15000mm | Technique | Hot Rolled |
| Carbon Content | 0.27-0.31% | Silicon Content | 0.13-0.45% |
| Manganese Content | 0.79-1.30% | Phosphorus Content | 0.035% |
| Sulfur Content | 0.035% | Yield Strength | 260 Mpa |
| Tensile Strength | 485-620 Mpa | Elongation | 17-21% |
| Carbon Equivalent | Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15% | Production Capacity | 500000kgs |
| Supplementary Technology | HIC Test, NACE MR0175, Z15, Z25, Z35, S1-S9, S11, S12, S14, S17 | ||
| Highlight | 20mm Thick Steel Plate,ASTM A572 Gr 50 Carbon Steel Plate,Hot Rolled Boiler Plate |
||
Product Description
Carbon Steel Plate 20mm Thick ASTM A572, Gr 50, S355 (Grade 50ksi)
ASME SA516 GR 70 Plate Boiler and Pressure Vessel Hot Rolled Astm A516 Gr 70 Mechanical Specifications
ASME SA516 Steel Plate
SA516Gr70 | ASME SA516 Grade 70 | SA516 Gr.70 STEEL PLATE
ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower-temperature service.
ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.
Supplementary Technology
- HIC Test
- NACE MR0175
- Z15 | Z25 | Z35
- S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
- Thickness: 6MM to 300MM
- Width: 1500mm to 4050mm
- Length: 3000mm to 15000mm
Gangsteel is specialized in supplying ASME SA516 steel plate in SA516 grade 70.
SA516 Grade 70 Chemical Composition
| Grade SA516 grade 70 | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| Thick <12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick >200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
SA516 Grade 70 Mechanical Property
| Grade | Thickness | Yield Min Mpa | Tensile Mpa | Elongation Min % |
|---|---|---|---|---|
| SA516 grade 70 | 6-50 mm | 260 | 485-620 | 21% |
| SA516 grade 70 | 50-200 mm | 260 | 485-620 | 17% |
Related Steel Plate Categories
Shipbuilding steel plate
Alloy steel plates
High strength plate
Carbon steel plate
Stainless steel plate
Equivalent Steel Grade of SA516 Grade 70
| Europe | Belgium | Germany | France | Italy | Sweden | India | Japan |
|---|---|---|---|---|---|---|---|
| E St E315 | Fe 460-2-KG | SS29,12,01 |
If you need more stock steel plates in pressure vessel steel plate, please click warehouse sizes.
