EN10025 Standard Hot Rolled S275JR S355JR S355J0 SS400 Structural Steel Plate Cutting to Circle

Minimum Order Quantity	1 Ton
Price	US $650-850 / Ton

Product Details

Model NO.	S275JR S355JR S355J0 SS400	HS Code	7219340000
Production Capacity	50000kgs	Yield Strength	355 N/mm²
Tensile Strength	490-630 N/mm²	Elongation	22%
Impact Values	27 Joules At -20°C	Thickness Range	8mm-300mm
Width Range	1500-4020mm	Length Range	3000-27000mm
Carbon Content	0.22% Max	Silicon Content	0.55% Max
Manganese Content	1.60% Max	Phosphorus Content	0.035% Max
Sulfur Content	0.035% Max
Highlight	EN10025 Standard Steel Plate , S275JR S355JR S355J0 SS400 Structural Steel Plate , Cutting to Circle Hot Rolled Steel Plate

Leave a Message

Product Description

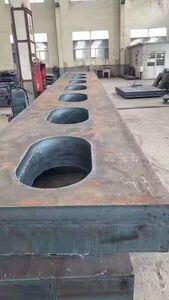

EN10025 Standard Hot Rolled Steel Plates - Custom Circle Cutting

Professional steel plate cutting services for EN10025 standard hot rolled S275JR, S355JR, S355J0, and SS400 steel plates, precision-cut to circular specifications for industrial applications.

S355 Structural Steel Overview

S355 is a high-strength structural steel grade with minimum yield strength of 355 N/mm², widely utilized in engineering and construction industries. This steel offers exceptional yield and tensile strength properties, available with various treatments and testing options to ensure optimal performance across diverse project requirements.

S355J2G3 & S355J2+N Steel Grades

EN 10025-2 S355J2G3 and S355J2+N represent identical steel grades, both supplied in normalized condition. Grade designations indicate specific properties:

S - Structural Steel
JR - 20°C temperature impact test
J0 - 0°C temperature impact test
J2 - -20°C temperature impact test
G3 & N - Normalized delivery condition

S355J2G3 Characteristics

S355J2G3 is a low carbon, high tensile strength structural steel featuring excellent weldability with other compatible steels. With its low carbon equivalent, this steel demonstrates superior cold-forming properties. Manufactured using fully killed steel process, the plates are supplied in normalized or controlled rolling conditions.

Application Areas

S355J2G3 steel plates serve diverse industrial applications including:

Structural components for freight cars and railway wagons
Transmission towers and building structures
Heavy equipment: dump trucks, cranes, trailers, bulldozers, excavators
Forestry machinery and construction equipment
Marine structures: dolphins, penstocks, shipbuilding, offshore platforms
Industrial systems: pipes, power plants, palm oil equipment
Mechanical components: fans, pumps, lifting equipment, port machinery

Available Dimensions

Thickness: 8mm - 300mm
Width: 1500mm - 4020mm
Length: 3000mm - 27000mm

Chemical Composition (Maximum %)

Element	C	Si	Mn	P	S	C.E.
Content	0.22	0.55	1.60	0.035	0.035	0.047

Mechanical Properties

Thickness (mm)	Yield Strength Reh Min (N/mm²)	Tensile Strength Rm Min (N/mm²)	Elongation A5 Min (%)	Impact Values Charpy-V-Notch
≥ 3 - ≤ 100	315 - 355	490-630	max 22	27 Joules at -20°C

Equivalent Grades

DIN 17100 ST52-3; ASTM A572-50; JIS G3106 SM490; JIS 3101 SS490; ABS EH36; LRS EH36; BS4360 Grade50D; BS4360 Gr50DD

Company Specialization

We specialize in low alloy high strength structural steel, providing specification standard plates according to EN 10025-2, EN 10025-3, EN 10025-4, EN 10025-6, ASTM A633, ASTM A573, ASTM A572, DIN 17100, JIS G3106, ASTM A709, ASTM A283, ASTM A529, ASTM A656, EN 10225, ISO 630, NFA 35-501, and related standards, with thickness capacity up to 300mm.
