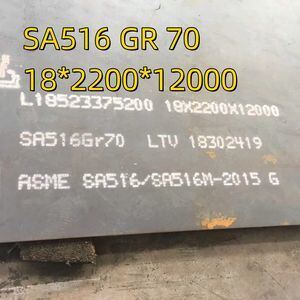

ASME SA516 Gr 70 Hot Rolled Steel Plate with 6mm to 300mm Thickness for Corrosion Resistant Boiler Applications
Product Details
| Model NO. | A516 Gr 70 | Technique | Hot Rolled |
|---|---|---|---|
| Width Range | 100-3000mm | Production Capacity | 500000kgs |
| Thickness Range | 6MM To 300MM | Width Range | 1500mm To 4050mm |
| Length Range | 3000mm To 15000mm | Carbon Max | 0.27-0.31% |
| Silicon Range | 0.13-0.45% | Manganese Range | 0.79-1.30% |
| Phosphorus Max | 0.035% | Sulfur Max | 0.035% |
| Yield Strength | 260 Mpa | Tensile Strength | 485-620 Mpa |
| Elongation Min | 17-21% | ||
| Highlight | Hot Rolled ASME SA516 Gr 70 Steel Plate,6mm to 300mm Thickness Pressure Vessel Steel Plate,Corrosion Resistant ASTM A516 Gr70 Boiler Plate |
||
Product Description
ASME SA516 Gr 70 Steel Plate
ASTM A516 Gr70 Boiler and Pressure Vessel Hot Rolled Plate with Mechanical Specifications
Product Overview
ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower-temperature service. ASME SA516 plates 40mm and under in thickness are normally supplied in the as-rolled condition. Plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.
Supplementary Technology
- HIC Test
- NACE MR0175
- Z15 | Z25 | Z35
- S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
- Thickness: 6MM to 300MM
- Width: 1500mm to 4050mm
- Length: 3000mm to 15000mm
SA516 Grade 70 Chemical Composition
| Grade | Element | Thickness | C (%) | Si (%) | Mn (%) | P (%) | S (%) |
|---|---|---|---|---|---|---|---|
| SA516 Grade 70 | Max (%) | Thick <12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick 50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick 100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick >200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
SA516 Grade 70 Mechanical Properties
| Grade | Thickness (mm) | Yield Min (Mpa) | Tensile (Mpa) | Elongation Min (%) |
|---|---|---|---|---|
| SA516 Grade 70 | 6-50 | 260 | 485-620 | 21% |
| SA516 Grade 70 | 50-200 | 260 | 485-620 | 17% |
Related Steel Plate Categories
Shipbuilding steel plate | Alloy steel plates | High strength plate | Carbon steel plate | Stainless steel plate
Equivalent Steel Grades of SA516 Grade 70
Europe
Fe 460-2-KG
Belgium
E St E315
France
SS29,12,01
