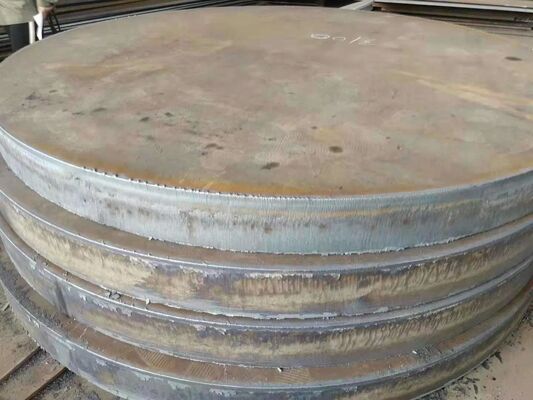

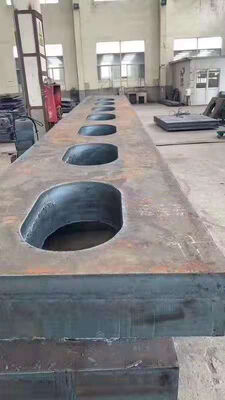

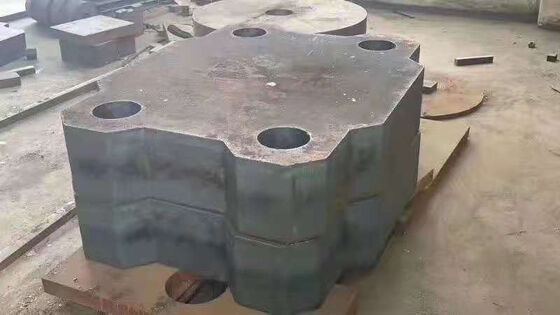

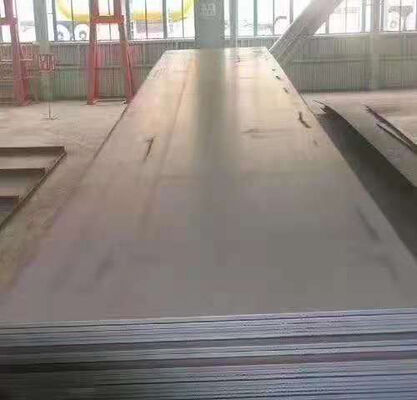

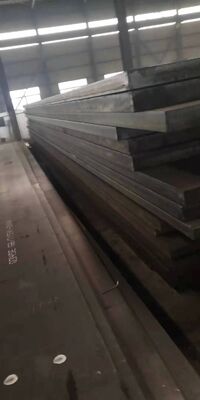

Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness

  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
  • Hot Rolled ASME SA516 Gr70 Steel Plate for Boiler and Pressure Vessel with 6mm to 300mm Thickness
Minimum Order Quantity 1 Ton
Price US $720-1,450 / Ton
Product Details
Model NO. SA572 Gr50 A516 Gr70 Technique Hot Rolled
Width Range 100-3000mm Thickness Range 6MM To 300MM
Width Range 1500mm To 4050mm Length Range 3000mm To 15000mm
Carbon Max 0.27-0.31% Silicon Range 0.13-0.45%
Manganese Range 0.79-1.30% Phosphorus Max 0.035%
Sulfur Max 0.035% Yield Strength 260 Mpa
Tensile Strength 485-620 Mpa Elongation Min 17-21%
Carbon Equivalent Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
Highlight

Hot Rolled Steel Plate

,

ASME SA516 Gr70 Boiler Plate

,

6mm to 300mm Thickness Pressure Vessel Plate
Leave a Message
Product Description
ASME SA516 Grade 70 Boiler and Pressure Vessel Steel Plate
ASME SA516 specification covers carbon steel plates for pressure vessels for moderate and lower-temperature service. These hot-rolled steel plates are specifically designed for boiler and pressure vessel applications.
Material Specifications
ASME SA516 plates up to 40mm thickness are typically supplied in as-rolled condition. Plates can be ordered normalized or stress relieved, or both. Plates over 40mm thickness must be normalized.
Supplementary Testing Capabilities
HIC Test | NACE MR0175 | Z15 | Z25 | Z35 | S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
Thickness: 6mm to 300mm
Width: 1500mm to 4050mm
Length: 3000mm to 15000mm
SA516 Grade 70 Chemical Composition
Element Thickness <12.5mm Thickness 12.5-50mm Thickness 50-100mm Thickness 100-200mm Thickness >200mm
C (Max %) 0.27 0.28 0.30 0.31 0.31
Si (%) 0.13-0.45 0.13-0.45 0.13-0.45 0.13-0.45 0.13-0.45
Mn (%) 0.79-1.30 0.79-1.30 0.79-1.30 0.79-1.30 0.79-1.30
P (Max %) 0.035 0.035 0.035 0.035 0.035
S (Max %) 0.035 0.035 0.035 0.035 0.035
Carbon Equivalent Formula: Ceq = C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15%
SA516 Grade 70 Mechanical Properties
Thickness Range Yield Strength (Min MPa) Tensile Strength (MPa) Elongation (Min %)
6-50mm 260 485-620 21%
50-200mm 260 485-620 17%
Related Steel Plate Categories
Shipbuilding steel plate Alloy steel plates High strength plate Carbon steel plate Stainless steel plate
International Equivalent Grades
Europe Belgium Germany France Italy Sweden India Japan
E St E315 Fe 460-2-KG SS29,12,01
For additional stock sizes in pressure vessel steel plate, please check our warehouse inventory.
