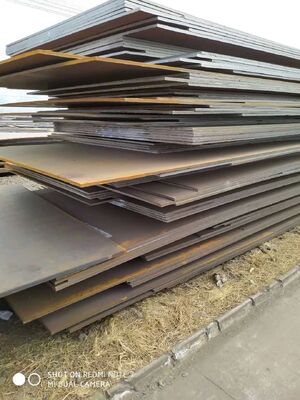

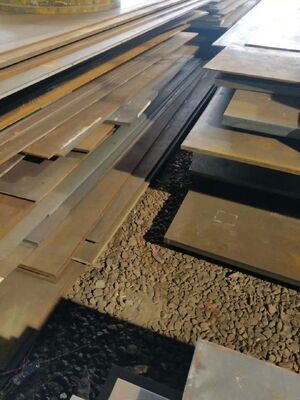

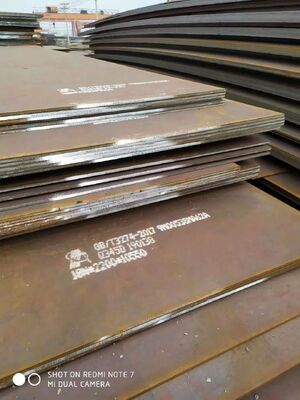

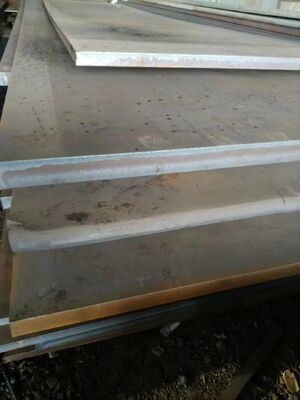

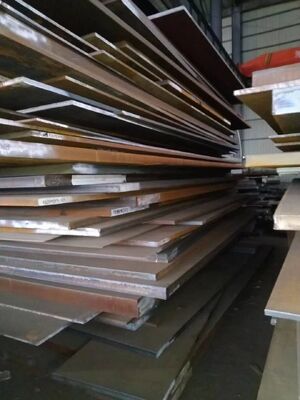

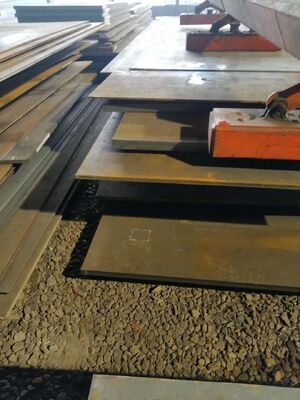

Hot Rolled EN 10028-2 Steel Plate for High Temperature Applications in Boiler and Pressure Vessels

Minimum Order Quantity	1 Ton
Price	US $750-1,450 / Ton

Product Details

Width	100-3000mm	Technique	Hot Rolled
Carbon Content	0.20%	Silicon Content	0.40%
Manganese Content	0.80-1.40%	Phosphorus Content	0.025%
Sulfur Content	0.015%	Aluminum Content	0.020%
Nitrogen Content	0.012%	Yield Strength	265-215 MPa
Tensile Strength	410-530 MPa	Elongation	22%
Impact Energy	27-40 J	Thickness Range	≤16mm To ≤250mm
Chromium Content	0.30%
Highlight	Hot Rolled Steel Plate , EN 10028-2 Boiler Plate , High Temperature Applications Pressure Vessel Steel Plate

Leave a Message

Product Description

P265GH Steel Plate - Heat Resistant Pressure Vessel Steel

Grade P265GH is a heat resistant pressure vessel steel defined in the EN 10028 system. This non-alloy steel is specifically designed for high temperature applications, making it ideal for use in the oil and gas sector, chemical processing industries, and petrochemical sectors.

P265GH Chemical Composition Maximum (%)

Grade	C	Si	Mn	P	S	Al(min)	N
P265GH	0.20	0.40	0.80-1.40	0.025	0.015	0.020	0.012

Cr	Cu	Mo	Nb	Ni	Ti	V
0.30	0.30	0.08	0.020	0.30	0.03	0.02

P265GH Mechanical Properties

Grade	Thickness (mm)	Yield Min (MPa)	Tensile (MPa)	Elongation Min (%)	Impact Energy (KV J) min
P265GH	≤ 16	265	410-530	22	27
	16 > to ≤ 40	255	410-530	22	27
	40 > to ≤ 60	245	410-530	22	27
	60 > to ≤ 100	215	410-530	22	27
	100 > to ≤ 150	200	400-530	22	27
	150 > to ≤ 250	185	390-530	22	40

Related Steel Plate Grades

Ordinary Carbon Structural Steel Plate: Q235A, Q275A, Q295A, SS400, AS3678-250, A36, SM400A, St37-2, SA283GrA, S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S275N, S275NL, etc.

Low Alloy High Strength Steel Plate: Q345A, Q355B, Q390A, Q420A, S420N, LS420M, S460M, S420ML/S460ML, AS3678-300, AS3678-350, S460N, S460NL, SM490B, SM490YB, A572Gr50, A572Gr65, St52-3, S355JR, A709Gr50, A633C/D, A633E, SM520, SM570, S315, StE355, StE460, S355JO, S355J2, S355J2W, S355K2, S355N, S355NL.

Offshore Structural Steel Plate: S355G2+N, S355G3+N, S355G5+M, S355G6+M, S355G7+M, S355G7+N, S355G8+M, S355G8+N, S355G9+M, S355G9+N, S355G10+M, S355G10+N.

Steel Plates for Boilers and Pressure Vessels: SA387Gr11, SA387Gr22, 15MnNiR, 12Cr1MoVR, A515Gr60, (S)A515Gr65, (S)A515G70, (S)A516Gr60, (S)A516Gr65, (S)A516Gr70, (S)A516Gr415, (S)A516Gr485, SPV355, SPV450, 19Mn6, 15Mo3, 16Mo3, A573Gr70, SA285GrC, SB41, SP235GH, HII/P265GH, P295GH, P275NH, P275NL1, P355GH, P355NH, P355NL1, SA662GrC, P460NH, A537CL1, A537CL2 (quenched and tempered steel), etc.

Steel Plate for Bridge: Q235QC, Q345QC, Q370QC, Q420QC, Q345QDNH, Q370QDNH, A709-50F-2, A709-50T-2.

EN 10207 P265GH Steel Plate

EN 10207 covers steels for simple pressure vessels, defined as any welded vessel subject to internal gauge pressure greater than 0.5 bar intended to contain air or nitrogen and not intended to be fired.
We supply steel certified to EN 10207 P265S as plate, cut plate, or profiles (cut shapes).
EN 10207 P265S is steel for pressure purposes with minimum yield strength of 265 MPa, featuring specified mechanical properties at elevated temperatures.
This material is delivered in the normalized condition or an equivalent condition obtained by normalized rolling.

For any other steel plate requirements, please feel free to contact us.
