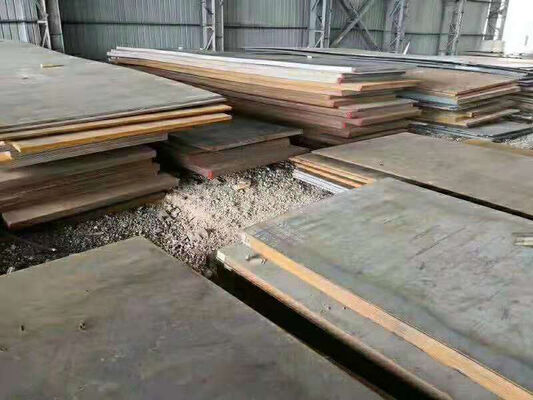

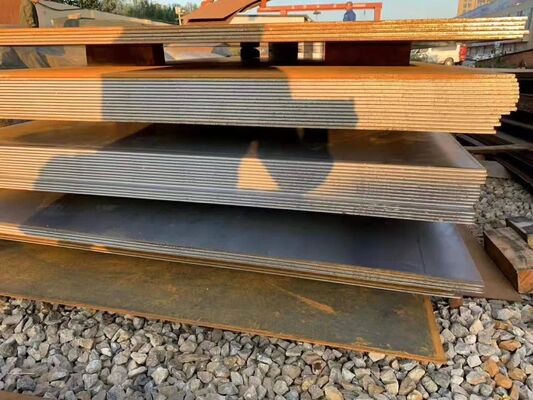

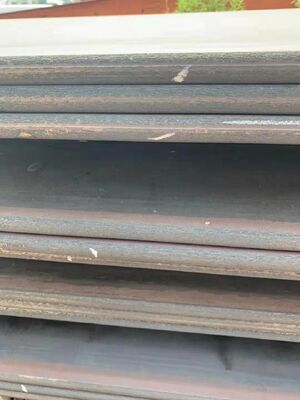

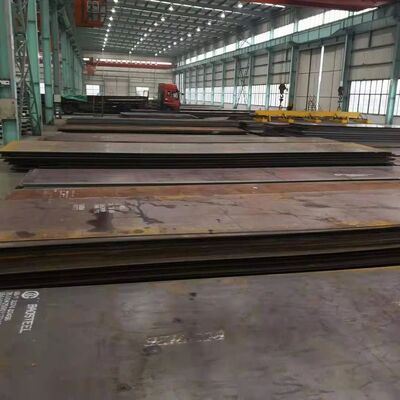

Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness

  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
  • Hot Rolled ASME SA516 Gr 70 Steel Plate for Boiler and Pressure Vessel with 6MM to 300MM Thickness
Minimum Order Quantity 1 Ton
Price US $680-1,450 / Ton
Product Details
Technique Hot Rolled Width 100-3000mm
Thickness 6MM To 300MM Width Range 1500mm To 4050mm
Length Range 3000mm To 15000mm Carbon Content 0.27-0.31%
Silicon Content 0.13-0.45% Manganese Content 0.79-1.30%
Phosphorus Content 0.035% Sulfur Content 0.035%
Yield Strength 260 Mpa Tensile Strength 485-620 Mpa
Elongation 17-21% Carbon Equivalent Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
Production Capacity 500000kgs
Highlight

Hot Rolled Steel Plate

,

ASME SA516 Gr 70 Boiler Plate

,

6MM to 300MM Thickness Pressure Vessel Plate
Leave a Message
Product Description
Q345R Q245R ASTM A516 Gr 60/70 A283 Gr C Boiler Pressure Steel Plate
High-quality boiler and pressure vessel steel plates manufactured to meet ASME SA516 standards for moderate and lower-temperature service applications.
ASME SA516 Grade 70 Steel Plate Specifications
Material Standards & Designations
  • Standard: ASME SA516 - Pressure Vessel Plates, Carbon Steel
  • Grade: SA516 Grade 70
  • Application: Moderate and Lower-Temperature Service
Heat Treatment Requirements
  • Plates ≤40mm thickness: Normally supplied as-rolled
  • Optional treatments: Normalized or stress relieved
  • Plates >40mm thickness: Must be normalized
Available Supplementary Testing
HIC Test NACE MR0175 Z15 Z25 Z35 S1 S2 S3 S4.1 S5 S6 S7 S8 S9 S11 S12 S14 S17
Dimensional Range
  • Thickness: 6mm to 300mm
  • Width: 1500mm to 4050mm
  • Length: 3000mm to 15000mm
SA516 Grade 70 Chemical Composition
Thickness Range C (%) Si (%) Mn (%) P (%) S (%)
<12.5mm 0.27 0.13-0.45 0.79-1.30 0.035 0.035
12.5-50mm 0.28 0.13-0.45 0.79-1.30 0.035 0.035
50-100mm 0.30 0.13-0.45 0.79-1.30 0.035 0.035
100-200mm 0.31 0.13-0.45 0.79-1.30 0.035 0.035
>200mm 0.31 0.13-0.45 0.79-1.30 0.035 0.035
Carbon Equivalent: Ceq = C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15%
SA516 Grade 70 Mechanical Properties
Thickness (mm) Yield Strength Min (MPa) Tensile Strength (MPa) Elongation Min (%)
6-50 260 485-620 21
50-200 260 485-620 17
Related Steel Plate Products
Shipbuilding Steel Plate Alloy Steel Plates High Strength Plate Carbon Steel Plate Stainless Steel Plate
International Equivalent Grades
  • Europe: P265GH, P275NH
  • Germany: HII, HIII
  • France: Fe 460-2-KG
  • Italy: SS29, 12, 01
  • Japan: SB410, SB450
