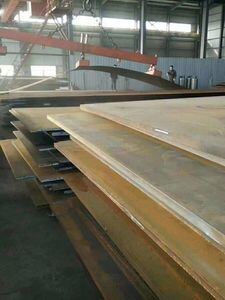

ASTM A516 Gr70 Hot Rolled Pressure Vessel Steel Plate with 6MM to 300MM Thickness for Boiler Applications
Product Details
| Model NO. | ASTM A516 Gr60 Gr70 | Technique | Hot Rolled |
|---|---|---|---|
| Width | 100-3000mm | Production Capacity | 500000kgs |
| Thickness Range | 6MM To 300MM | Width Range | 1500mm To 4050mm |
| Length Range | 3000mm To 15000mm | Carbon Content | 0.27-0.31% |
| Silicon Content | 0.13-0.45% | Manganese Content | 0.79-1.30% |
| Phosphorus Content | 0.035% | Sulfur Content | 0.035% |
| Yield Strength | 260 Mpa | Tensile Strength | 485-620 Mpa |
| Elongation | 17-21% | ||
| Highlight | ASTM A516 Gr70 Steel Plate,Hot Rolled Pressure Vessel Steel Plate,6MM to 300MM Thickness Boiler Plate |
||
Product Description
ASTM A516 Gr60 Gr70 Hot Rolled Pressure Vessel Steel Plate
High-quality ASME SA516 GR 70 boiler and pressure vessel plates manufactured as hot rolled steel meeting ASTM A516 Gr 70 mechanical specifications for moderate and lower-temperature service applications.
ASME SA516 Steel Plate Specifications
ASME SA516 standard specification covers pressure vessel plates, carbon steel designed for moderate and lower-temperature service conditions.
Heat Treatment Requirements
- Plates 40mm and under in thickness are normally supplied in the as-rolled condition
- Plates may be ordered normalized or stress relieved, or both
- ASME SA516 grade plates over 40mm in thickness shall be normalized
Supplementary Testing Options
HIC Test | NACE MR0175 | Z15 | Z25 | Z35 | S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
- Thickness: 6MM to 300MM
- Width: 1500mm to 4050mm
- Length: 3000mm to 15000mm
SA516 Grade 70 Chemical Composition
| Grade | Element | Thickness | C Max (%) | Si (%) | Mn (%) | P Max (%) | S Max (%) |
|---|---|---|---|---|---|---|---|
| SA516 Grade 70 | Max (%) | Thick <12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick 50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick 100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | ||
| Thick >200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
SA516 Grade 70 Mechanical Properties
| Grade | Thickness (mm) | Yield Min (Mpa) | Tensile (Mpa) | Elongation Min (%) |
|---|---|---|---|---|
| SA516 Grade 70 | 6-50 | 260 | 485-620 | 21% |
| SA516 Grade 70 | 50-200 | 260 | 485-620 | 17% |
Related Steel Plate Categories
Shipbuilding steel plate
Alloy steel plates
High strength plate
Carbon steel plate
Stainless steel plate
Equivalent Steel Grades of SA516 Grade 70
| Europe | Belgium | Germany | France | Italy | Sweden | India | Japan |
|---|---|---|---|---|---|---|---|
| E St E315 | Fe 460-2-KG | SS29,12,01 |
For additional stock steel plates in pressure vessel steel plate, please check our warehouse sizes.
