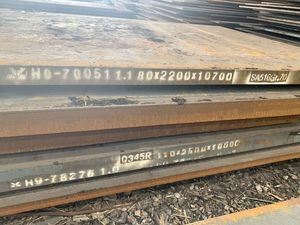

ASTM A516 Gr70 Hot Rolled Pressure Vessel Steel Plate Corrosion Resistant for Boiler Applications
Product Details
| Model NO. | ASTM A516 Gr70 | Technique | Hot Rolled |
|---|---|---|---|
| Width Range | 100-3000mm | Thickness Range | 6MM To 300MM |
| Width Range | 1500mm To 4050mm | Length Range | 3000mm To 15000mm |
| Carbon Max | 0.27-0.31% | Silicon Range | 0.13-0.45% |
| Manganese Range | 0.79-1.30% | Phosphorus Max | 0.035% |
| Sulfur Max | 0.035% | Yield Strength | 260 Mpa |
| Tensile Strength | 485-620 Mpa | Elongation Min | 17-21% |
| Carbon Equivalent | Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15% | ||
| Highlight | Hot Rolled ASTM A516 Gr70,Pressure Vessel ASME SA516 Grade 70,Corrosion Resistant SA516 Gr.70 STEEL PLATE |
||
Product Description
ASTM A516 Gr70 Boiler Plate / ASTM A516 Grade 70 Pressure Vessel Steel Plate
ASME SA516 GR 70 Plate Boiler and Pressure Vessel Hot Rolled Astm A516 Gr 70 Mechanical Specifications
ASME SA516 Steel Plate Specifications
ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower-temperature service.
Heat Treatment Requirements
ASME SA516 plates 40mm and under in thickness are normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.
Supplementary Technology
HIC Test | NACE MR0175 | Z15 | Z25 | Z35 | S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
Thickness: 6MM to 300MM
Width: 1500mm to 4050mm
Length: 3000mm to 15000mm
SA516 Grade 70 Chemical Composition
| Grade | Element | C | Si | Mn | P | S |
|---|---|---|---|---|---|---|
| SA516 Grade 70 | Thick <12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick 12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | |
| Thick 50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | |
| Thick 100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 | |
| Thick >200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
SA516 Grade 70 Mechanical Properties
| Grade | Thickness (mm) | Yield Min (Mpa) | Tensile (Mpa) | Elongation Min (%) |
|---|---|---|---|---|
| SA516 Grade 70 | 6-50 | 260 | 485-620 | 21% |
| SA516 Grade 70 | 50-200 | 260 | 485-620 | 17% |
Related Steel Plate Categories
Shipbuilding steel plate | Alloy steel plates | High strength plate | Carbon steel plate | Stainless steel plate
Equivalent Steel Grades of SA516 Grade 70
| Europe | Belgium | Germany | France | Italy | Sweden | India | Japan |
|---|---|---|---|---|---|---|---|
| E St E315 | Fe 460-2-KG | SS29,12,01 |
For additional stock steel plates in pressure vessel steel plate, please check warehouse sizes.
