EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications

  • EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications
Minimum Order Quantity 1 Ton
Price US $680-950 / Ton
Product Details
Model NO. P265GH Technique Hot Rolled
Specification 1220*2440, 1500*3000, 1500*6000, 2000*6000mm Production Capacity 50000kgs
C. % 0.20 Mn.% 0.80-1.40
S. 0.015 N 0.012
Cu 0.30 Nb 0.020
Ti. 0.03 Si. 0.40
P. 0.025 AL 0.020
Cr. 0.30
Highlight

EN10028-2 Steel Plate

,

Hot Rolled Boiler Steel Plate

,

Pressure Vessel P265GH Steel Plate
Leave a Message
Product Description
P265GH Alloy Steel Plate for Boiler and Pressure Vessel Applications
EN10028 P265GH Steel Plate is specifically designed for boiler and pressure vessel applications. This material features a minimum yield strength ranging from 185 to 265 MPa and offers excellent weldability characteristics, making it ideal for manufacturing boilers, pressure vessels, and pipes that transport hot liquids.
Chemical Composition
P265GH Steel Chemical Analysis (%)
Grade C Mn S N Cu Nb Ti Si P Al Cr Mo Ni V
P265GH 0.20 0.80-1.40 0.015 0.012 0.30 0.020 0.03 0.40 0.025 0.020 0.30 0.08 0.30 0.02
Mechanical Properties
P265GH Steel Mechanical Properties
Grade Type Thickness (mm) Yield Strength MPa (min) Tensile Strength MPa Elongation % (min) Impact Energy (KVJ) (min)
-20° 0° +20°
P265GH Normalized ≤16 265 410-530 22 27 34 40
16 to ≤40 255 410-530 22 27 34 40
40 to ≤60 245 410-530 22 27 34 40
60 to ≤100 215 410-530 22 27 34 40
100 to ≤150 200 400-530 22 27 34 40
150 to ≤250 185 390-530 22 27 34 40

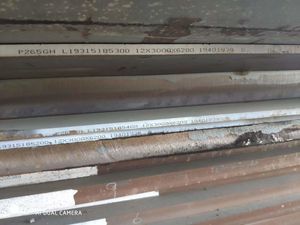

EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications 0 EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications 1 EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications 2 EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications 3 EN10028-2 P265GH Hot Rolled Boiler Steel Plate for Pressure Vessel Applications 4
We are specialized P265GH Steel suppliers and also provide other boiler steel grades including P295GH, P355GH, P355NH, P275NL2, P355NL1, and P355NL2. Contact us for pricing and availability information.
