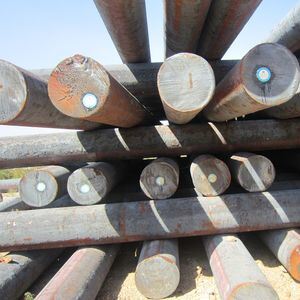

EN 1.8550 (34CrAlNi7-10) Nitriding Steel Round Bar Hot Rolled with 10 - 350mm Diameter in Stock
Product Details
| Model NO. | EN 1.8550 / 34CrAlNi7-10 | Technique | Hot Rolled |
|---|---|---|---|
| Shape | Bar | Surface Treatment | Black |
| Length | 6m Or Custom Cutting Any Length | Diameter Range | 10 - 350mm |
| Standard Diameter | 10,12,15,18,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,95,100,105,110,120,130,140,150,160,180,200,210,220,230,250,270,300 | Melting Temperature | Moderately Low |
| Electrical Conductivity | Moderately High | Thermal Conductivity | Moderately Low |
| Softening Annealing Temp | 650 - 700 ºC | Hardening Temp | 870 - 930 ºC |
| Tempering Temp | 580 - 700ºC | Nitriding Temp | 480 - 570ºC |
| Production Capacity | 500 Ton Per Month | ||
| Highlight | EN 1.8550 Nitriding Steel Round Bar,Hot Rolled Alloy Steel Round Bar,10 - 350mm Diameter EN 1.8550 Steel Bar |
||
Product Description
EN 1.8550 (34CrAlNi7-10) Nitriding Steel Rod / Round Bar
Available in diameters from 10mm to 350mm, ready for immediate delivery
Product Specifications
| Product Name | EN 1.8550 (34CrAlNi7-10) Alloy Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m standard or custom cutting as requested |
| Type | Hot Rolled |
| Brand | BAOSTEEL, DELTA, DONGBEI, HUAXI, SHAGANG, etc. |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | Steel wire rope packaging |
| Delivery Time | 5-7 days for stock materials |
| Other Available Grades | Q195, Q235, 10#, 20#, 35#, 45#, Q215, Q345, 12Cr1Mov, 15CrMo, 304, 316, 20Cr, 40Cr, 20CrMo, 35CrMo, 42CrMo, 40CrNiMo, GCr15, 65Mn, 50Mn, 50Cr, 3Cr2W8V, 20CrMnTi, 5CrMnMo |
| Standards | ASTM, GB, EN, DIN |
| Application | Structure and Industrial |
Standard Stock Sizes
10, 12, 15, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 120, 130, 140, 150, 160, 180, 200, 210, 220, 230, 250, 270, 300mm
Material Description
EN 1.8550 steel is an alloy steel formulated for primary forming into wrought products, with cited properties appropriate for the quenched and tempered condition. 1.8550 is the EN numeric designation, while 34CrAlNi7-10 is the EN chemical designation.
This material features a moderately low melting temperature among EN wrought alloy steels, along with moderately high electrical conductivity and moderately low thermal conductivity.
EN 1.8550 is engineered for elevated temperature applications requiring high sliding properties, corrosion resistance, temperature resistance, abrasion resistance, and fatigue resistance. This nickel and aluminum-enhanced steel is widely used in energy, machinery, and automotive industries for large cross-section elements in heat-treated conditions.
Typical applications include screws, rods, cylinders, pistons, gears, extruders, and rings where welding is not required.
Heat Treatment Process
- Softening annealing: 650-700°C
- Hardening: 870-930°C for minimum 30 minutes with water or oil cooling
- Tempering: 580-700°C for minimum 700 hours
- Nitriding: 480-570°C
Forming Options
- Hot rolling process
- Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging
Heat Treatment Options
- +A: Annealed (full/soft/spheroidizing)
- +N: Normalized
- +NT: Normalized and tempered
- +QT: Quenched and tempered (water/oil)
Surface Options
- Black Surface
- Grounded: Bright but rough; Not precision
- Machining for plate: Bright and precision; Little turning scar
- Peeled/Turned: Bright and precision; Little turning scar
- Polished: Very bright and precision size; No turning scar
Additional Services
- Cutting: Small pieces
- CNC Machining: Production according to your drawings
- Packaging: Bare/Nylon/Canvas/Wooden
- Payment: T/T, L/C, O/A (credit request)
- Transport: FOB/CFR/CIF/DDU/DDP (train/ship/air)
Quality Certification
EN 10204/3.1 mill test certificate with all relevant data regarding chemical composition, mechanical properties, and testing results.
