S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe

  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
  • S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe
Minimum Order Quantity 50 Tons
Price US $750-1,250 / Ton
Product Details
Section Shape Square Size Range 15*15-600*600mm
Thickness Range 1.0-30mm Material Grades Q195, Q215, Q235, Q345
Surface Treatment Black Or Bright, Painted Or Oiled Yield Strength 355 N/mm2 (≤16mm)
Tensile Strength 510-680 N/mm2 (d<3mm) Elongation 22% (3≤d≤40mm)
Carbon Content ≤0.24% (S355JR) Silicon Content ≤0.55%
Manganese Content ≤1.60% Phosphorus Content ≤0.035% (S355JR)
Sulfur Content ≤0.035% (S355JR) Copper Content ≤0.55%
Production Capacity 500,000 Kgs
Highlight

S355JR Square Steel Pipe

,

Black Surface Hollow Steel Pipe

,

30*30-300*300 Welded Steel Pipe
Leave a Message
Product Description
Steel Pipe Standards EN10210 EN10219 AS1163 MS SHS 15×15-600×600mm Thickness 1.0-30mm
Square Pipe Hollow Black Iron S275JR Welded Square Steel Pipe S275JR Welded Steel Pipe
Product Specifications
Item Specification (mm) Size Thickness Length
Round Pipe OD310mm - 1000mm 4mm - 30mm Any length
Square Pipe 10mm×10mm - 1000mm×1000mm 1.2mm - 30.0mm
Rectangle Pipe 20mm×40mm - 400mm×700mm 1.2mm - 30.0mm
L/T/Z Window Section 28mm/38mm 0.5mm - 1.5mm
Product Details
Material: Q195, Q215, Q235, Q345, etc.
Surface: Black or bright, painted or oiled
Packing: Export standard packing (bundles, seaworthy package, shipped in container)
Delivery Port: Shanghai, China
Lead Time: Within 30 days after receiving the original L/C or deposit
MOQ: 10 Tons per size
Production Capacity: 10,000MT per month
Main Markets: Europe, America, Africa, Southeast Asia
Applications
Widely used in structural applications, motorbike and automobile manufacturing, ornamental uses, medical equipment, sports equipment, and home furniture.
EN 10025 S355 Steel
S355 steel is a European standard structural steel grade according to EN 10025-2:2004, offering superior properties compared to S235 and S275 steels in yield strength and tensile strength.
S355 Steel Quality Grades
  • S355JR (1.0045)
  • S355J0 (1.0553)
  • S355J2 (1.0577)
  • S355K2 (1.0596)
Steel Grade Designation Meaning
  • S: Structural steel
  • 355: Minimum yield strength value for flat and long steel thickness ≤ 16mm
  • JR: Minimum impact energy value of 27 J at room temperature (20°C)
  • J0: Minimum impact energy value of 27 J at 0°C
  • J2: Minimum impact energy value of 27 J at -20°C
  • K2: Minimum impact energy value of 40 J at -20°C
Technical Data Sheets
Chemical Composition
Standard Steel Grade C Si Mn P S Cu N Method of Deoxidation
EN 10025-2 S355 S355JR 0.24 0.55 1.60 0.035 0.035 0.55 0.012 Rimmed steel not allowed
S355J0 (S355JO) 0.20 0.55 1.60 0.030 0.030 0.55 0.012
S355J2 0.20 0.55 1.60 0.025 0.025 0.55 - Fully killed
S355K2 0.20 0.55 1.60 0.025 0.025 0.55 - Fully killed
Mechanical Properties - Yield Strength
Steel Grade d ≤ 16mm 16 < d ≤ 40mm 40 < d ≤ 63mm 63 < d ≤ 80mm 80 < d ≤ 100mm 100 < d ≤ 150mm 150 < d ≤ 200mm 200 < d ≤ 250mm
S355JR (1.0045) 355 345 335 325 315 295 285 275
Mechanical Properties - Tensile Strength
Steel Grade d < 3mm 3 ≤ d ≤ 100mm 100 < d ≤ 250mm
S355JR 510-680 470-630 450-600
Mechanical Properties - Elongation
Steel Grade 3 ≤ d ≤ 40mm 40 < d ≤ 63mm 63 < d ≤ 100mm 100 < d ≤ 150mm 150 < d ≤ 250mm
S355JR 22 21 20 18 17
S355K2 20 19 18 18 17

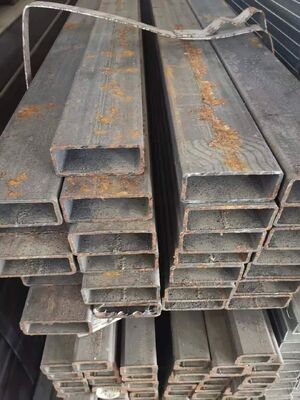

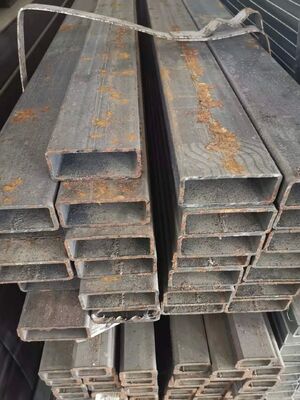

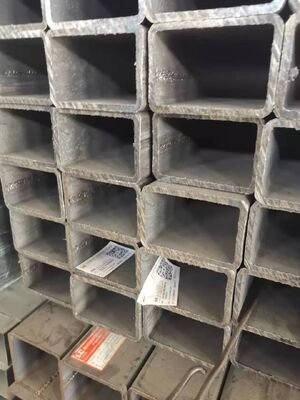

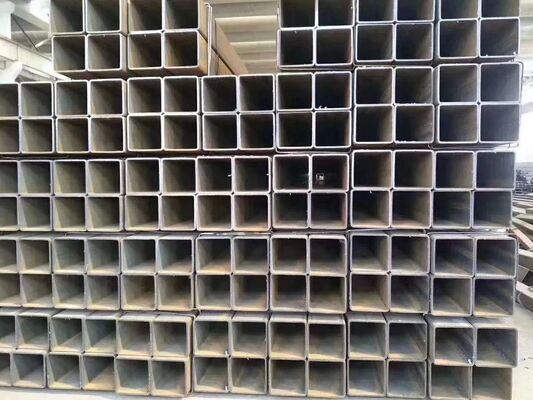

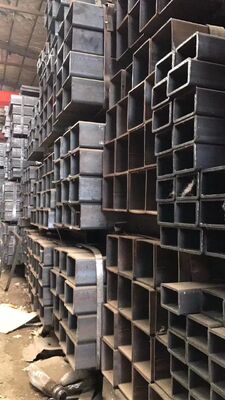

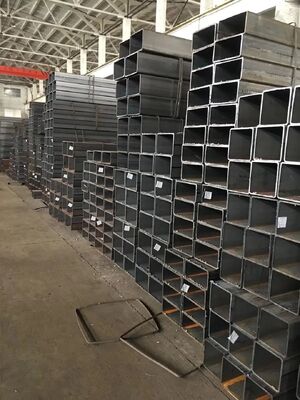

Product Images
S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe 0 S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe 1 S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe 2 S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe 3 S355JR Black Surface Square Steel Pipe 30*30-300*300 Hollow Welded Steel Pipe 4
Welcome every old and new customer to come to negotiate and communicate with us.
