ASTM GB EN DIN Standard 304/304L/304H Stainless Steel Pipe with OD 6-630mm
Product Details
| Model Number | 304 / 304L / 304H | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Diameter Range | OD 6-630mm | Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 |
| Length | 6m/pc | Standard | ASTM DIN EN GB |
| Main Grades | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 | Tensile Strength | 515 MPa (304/304H), 485 MPa (304L) |
| Yield Strength | 205 MPa (304/304H), 170 MPa (304L) | Elongation | 40% |
| Hardness | Rockwell B 92 Max, Brinell HB 201 Max | Chromium Content | 18.0-20.0% |
| Nickel Content | 8.0-10.5% (304/304H), 8.0-12.0% (304L) | ||
| Highlight | ASTM GB EN DIN Standard Stainless Steel Pipe,304/304L/304H Grade Stainless Steel Tube,OD 6-630mm SS Pipe |
||
Product Description
ASTM GB EN DIN Standard 304/304L/304H Stainless Steel Pipe
Product Specifications
| Product Name | 304 Stainless Steel Pipe |
|---|---|
| Type | Seamless Pipe / Welded Pipe |
| Shape | Round |
| Diameter | OD6 - 630mm |
| Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 or custom as request |
| Length | 6m/pc or custom cutting as request |
| Standard | ASTM DIN EN GB |
| Main Grades | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 etc. |
| Company Type | Storage and Factory |
| Service | Cutting Polishing |
Material Description
About 304/304L Stainless Steel
AISI 304 stainless steel (UNS S30400) is the most widely used stainless steel, containing 18-20% Cr and 8-10.5% Ni, and also known as 18-8 stainless steel. SS 304 is non-magnetic under annealing conditions, but may become weakly magnetic after cold working processes such as stamping, stretching, bending, or rolling. Type 304 offers excellent resistance to atmospheric corrosion and oxidation. The high nickel-chromium alloy content provides superior corrosion resistance, making it widely used in the food industry as a standard food grade stainless steel.
Variants of 304 grade stainless steel include the ultra-low-carbon 304L, nitrogen-containing 304N, 304H with improved creep performance, and type 302 with higher carbon content. Compared to AISI 304, 316 grade stainless steel features reduced chromium content, increased nickel content, and the addition of 2-3% molybdenum. This molybdenum addition enhances resistance to pitting and crevice corrosion caused by chlorides, making 316 SS ideal for marine applications.
Chemical Composition of 304 Stainless Steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 304 | - / 0.08 | - / 2.0 | - / 0.75 | - / 0.045 | - / 0.030 | 18.0 / 20.0 | - | 8.0 / 10.5 | - / 0.10 |
| 304L | - / 0.030 | - / 2.0 | - / 0.75 | - / 0.045 | - / 0.030 | 18.0 / 20.0 | - | 8.0 / 12.0 | - / 0.10 |
| 304H | 0.04 / 0.10 | - / 2.0 | - / 0.75 | - / 0.045 | - / 0.030 | 18.0 / 20.0 | - | 8.0 / 10.5 | - / 0.10 |
Mechanical Properties of 304 Stainless Steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Rockwell B (HR B) max | Brinell (HB) max |
|---|---|---|---|---|---|
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |

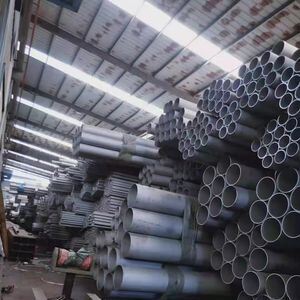

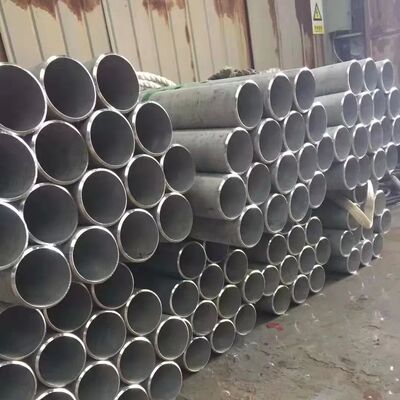

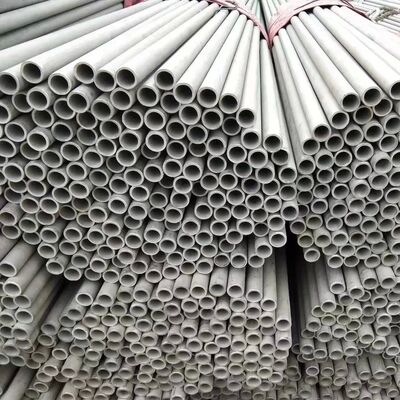

Product Images
Company Information
Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated just 100 kilometers from Shanghai port, we benefit from convenient transportation access.
We specialize in the sales and production of high-temperature (nickel base) alloys, austenitic, duplex steel, urea grade stainless steel, super stainless steel, and other series of steel tubes, coils, pipe fittings, flanges, and related products.
Our production capabilities include an annual output of 25,000 tons of stainless steel seamless pipe, 20,000 tons of welded pipe, and 5,000 tons of pipe fittings. We manufacture according to GB, ASTM, JIS, DIN and other standards, producing φ6-φ762×0.5-70mm stainless steel seamless pipes, φ15-φ2200×0.5-80mm stainless steel welded pipes, and pipe fittings.
Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more. With modern technology and equipment, we continuously advance our processes to ensure rising product quality and maintain our position as one of the most competitive enterprises in the industry.
