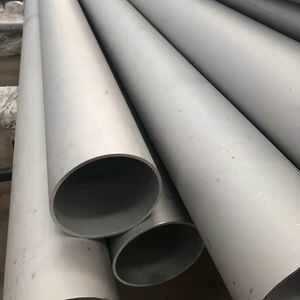

Cold-Drawing Polished ASTM A312 Standard 316L Stainless Steel Seamless Pipe
Product Details
| Model NO. | 316L | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Specification | OD 6-630mm | Diameter | OD6 - 630mm |
| Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 | Length | 6m/pc |
| Mainly Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 | Carbon Content | ≤0.03 |
| Tensile Strength | 485 MPa | Yield Strength | 170 MPa |
| Elongation | 40% | Brinell Hardness | 217 HB |
| Rockwell Hardness | 95 HRB | ||
| Highlight | Cold-Drawing Stainless Steel Pipe,Polished Seamless Pipe,ASTM A312 Standard 316L Stainless Steel Pipe |
||
Product Description
Industry Use Stainless Steel Seamless Pipe TP316 TP316L ASTM A312 Standard
Product Specifications
| Products Name | 316L Stainless Steel Pipe |
|---|---|
| Type | Seamless Pipe / Welded Pipe |
| Shape | Round |
| Diameter | OD6 - 630mm |
| Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 or custom as request |
| Length | 6m/pc or custom cutting as request |
| Standard | ASTM DIN EN GB |
| Mainly Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 etc. |
| Company Type | Storage and Factory |
| Service | Cutting Polishing |
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L
316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum content, the overall performance of this steel is better than 310 and 304 stainless steel.
316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, which makes it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Comparison
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties Comparison
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB) max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |
Product Photos
About Our Company
Our company is a professional stainless steel seamless tube manufacturing enterprise located in China's stainless steel material distribution center - Wuxi city, just 100 kilometers from Shanghai port for convenient transportation.
We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.
Our production capacity includes:
- Annual output of 25,000 tons of stainless steel seamless pipe production line
- 20,000 tons of welded pipe production line
- 5,000 tons of pipe fittings production line
We produce according to GB, ASTM, JIS, DIN and other standards:
- Stainless steel seamless pipe: φ6 ~ φ762×0.5 ~ 70mm
- Stainless steel welded pipe: φ15 ~ φ2200×0.5 ~ 80mm
- Pipe fittings and other products
Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.
With modern technology and equipment, advanced foreign technology, and continuous improvement, our product quality steadily rises, making us one of the most competitive enterprises in the industry.
