A312 Seamless Stainless Steel Pipe Grade 316L with Annealing Pickling and Cold-Drawing for Construction Industry OD 6-630mm
Product Details
| Model NO. | 316L | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Outer Diameter | OD 6-630mm | Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 |
| Length | 6m/pc | Standard | ASTM DIN EN GB |
| Main Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 | Carbon Content | ≤0.03 |
| Tensile Strength | 485 MPa Min | Yield Strength | 170 MPa Min |
| Elongation | 40% Min | Brinell Hardness | 217 Max |
| Rockwell Hardness | 95 Max | ||
| Highlight | Annealing Pickling Stainless Steel Pipe,OD 6-630mm Seamless Stainless Steel Pipe,Cold-Drawing 316L Stainless Steel Pipe |
||
Product Description
A312 Seamless Stainless Steel Round Pipe Grade 316L
Annealing pickling stainless steel pipes specifically designed for construction industry applications, available in seamless and welded configurations.
Product Specifications
Product Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5, SCH10, SCH40, SCH80, SCH160 or custom as requested
Length: 6m/pc or custom cutting as requested
Standard: ASTM, DIN, EN, GB
Main Grades: 304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, etc.
Company Type: Storage and Factory
Service: Cutting, Polishing
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel, immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). The austenitic structure provides excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L
Both 316 and 316L stainless steels are molybdenum-containing alloys. 316L stainless steel has slightly higher molybdenum content and a maximum carbon content of 0.03%, making it suitable for applications that cannot be annealed after welding and require maximum corrosion resistance. 316 stainless steel offers good resistance to chloride attack, making it ideal for marine environments.
Chemical Composition Comparison
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties Comparison
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB) max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |

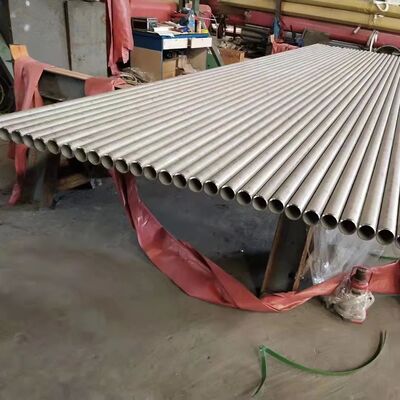

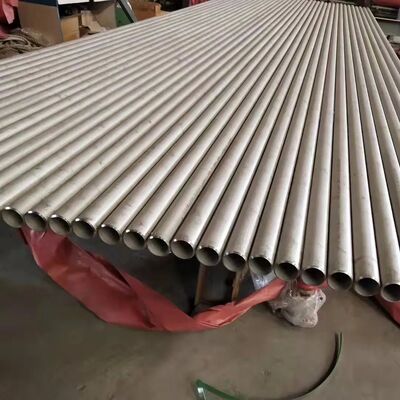

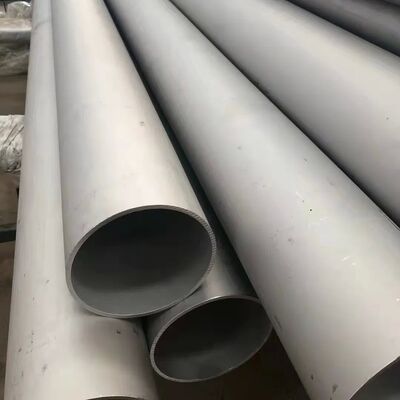

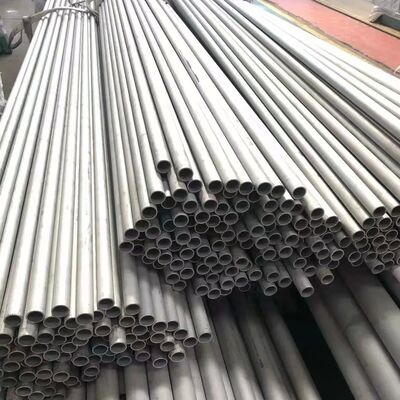

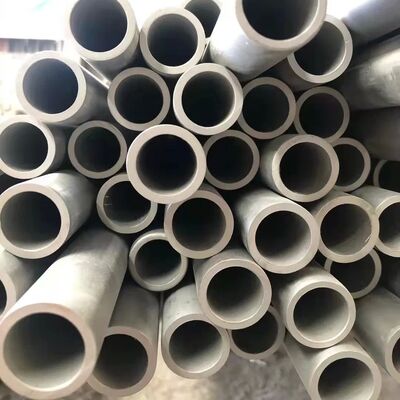

Product Gallery
About Our Company
We are professional stainless steel seamless tube manufacturing enterprises located in Wuxi city, China's stainless steel material distribution center. Our strategic location provides convenient transportation, situated just 100 kilometers from Shanghai port.
We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.
Our production capabilities include an annual output of 25,000 tons of stainless steel seamless pipe production line, 20,000 tons of welded pipe production line, and 5,000 tons of pipe fittings production line. We manufacture according to GB, ASTM, JIS, DIN and other standards, producing φ6~φ762×0.5~70mm stainless steel seamless pipes, φ15~φ2200×0.5~80mm stainless steel welded pipes, and pipe fittings.
Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more. Our modern technology and equipment, combined with foreign advanced technology, ensure continuously improving product quality and competitive positioning in the industry.
Contact Information
Please contact us for more information about our A312 seamless stainless steel round pipes and other stainless steel products.
