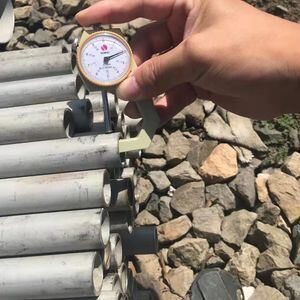

Custom Cutting 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface
Product Details
| Shape | Round | Technique | Cold-Drawing |
|---|---|---|---|
| Surface Treatment | Polished | Outer Diameter | OD6 - 630mm |
| Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom | Length | 6m/pc Or Custom |
| Material Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 | Carbon Content | ≤0.03 |
| Silicon Content | ≤1.00 | Manganese Content | ≤2.00 |
| Phosphorus Content | ≤0.045 | Sulfur Content | ≤0.03 |
| Nickel Content | 10.0~14.0 | Chromium Content | 16.0~18.0 |
| Molybdenum Content | 2.00~3.00 | ||
| Highlight | Custom Cutting 316L Stainless Steel Pipe,Cold-Drawing Technique SS Pipe,Polished Surface Seamless Pipe |
||
Product Description
Custom Cutting 316L Stainless Steel Pipe
Precision-cut 316L stainless steel pipes available in any required length, offering superior corrosion resistance and mechanical properties for demanding industrial applications.
Product Type
Seamless Pipe / Welded Pipe
Shape
Round
Diameter Range
OD6 - 630mm
Wall Thickness
SCH5, SCH10, SCH40, SCH80, SCH160 or custom
Standard Length
6m per piece or custom cutting
Standards
ASTM, DIN, EN, GB
Available Grades
304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, and other specialized grades.
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel, providing immunity from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over approximately 6mm). The austenitic structure gives these grades excellent toughness, even at cryogenic temperatures.
316 vs 316L Comparison
Both 316 and 316L stainless steels are molybdenum-containing alloys with 316L having slightly higher molybdenum content. This enhanced composition provides superior overall performance compared to 310 and 304 stainless steels. 316L stainless steel features a maximum carbon content of 0.03%, making it ideal for applications requiring maximum corrosion resistance where post-weld annealing is not possible.
Chemical Composition Comparison
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties Comparison
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB) max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |
Product Gallery
Company Overview
Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Strategically positioned just 100 kilometers from Shanghai port, we benefit from convenient transportation access.
We specialize in the sales and production of high-temperature (nickel base) alloys, austenitic steels, duplex steels, urea grade stainless steel, super stainless steel, and other specialized steel products including tubes, coils, pipe fittings, and flanges.
Production Capabilities
- Annual output of 25,000 tons of stainless steel seamless pipe production line
- 20,000 tons of welded pipe production line
- 5,000 tons of pipe fittings production line
- Production range: φ6 ~ φ762×0.5 ~ 70mm stainless steel seamless pipe
- Production range: φ15 ~ φ2200×0.5 ~ 80mm stainless steel welded pipe
Our manufacturing processes adhere to GB, ASTM, JIS, DIN and other international standards, ensuring consistent quality and performance across all our products.
