ASTM EN DIN GB 316L Cold-Drawing Polished Stainless Steel Pipe with OD 6-630mm

Certification	AISI, ASTM
Minimum Order Quantity	50 kg
Price	US $3.76-5.66 / kg

Product Details

Model NO.	316L	Shape	Round
Technique	Cold-Drawing	Surface Treatment	Polished
Specification	OD 6-630mm	Type	Seamless Pipe / Welded Pipe
Diameter	OD6 - 630mm	Wall Thickness	SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom
Length	6m/pc Or Custom	Main Grade	304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276
Carbon Content	≤0.03	Tensile Strength	485 MPa Min
Yield Strength	170 MPa Min	Elongation	40% Min
Brinell Hardness	217 HB Max
Highlight	Cold-Drawing Stainless Steel Pipe , Polished 316L Stainless Steel Pipe , OD 6-630mm Stainless Steel Tube

Leave a Message

Product Description

ASTM EN DIN GB 316L Stainless Steel Pipe

Product Name: 316L Stainless Steel Pipe

Type: Seamless Pipe / Welded Pipe

Shape: Round

Diameter: OD6 - 630mm

Wall Thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom as requested

Length: 6m/pc or custom cutting as requested

Standard: ASTM DIN EN GB

Main Grades: 304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, etc.

Company Type: Storage and Factory

Service: Cutting, Polishing

About 316L Stainless Steel

Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Difference Between 316 and 316L Stainless Steel

316 and 316L stainless steels are molybdenum-containing stainless steels. The molybdenum content in 316L stainless steel is slightly higher than that of 316 stainless steel. Due to the molybdenum content, the overall performance of this steel is better than 310 and 304 stainless steel. 316 stainless steel has excellent resistance to chloride attack, making it ideal for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, making it suitable for applications that cannot be annealed after welding and require maximum corrosion resistance.

Chemical Composition Comparison

Material	C	Si	Mn	P	S	Ni	Cr	Mo	N
316	≤0.08	≤1.00	≤2.00	≤0.035	≤0.03	10.0~14.0	16.0~18.5	2.00~3.00	≤0.10
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	10.0~14.0	16.0~18.0	2.00~3.00	≤0.10

Mechanical Properties Comparison

Grade	UNS	Tensile Strength (MPa) min	Yield Strength (MPa) min	Elongation (%) min	Brinell Hardness (HB) max	Rockwell Hardness (HRB) max
316	S31600	515	205	40	217	95
316L	S31603	485	170	40	217	95

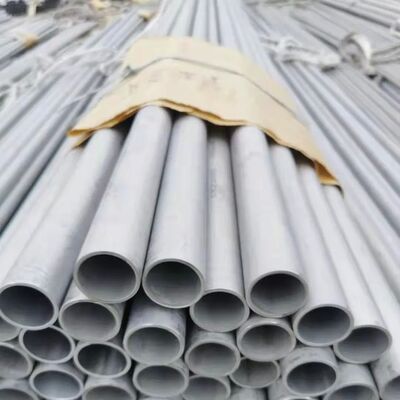

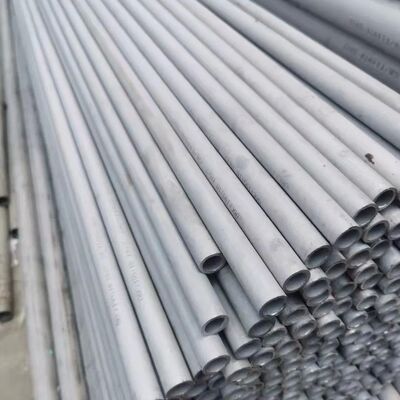

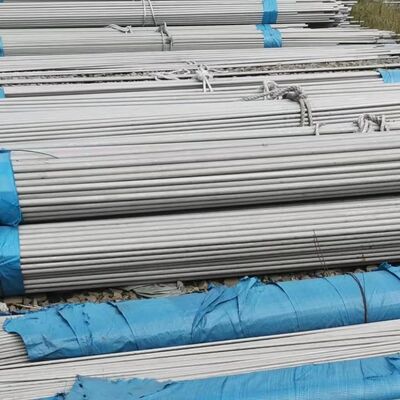

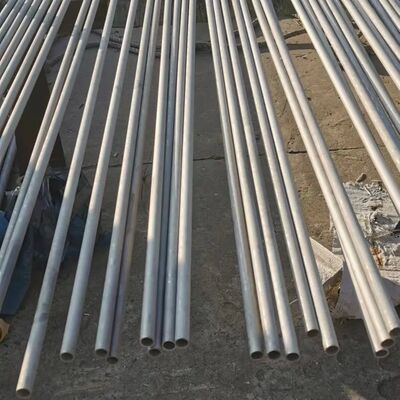

Product Photos

About Our Company

Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated 100 kilometers from Shanghai port, we benefit from convenient transportation. We specialize in the sales and production of high-temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.

Our production capabilities include:

Annual output of 25,000 tons of stainless steel seamless pipe production line
20,000 tons of welded pipe production line
5,000 tons of pipe fittings production line

We produce according to GB, ASTM, JIS, DIN and other standards:

Stainless steel seamless pipe: φ6 ~ φ762×0.5 ~ 70mm
Stainless steel welded pipe: φ15 ~ φ2200×0.5 ~ 80mm
Pipe fittings and other products

Main grades include: TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.

With modern technology and equipment, and the introduction of foreign advanced technology, we continuously strive for excellence. Our product quality steadily improves, making us one of the most competitive enterprises in the industry.

For more information about our 316L Stainless Steel Pipes and other products, please contact our sales team.
