6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting

  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
  • 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting
Certification AISI, ASTM
Minimum Order Quantity 50 kg
Price US $3.64-5.54 / kg
Product Details
Model NO. 316L Shape Round
Technique Cold-Drawing Surface Treatment Polished
Specification OD 6-630mm Diameter OD6 - 630mm
Wall Thickness SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom Length 6m/pc Or Custom
Main Grade 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 Carbon Content ≤0.03
Molybdenum Content 2.00~3.00 Tensile Strength 485 MPa Min
Yield Strength 170 MPa Min Elongation 40% Min
Brinell Hardness 217 HB Max
Highlight

6m Length Stainless Steel Pipe

,

ASTM A312 Seamless Pipe

,

Custom Cutting 316L Stainless Steel Pipe
Leave a Message
Product Description
6m Length ASTM A312 316L 1.4404 Stainless Steel Seamless Pipe Custom Cutting
High-quality 316L stainless steel seamless pipes available in custom lengths with precision cutting services. These pipes feature excellent corrosion resistance and mechanical properties suitable for demanding industrial applications.
Product Specifications
Product Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom as requested
Length: 6m/pc or custom cutting as requested
Standard: ASTM DIN EN GB
Main Grades: 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276, etc.
Company Type: Storage and Factory
Service: Cutting Polishing
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L
316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum content, the overall performance of this steel is better than 310 and 304 stainless steel.
316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, which makes it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Comparison
Material C Si Mn P S Ni Cr Mo N
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 10.0~14.0 16.0~18.5 2.00~3.00 ≤0.10
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10
Mechanical Properties Comparison
Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB) max
316 S31600 515 205 40 217 95
316L S31603 485 170 40 217 95

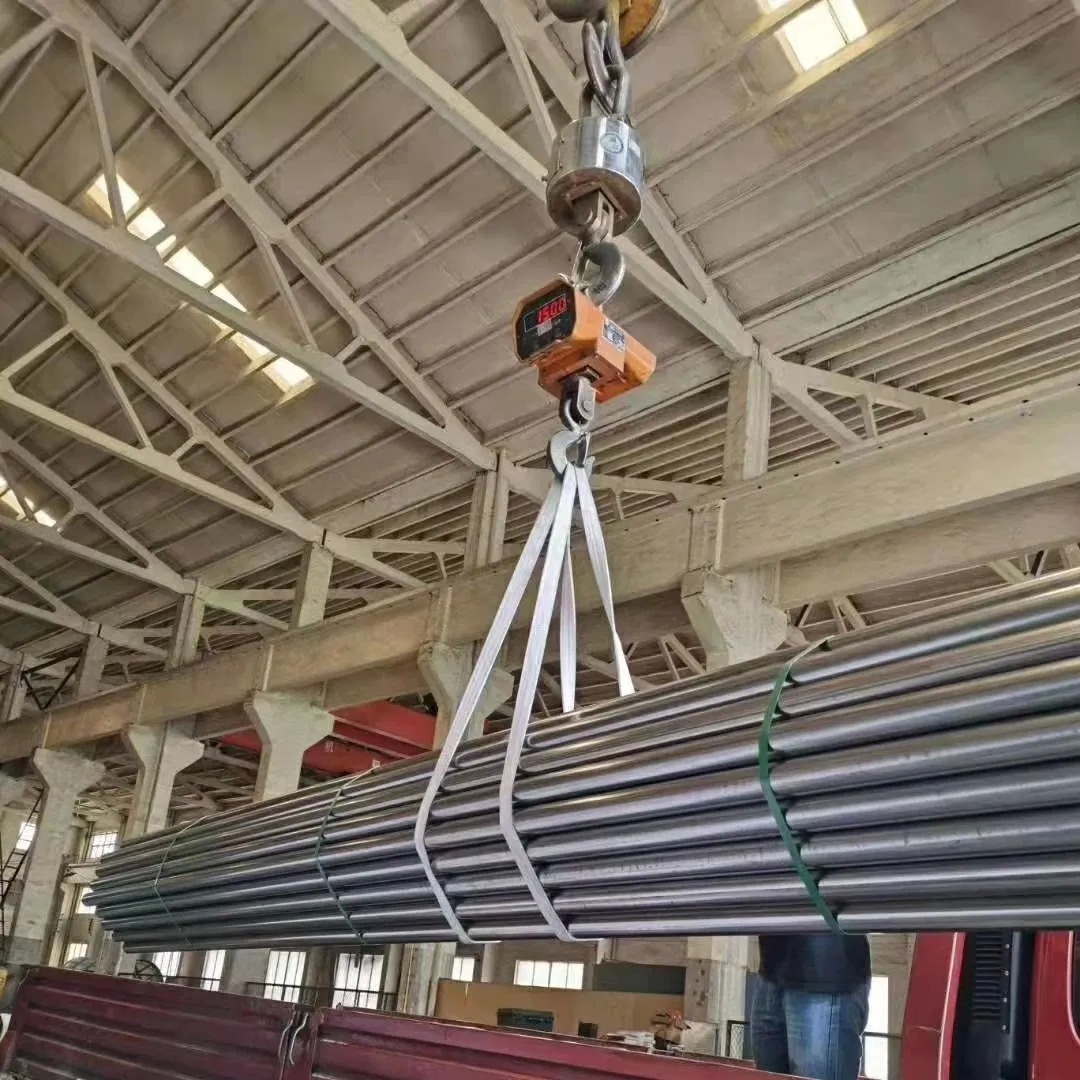

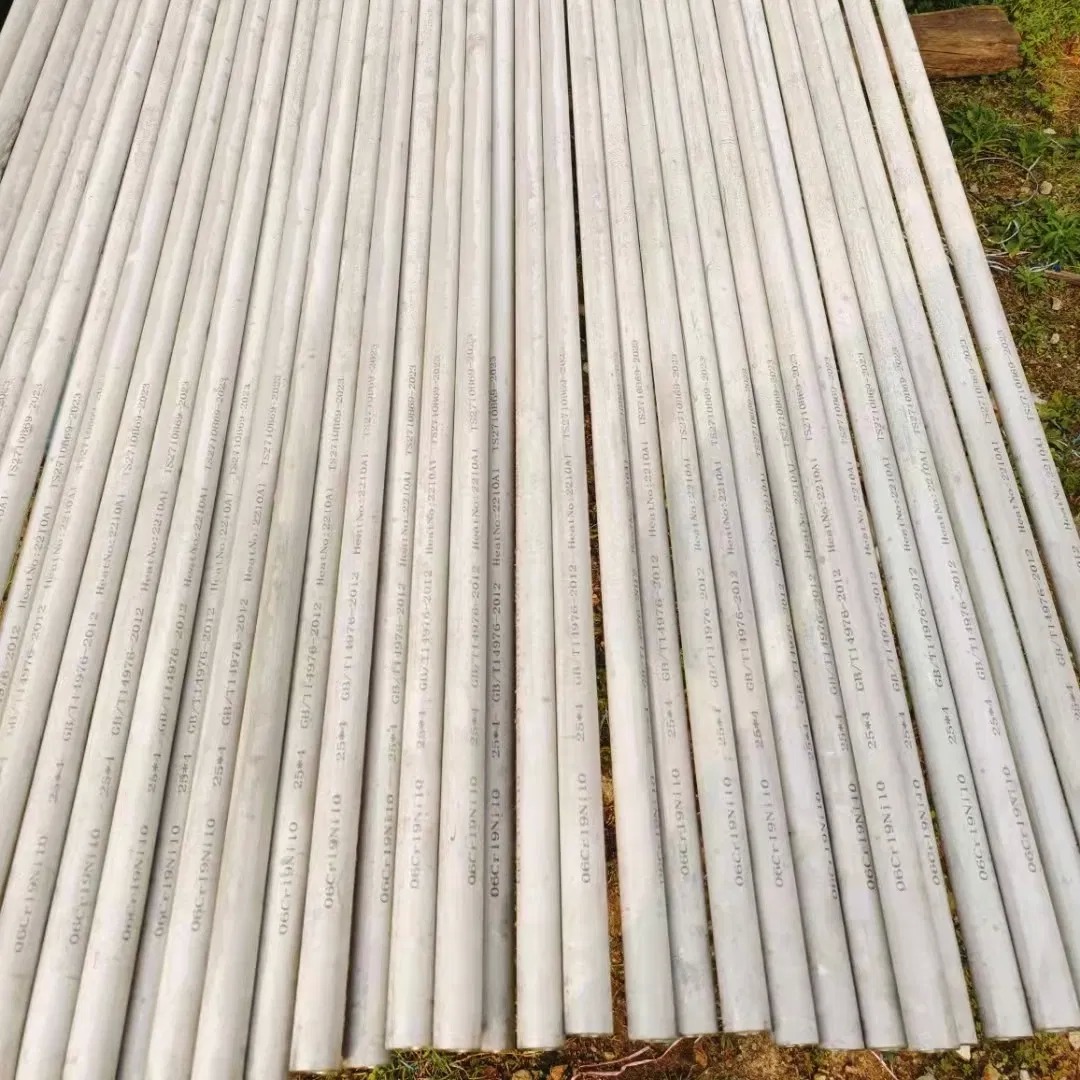

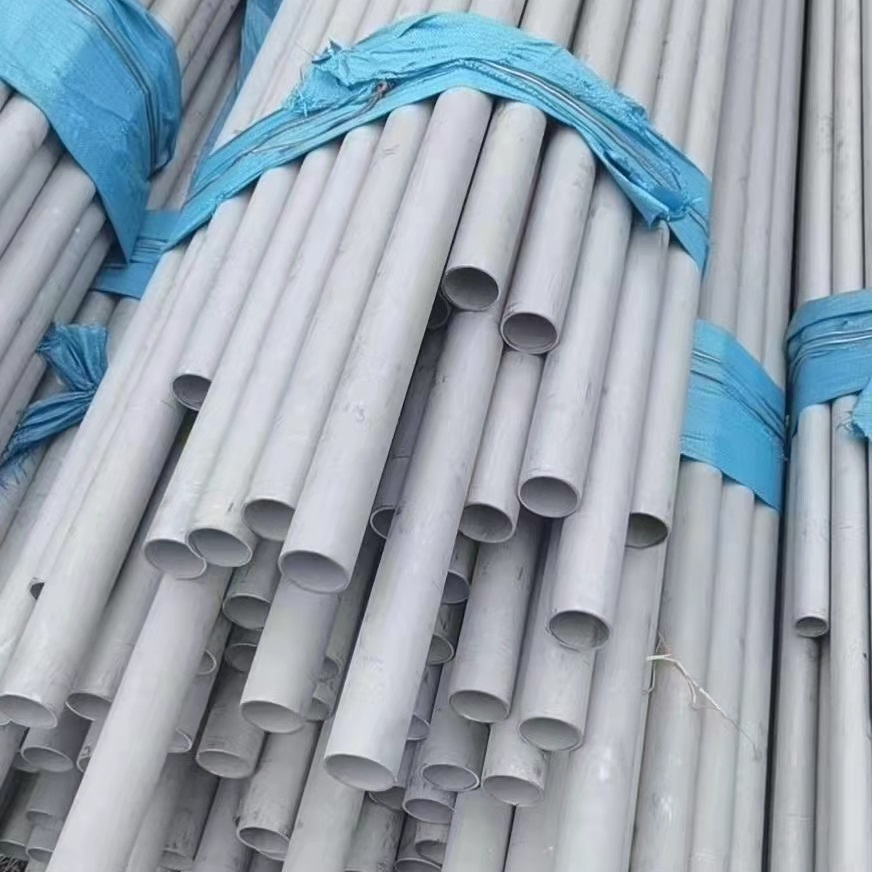

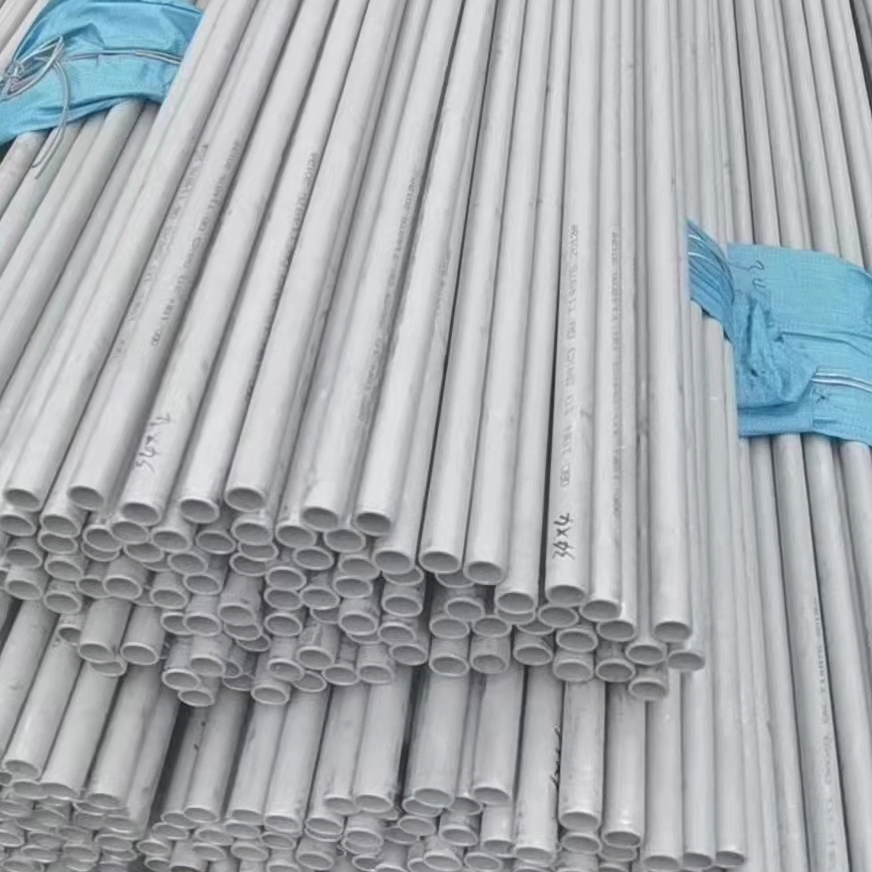

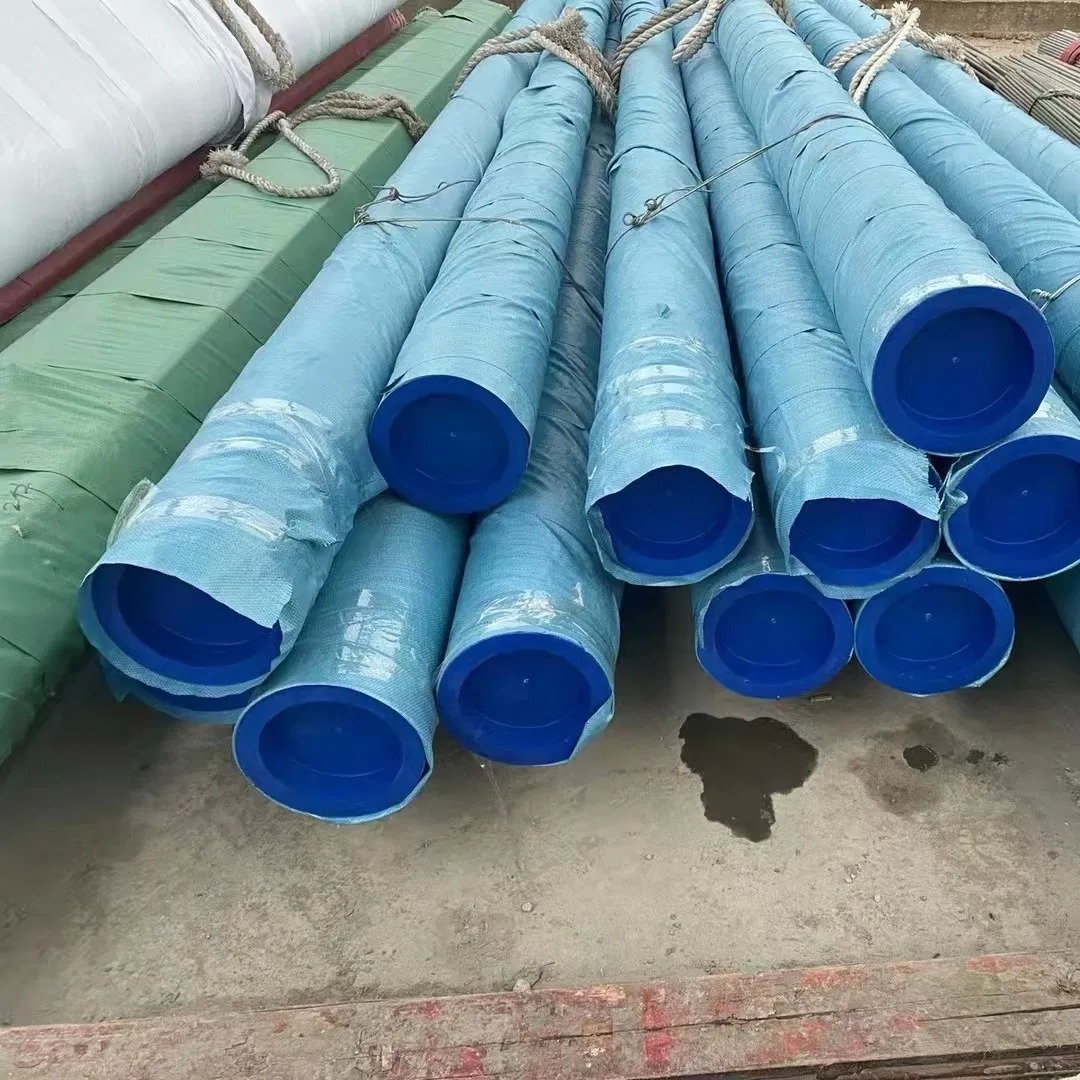

Product Gallery
6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting 0 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting 1 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting 2 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting 3 6m Length ASTM A312 316L Stainless Steel Seamless Pipe with Custom Cutting 4
About Our Company
Our company is a professional stainless steel seamless tube manufacturing enterprise located in China's stainless steel material distribution center - Wuxi city, conveniently situated 100 kilometers from Shanghai port.
We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.
Our production capabilities include an annual output of 25,000 tons of stainless steel seamless pipe production line, 20,000 tons of welded pipe production line, and 5,000 tons of pipe fittings production line. We produce according to GB, ASTM, JIS, DIN and other standards for sizes ranging from φ6~φ762×0.5~70mm stainless steel seamless pipe and φ15~φ2200×0.5~80mm stainless steel welded pipe.
Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.
With modern technology and equipment, advanced foreign technology integration, and continuous improvement initiatives, our product quality steadily rises, making us one of the most competitive enterprises in the industry.
