Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance

  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
  • Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance
Certification AISI, ASTM
Minimum Order Quantity 50 kg
Price US $3.62-5.52 / kg
Product Details
Material Grade 316L Shape Round
Technique Cold-Drawing Surface Treatment Polished
Outer Diameter 6-630mm Wall Thickness SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom
Length 6m/pc Or Custom Carbon Content ≤0.03
Tensile Strength 485 MPa Min Yield Strength 170 MPa Min
Elongation 40% Min Brinell Hardness 217 Max
Rockwell Hardness 95 Max Production Capacity 500000kgs
Nickel Content 10.0~14.0
Highlight

Cold-Drawing Stainless Steel Seamless Pipe

,

Polished 316L Stainless Steel Pipe

,

Corrosion Resistant Small Diameter Pipe
Leave a Message
Product Description
Small Diameter 316L Stainless Steel Seamless Pipe
Diameter Range: 6×1mm to 114×20mm
Product Specifications
Product Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5, SCH10, SCH40, SCH80, SCH160 or custom as requested
Length: 6m/pc or custom cutting as requested
Standard: ASTM, DIN, EN, GB
Main Grades: 304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, etc.
Company Type: Storage and Factory
Service: Cutting, Polishing
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L Stainless Steel
316 and 316L stainless steels are molybdenum-containing stainless steels. The molybdenum content in 316L stainless steel is slightly higher than that of 316 stainless steel. Due to the molybdenum content, the overall performance of these steels is better than 310 and 304 stainless steel. 316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, making it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Comparison
Material C Si Mn P S Ni Cr Mo N
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 10.0~14.0 16.0~18.5 2.00~3.00 ≤0.10
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10
Mechanical Properties Comparison
Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB) max
316 S31600 515 205 40 217 95
316L S31603 485 170 40 217 95

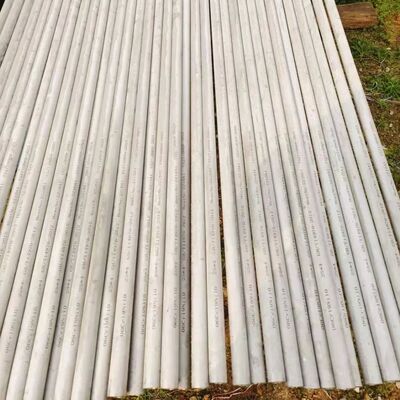

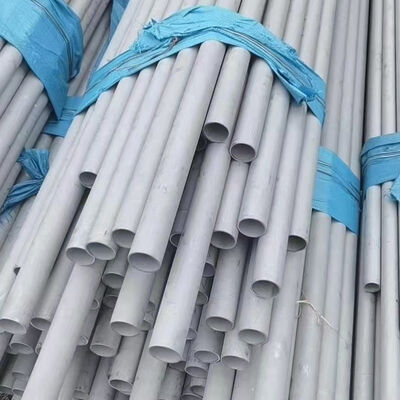

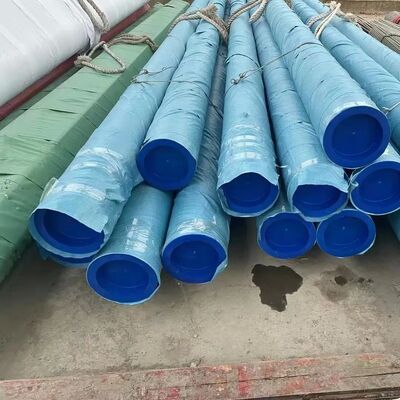

Product Photos
Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 0 Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 1 Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 2 Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 3 Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 4 Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 5
About Our Company
Small Diameter 316L Stainless Steel Seamless Pipe with Cold-Drawing Technique and Polished Surface for Corrosion Resistance 6
Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated 100 kilometers from Shanghai port, we benefit from convenient transportation. We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.
Our production capabilities include an annual output of 25,000 tons of stainless steel seamless pipe production line, 20,000 tons of welded pipe production line, and 5,000 tons of pipe fittings production line. We produce according to GB, ASTM, JIS, DIN and other standards, manufacturing φ6~φ762×0.5~70mm stainless steel seamless pipes, φ15~φ2200×0.5~80mm stainless steel welded pipes, pipe fittings and other products. Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.
With modern technology and equipment, and the introduction of foreign advanced technology, we continuously forge ahead and strive for excellence. Our product quality continues to rise steadily, making us one of the most competitive enterprises in the industry.
Contact Us
For more information about our 316L Stainless Steel Seamless Pipes, please contact our sales team.
