EN 10088 1.4404 316L Stainless Steel Pipe Cold-Drawing Polished OD 6-630mm
Product Details
| Model NO. | 316L | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Diameter | OD6 - 630mm | Wall Thickness | SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom |
| Length | 6m/pc Or Custom | Main Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 |
| Carbon Content | ≤0.03 | Molybdenum Content | 2.00~3.00 |
| Tensile Strength | 485 MPa Min | Yield Strength | 170 MPa Min |
| Elongation | 40% Min | Brinell Hardness | 217 Max |
| Rockwell Hardness | 95 Max | ||
| Highlight | Cold-Drawing Stainless Steel Pipe,Polished 316L Stainless Steel Pipe,OD 6-630mm EN 10088 Stainless Steel Pipe |
||
Product Description
EN 10088 1.4404 / 316L Stainless Steel Pipe Factory
Products Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom
Length: 6m/pc or custom cutting
Standard: ASTM DIN EN GB
Main Grades: 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276
Company Type: Storage and Factory
Service: Cutting Polishing
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is typically no appreciable price difference between 316 and 316L stainless steel. The austenitic structure also provides excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L
Both 316 and 316L stainless steels are molybdenum-containing alloys. 316L stainless steel has a slightly higher molybdenum content than 316 stainless steel. The addition of molybdenum provides better overall performance compared to 310 and 304 stainless steels. 316 stainless steel offers excellent resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, making it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Comparison
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties Comparison
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB) max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |

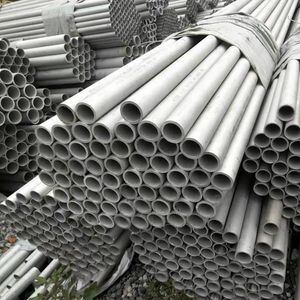

Product Photos
About Our Company
Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated just 100 kilometers from Shanghai port, we benefit from convenient transportation access.
We specialize in the sales and production of high-temperature (nickel base) alloys, austenitic steels, duplex steels, urea grade stainless steel, super stainless steel, and other series of steel tubes, coils, pipe fittings, flanges, and related products.
Production Capacity:
• Annual output of 25,000 tons of stainless steel seamless pipe production line
• 20,000 tons of welded pipe production line
• 5,000 tons of pipe fittings production line
• Annual output of 25,000 tons of stainless steel seamless pipe production line
• 20,000 tons of welded pipe production line
• 5,000 tons of pipe fittings production line
We produce according to GB, ASTM, JIS, DIN and other standards, manufacturing φ6~φ762×0.5~70mm stainless steel seamless pipes, φ15~φ2200×0.5~80mm stainless steel welded pipes, and pipe fittings. Our main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.
With modern technology and equipment, plus the introduction of foreign advanced technology, we continuously strive for excellence. Our commitment to quality has made us one of the most competitive enterprises in the industry.
