TP316 TP316L Cold-Drawing Polished Stainless Steel Seamless Pipe OD 6-630mm

Certification	AISI, ASTM
Minimum Order Quantity	50 kg
Price	US $3.54-5.16 / kg

Product Details

Model NO.	316L	Shape	Round
Technique	Cold-Drawing	Surface Treatment	Polished
Specification	OD 6-630mm	Diameter	OD6 - 630mm
Wall Thickness	SCH5 SCH10 SCH40 SCH80 SCH160 Or Custom	Length	6m/pc Or Custom
Main Grade	304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276	Carbon Content	≤0.03
Molybdenum Content	2.00~3.00	Tensile Strength	485 MPa Min
Yield Strength	170 MPa Min	Elongation	40% Min
Brinell Hardness	217 Max
Highlight	Cold-Drawing Stainless Steel Seamless Pipe , Polished Stainless Steel Tube , OD 6-630mm 316L Stainless Steel Pipe

Leave a Message

Product Description

TP316 TP316L Stainless Steel Seamless Pipe

Product Specifications

Products Name: 316L Stainless Steel Pipe

Type: Seamless Pipe / Welded Pipe

Shape: Round

Diameter: OD6 - 630mm

Wall thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom as request

Length: 6m/pc or custom cutting as request

Standard: ASTM DIN EN GB

Mainly Grade: 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276.etc

Company Type: Storage and Factory

Service: Cutting Polishing

About 316L Stainless Steel

Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Difference Between 316 and 316L

316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum content, the overall performance of this steel is better than 310 and 304 stainless steel. 316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, which makes it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.

Chemical Composition Comparison

Material	C	Si	Mn	P	S	Ni	Cr	Mo	N
316	≤0.08	≤1.00	≤2.00	≤0.035	≤0.03	10.0~14.0	16.0~18.5	2.00~3.00	≤0.10
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	10.0~14.0	16.0~18.0	2.00~3.00	≤0.10

Mechanical Properties Comparison

Grade	UNS	Tensile Strength (MPa) min	Yield Strength (MPa) min	Elongation (%) min	Brinell Hardness (HB) max	Rockwell Hardness (HRB) max
316	S31600	515	205	40	217	95
316L	S31603	485	170	40	217	95

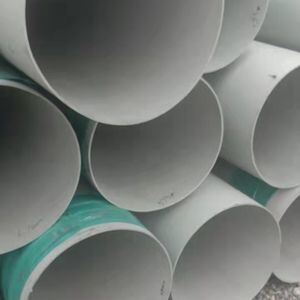

Product Photos

About Our Company

Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated 100 kilometers from Shanghai port, we benefit from convenient transportation. We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.

Our production facilities include an annual output of 25,000 tons of stainless steel seamless pipe production line, 20,000 tons of welded pipe production line, and 5,000 tons of pipe fittings production line. We produce according to GB, ASTM, JIS, DIN and other standards, manufacturing φ6~φ762×0.5~70mm stainless steel seamless pipes, φ15~φ2200×0.5~80mm stainless steel welded pipes, pipe fittings and other products. Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.

With modern technology and equipment, and the introduction of foreign advanced technology, we continuously strive for excellence. Our commitment to quality has made us one of the most competitive enterprises in the industry.
