SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment

  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
  • SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment
Certification AISI, ASTM
Minimum Order Quantity 50 kg
Price US $3.45-6.25 / kg
Product Details
Model NO. 316L Shape Round
Technique Cold-Drawing Surface Treatment Polished
Outer Diameter OD 6-630mm Wall Thickness SCH5 SCH10 SCH40 SCH80 SCH160
Length 6m/pc Standard ASTM DIN EN GB
Main Grade 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276 Carbon Content ≤0.03
Tensile Strength 485 MPa Min Yield Strength 170 MPa Min
Elongation 40% Min Brinell Hardness 217 Max
Rockwell Hardness 95 Max
Highlight

SCH40 SCH80 Stainless Steel Pipe

,

Cold-Drawing Technique 316L Stainless Steel Tube

,

Polished Surface Treatment Seamless Stainless Steel Pipe
Leave a Message
Product Description
316L Stainless Steel Pipe & Tube Products
Product Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom as requested
Length: 6m/pc or custom cutting as requested
Standard: ASTM DIN EN GB
Main Grades: 304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, etc.
Company Type: Storage and Factory
Service: Cutting, Polishing
About 316L Stainless Steel
Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Difference Between 316 and 316L Stainless Steel
316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum content, the overall performance of this steel is better than 310 and 304 stainless steel.
316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, which makes it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Comparison
Material C Si Mn P S Ni Cr Mo N
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 10.0~14.0 16.0~18.5 2.00~3.00 ≤0.10
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10
Mechanical Properties Comparison
Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB) max
316 S31600 515 205 40 217 95
316L S31603 485 170 40 217 95

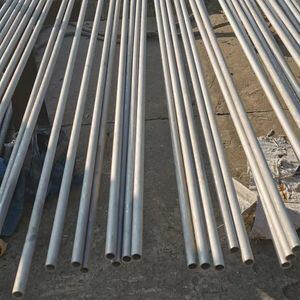

Product Photos
SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 0 SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 1 SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 2 SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 3 SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 4 SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 5
About Our Company
SCH40 SCH80 316L Stainless Steel Pipe with Cold-Drawing Technique and Polished Surface Treatment 6
Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated 100 kilometers from Shanghai port, we benefit from convenient transportation access.
We specialize in sales and production of high temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.
Production Capacity:
• Annual output of 25,000 tons of stainless steel seamless pipe production line
• 20,000 tons of welded pipe production line
• 5,000 tons of pipe fittings production line
We produce according to GB, ASTM, JIS, DIN and other standards:
• Stainless steel seamless pipes: φ6 ~ φ762×0.5 ~ 70mm
• Stainless steel welded pipes: φ15 ~ φ2200×0.5 ~ 80mm
• Pipe fittings and related products
Main grades include: TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.
Our company utilizes modern technology and equipment, incorporating foreign advanced technology to continuously improve and strive for excellence. This commitment ensures our product quality steadily rises, making us one of the most competitive enterprises in the industry.
