SCH5 SCH10 SCH40 Hot Rolled Polished Surface Welded Stainless Steel Pipe 310S
Product Details
| Shape | Round | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Polished | Outer Diameter | OD 6-630mm |
| Material | 300series | Thickness | SCH10 - XXS |
| Diameter Range | DN10 - DN400 | Carbon Content | ≤0.08 |
| Silicon Content | ≤1.00 | Manganese Content | ≤2.00 |
| Nickel Content | 24-26 | Chromium Content | 19.00~21.00 |
| Tensile Strength | 515-1035 Mpa | Yield Strength | ≥205 MPa |
| Hardness | ≤201HBW;≤92HRB;≤210HV | ||
| Highlight | SCH5 SCH10 SCH40 Stainless Steel Pipe,Hot Rolled Welded Stainless Steel Tube,Polished Surface 310S Stainless Steel Pipe |
||
Product Description
SCH5 SCH10 SCH40 Welded Stainless Steel Pipe 310S / 1.4845
High-quality welded stainless steel pipes manufactured from 310S / 1.4845 stainless steel, available in various schedules including SCH5, SCH10, and SCH40.
Product Specifications
| Product Name | 310S Stainless Steel Pipe |
| Material | 300 Series Stainless Steel |
| Technique | Seamless Pipe / Welded Pipe |
| Thickness | SCH10 - XXS |
| Diameter | DN10 - DN400 |
| Surface | Polished and Normal Surface |
| Certifications | ISO/SGS/BV |
| MOQ | 1 Ton |
| Price Term | FOB / CIF / CFR / EXW |
| Payment Term | T/T, L/C (30% deposit by T/T and 70% payment before delivery) |
| Delivery Time | 5-10 days, based on stock and order quantity |
| Sample | Free samples available (customer pays freight) |
| Note | Custom standards available per customer requirements |
Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤0.08 |
| Silicon (Si) | ≤1.00 |
| Manganese (Mn) | ≤2.00 |
| Phosphorus (P) | ≤0.045 |
| Sulfur (S) | ≤0.030 |
| Nickel (Ni) | 24-26 |
| Chromium (Cr) | 19.00-21.00 |
Physical Characteristics
| Hardness | ≤201 HBW; ≤92 HRB; ≤210 HV |
| Tensile Strength (бb) | 515-1035 MPa |
| Yield Strength (σ0.2) | ≥205 MPa |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (min.) | 75 ksi |
| Yield Strength 0.2% Offset (min.) | 30 ksi |
| Elongation % in 50 mm (min.) | 40% |
| Hardness (Brinell) MAX | 217 |
| Hardness (Rockwell B) MAX | 95 |
Corrosion Resistance
- Excellent corrosion resistance properties
- High chromium content provides good aqueous corrosion resistance
- Excellent resistance at normal temperatures with good performance in oxidizing and carburizing atmospheres
Heat Resistance
- Good oxidation resistance in intermittent service up to 1040°C and continuous service up to 1150°C
- Excellent resistance to thermal fatigue and cyclic heating
- Widely used in applications involving sulphur dioxide gas at elevated temperatures
- Generally effective at temperatures starting from 800-900°C, above the effective range of 304H and 321 stainless steels
Applications
- Furnace Parts
- Oil Burner Parts
- Heat Exchangers
- Welding Filler Wire and Electrodes
- Annealing Covers
- Combustion Tubes
- Fire Box Sheets

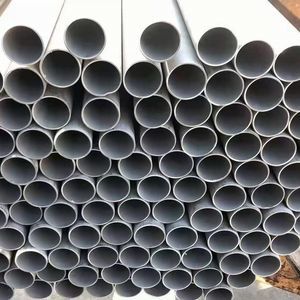

Product Images
About Our Company
We specialize in stainless steel pipes, square pipes, rods, elbows, flanges, and accessories. As a professional supplier of seamless stainless steel tubes, we maintain extensive inventory with approximately 500 tons in stock and annual sales exceeding 6000 tons.
Our products serve various industries including construction, petroleum, medicine, food, paper, machinery, chemical, and tableware manufacturing. Available materials include 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 347, 2205, 2507, 904L, and more.
Specifications range from 6x1mm to 630x30mm with over 350 stock specifications. We also offer custom manufacturing for stainless steel pipes, containers, square tubes, rectangular tubes, polishing pipes, flag poles, non-standard pipes, thick-walled pipes, and alloy pipes.
