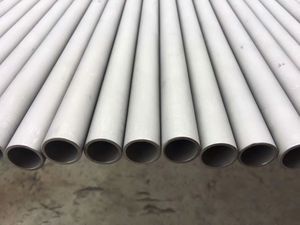

Seamless Hastelloy C22 Nickel Alloy Pipe for Paper Production Industry
Product Details
| Model Number | Hastelloy C22 | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Pickling |
| Outer Diameter | 6-630mm | Production Capacity | 50000kgs |
| Nickel Content | Balance | Chromium Content | 20.0-22.5% |
| Manganese Content | Max 0.50% | Carbon Content | Max 0.015% |
| Molybdenum Content | 12.5-14.5% | Silicon Content | Max 0.08% |
| Iron Content | 2.0-6.0% | Tensile Strength | Min 690 MPa |
| Yield Strength | Min 310 MPa | ||
| Highlight | Seamless Hastelloy C22 Pipe,Hastelloy C22 Nickel Alloy Pipe,Nickel Alloy Pipe for Paper Production |
||
Product Description
Uns Seamless Hastelloy C22 Pipe for Paper Production Industry
HASTELLOY C22 Nickel Alloy Pipe Seamless ASTM B163 / DIN2.4602/B161 N06022
With over 30 years of expertise, we specialize in nickel base alloy steel pipes, fittings, and flanges. Our comprehensive material portfolio includes:
- Hastelloy: C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35
- Monel: 400, 401, 404, R-405, K500
- Inconel: 600, 601, 617, 625, 690, 718, 740, X-750
- Incoloy: 800, 800H, 800HT, 825, 840, 925, 926
- Pure Nickel: Ni-200, Ni-201, Ni-270
- NS Alloy: NS 1101, NS1102, NS1103, NS3105
Our products are exported to more than 55 countries worldwide, demonstrating our global reach and reliability.
Hastelloy C-22 Alloy Characteristics
HASTELLOY Alloy C-22 is a nickel-chromium-molybdenum alloy offering enhanced resistance to pitting, crevice corrosion, and stress corrosion cracking. Its unique properties include:
- Resistance to grain boundary precipitates in weld-heat affected zones
- Suitable for use in as-welded condition
- Outstanding performance in both reducing and oxidizing media
- Excellent reliability during "upset" conditions
- Proven weldability and high corrosion resistance as consumable filler wires and electrodes
- Superior ductility for cold-working applications
Chemical Composition
| Element | Minimum | Maximum |
|---|---|---|
| Ni (Nickel) | Balance | Balance |
| Cr (Chromium) | 20.0% | 22.5% |
| Mn (Manganese) | - | 0.50% |
| C (Carbon) | - | 0.015% |
| Mo (Molybdenum) | 12.5% | 14.5% |
| Si (Silicon) | - | 0.08% |
| Fe (Iron) | 2.0% | 6.0% |
Mechanical Properties
| Property | Minimum (KSI) | Minimum (MPa) |
|---|---|---|
| Ultimate Tensile Strength | 100 KSI | 690 MPa |
| Yield Strength (0.2% Offset) | 45 KSI | 310 MPa |
| Elongation in 2" (50.8mm) | 45% | 45% |
Specifications and Standards
| Product Form | Standard |
|---|---|
| Bar | ASTM B574 |
| Sheet | ASTM B575 |
| Plate | ASTM B575 |
| Fitting | ASME SB-366 |
| Forging | ASME SB-564 |
| Weld Wire | AWS A5.14 |
Hastelloy Family Comparison
| Alloy | Key Features and Applications |
|---|---|
| Hastelloy B-3 | Excellent resistance to hydrochloric acid and strongly reducing chemicals with improved thermal stability and fabricability |
| Hastelloy HYBRID-BC1 | Superior resistance to hydrochloric and sulfuric acids without drawbacks of Ni-Mo materials |
| Hastelloy C-4 | High-temperature stability (1200-1900°F) with corrosion resistance similar to C-276 |
| Hastelloy C-22 | Better overall corrosion resistance in oxidizing environments than C-4 and C-276; excellent universal weld filler metal |
| Hastelloy C-22HS | Heat-treatable version with approximately double the yield strength while maintaining corrosion resistance |
| Hastelloy C-276 | Versatile alloy with excellent resistance to reducing and mildly oxidizing corrosives |
| Hastelloy C-2000 | Most versatile alloy with excellent performance in both oxidizing and reducing environments |
| Hastelloy G-30 | Superior performance in phosphoric acid, sulfuric acid, and oxidizing acid mixtures |
| Hastelloy G-35 | Excellent resistance to highly oxidizing media and acidic chloride environments |
| Hastelloy N | Excellent resistance to hot fluoride salts (1300-1600°F) with good fabricability |
Industry Applications
Chemical Process
Petrochemical
Oil & Gas
Pharmaceutical
Geothermal
Sea Water
Water Desalination
LNG (Liquefied Natural Gas)
Biomass
Mining
Utilities
Nuclear Power
Solar Power
