Corrosion Resistant Super Austenitic Stainless Steel Pipe S32652 UNS 654SMO with High Molybdenum Content and Excellent Pitting Resistance
Product Details
| Model NO. | S32652 UNS 654SMO | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | OD 6-630mm | Production Capacity | 50000kgs |
| Nickel Content | 21.0-23.0% | Chromium Content | 23-25% |
| Molybdenum Content | 7.0-8.0% | Copper Content | 0.3-0.6% |
| Nitrogen Content | 0.45-0.55% | Outer Diameter | 1/4" (6.25mm) To 8" (203mm) |
| Wall Thickness | 0.02" (0.5mm) To 0.5" (12mm) | Length | 15m(Max) |
| Process | Cold Drawn, Cold Rolled, Precision Rolled | ||
| Highlight | Corrosion Resistant Super Austenitic Stainless Steel Pipe,High Molybdenum Content S32652 UNS 654SMO Pipe,Excellent Pitting Resistance 1.4652 X1CrNiMOCUN24-22-8 Pipe |
||
Product Description
S32652 UNS 654SMO Super Austenitic Stainless Steel Pipe 1.4652 X1CrNiMOCUN24-22-8
S32652 (UNS 654SMO) Super Austenitic Stainless Steel pipe 1.4652 / X1CrNiMOCUN24-22-8 conforms to ASTM A312 and ASTM A269 standards for superior performance in demanding applications.
Material Overview
654SMo (S32654, 1.4652) super austenitic stainless steel contains 23% nickel, 25% chromium and 7% molybdenum, providing significantly better corrosion resistance than ordinary austenitic steels. This material offers excellent local corrosion resistance with superior pitting and stress corrosion resistance under seawater, aeration, gaps, and low-speed erosion conditions, making it an ideal alternative to nickel-based alloys and titanium alloys.
Chemical Composition
| Element | Content (%) |
|---|---|
| C | ≤0.02 |
| Si | ≤0.05 |
| Mn | 2.00-4.00 |
| Ni | 21.0-23.0 |
| P | ≤0.03 |
| S | ≤0.005 |
| Cr | 23-25 |
| Mo | 7.0-8.0 |
| N | 0.45-0.55 |
| Cu | 0.3-0.6 |
Performance Characteristics
- Excellent pitting and crevice corrosion resistance in harsh corrosive environments
- Superior mechanical properties and high yield strength
- Good processability and workability
- Better high temperature resistance and corrosion resistance than 904L and 254SMO
Specifications
Standards
ASTM A312, ASTM A269, ASTM B673, ASTM B674, ASTM B677, ASTM B675, ASTM B676, ASTM B690
Size Range
Outer Diameter: 1/4" (6.25mm) to 8" (203mm)
Wall Thickness: 0.02" (0.5mm) to 0.5" (12mm)
Length: 15m (Maximum) or as required
Wall Thickness: 0.02" (0.5mm) to 0.5" (12mm)
Length: 15m (Maximum) or as required
Manufacturing Processes
Seamless Pipe/Tube: Cold drawn, Cold rolled, Precision Rolled
Welded Pipe/Tube: Gas tungsten arc welding, Plasma arc welding (PAW), Submerged arc welding (SAW)
Welded Pipe/Tube: Gas tungsten arc welding, Plasma arc welding (PAW), Submerged arc welding (SAW)
Finishes
Annealed & pickled, bright annealing, polished
End Preparation

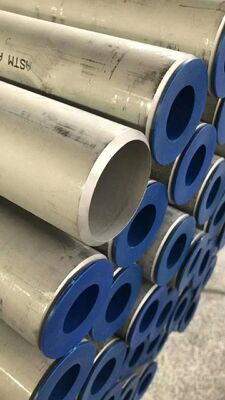

Beveled or plain end, square cut, burr free with plastic cap protection at both ends
Quality Assurance & Testing
- 100% PMI and Spectro Chemical Analysis Test for Raw Material
- 100% Dimension & Visual Examination
- Mechanical Properties Testing (Tension, Flaring, Flange, Hardness, Reversed Flattening)
- 100% Hydrostatic Test or 100% Non-Destructive Test (ET or UT)
- Radiographic Test for Welded Pipe
- Optional Tests: Straightness, Roughness, Intergranular Corrosion, Impact, Grain Size Determinations
Packaging
Bare packing, bundle packing with woven bag, wooden or steel frame crate packing with plastic cap protection at both tube ends. Suitable protection for sea-worthy delivery or as requested.
