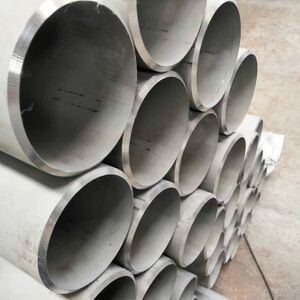

316L Stainless Steel Pipe with Corrosion Resistance Cold-Drawing Technique and Polished Surface
Product Details
| Model NO. | 316L | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Outer Diameter | 1.0-1220mm | Wall Thickness | 0.1-150mm |
| Length | 3m, 5.8m, 6m, 11.8m | Carbon Content | ≤0.03 |
| Molybdenum Content | 2.00~3.00 | Tensile Strength | 485 MPa Min |
| Yield Strength | 170 MPa Min | Elongation | 40% Min |
| Brinell Hardness | 217 Max | Rockwell Hardness | 95 Max |
| Production Capacity | 500000kgs | ||
| Highlight | Corrosion Resistant Stainless Steel Pipe,Cold-Drawing Technique Stainless Steel Tube,Polished Surface 316L Pipe |
||
Product Description
AISI Round 316L Stainless Steel Pipe A213 A269 A312 Corrosion Resistant
ASTM A312 316 316L stainless steel round pipe pickled for marine applications, offering superior corrosion resistance in demanding environments.
Product Specifications
- Standard: ASTM A249, ASTM A268, ASTM A269, ASTM A312
- Material: 316, 316L Stainless Steel
- Outer Diameter: 1.0-1220mm (1/8"-48")
- Wall Thickness: 0.1-150mm (SCH 5S-XXS)
- Length: 3m, 5.8m, 6m, 11.8m, or custom lengths available
- Surface Finish: Pickled, annealed, polished, bright, sand blast, hair line
316 vs 316L Stainless Steel Comparison
316 and 316L stainless steels are molybdenum-containing alloys with enhanced performance characteristics. 316L stainless steel contains slightly higher molybdenum content and offers superior corrosion resistance, particularly in applications where post-welding annealing is not possible. Both grades provide excellent chloride resistance, making them ideal for marine environments.
Chemical Composition
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB) max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |
