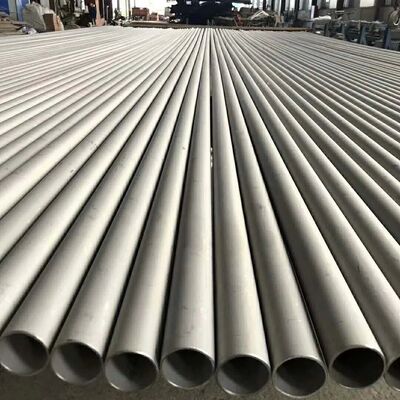

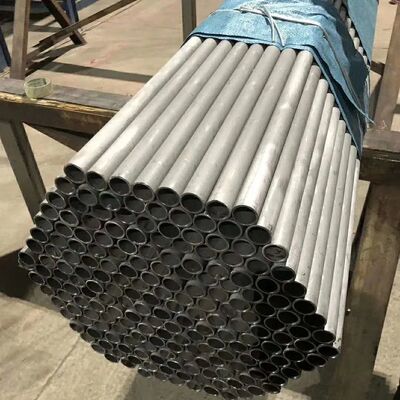

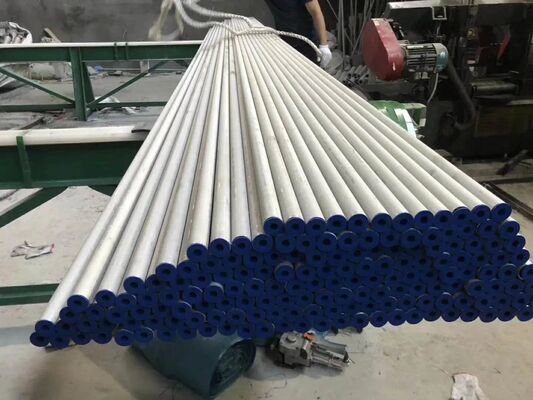

Super Austenitic Stainless Steel Pipe 254SMo with High Molybdenum Content for Corrosion Resistance
Product Details
| Model NO. | 254smo S31254 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | OD 6-630mm | Production Capacity | 50000kgs |
| Carbon Content | 0.010% | Chromium Content | 20% |
| Nickel Content | 18% | Molybdenum Content | 6.1% |
| Nitrogen Content | 0.20% | Tensile Strength | 680 MPa |
| Yield Strength | 300 MPa | Elongation At Break | 50% |
| Hardness Brinell | 210 | ||
| Highlight | Super Austenitic Stainless Steel Pipe,Corrosion Resistant 254SMo Pipe,High Molybdenum Content Stainless Steel Tube |
||
Product Description
254SMo S31254 ASTM A789 F44 1.4547 Super Austenitic Stainless Steel
254SMo is an austenitic stainless steel specifically developed for use in halide-containing environments such as seawater. This steel demonstrates superior performance particularly in halide-containing acids and offers excellent resistance to uniform corrosion. With carbon content below 0.02%, it qualifies as pure austenitic stainless steel, and when carbon content is under 0.01%, it is classified as super austenitic stainless steel.
Key Features of 254SMo Stainless Steel
254SMo represents a category of super stainless steel distinguished by its high alloy content of nickel, chromium, and molybdenum. The 6% molybdenum content provides exceptional local corrosion resistance, making it suitable for harsh conditions including seawater, aeration, gap corrosion, and low-speed scouring environments.
- Excellent pitting corrosion resistance (PI ≥ 40) and stress corrosion cracking resistance
- Superior alternative to nickel-based alloys and titanium alloys
- Enhanced high-temperature and corrosion resistance compared to standard 304 stainless steel
- Stable austenitic metallurgical structure
- High crevice corrosion resistance in seawater, even at elevated temperatures
- Strong corrosion resistance in acidic solutions and oxidizing halide solutions
- Improved mechanical strength due to high nitrogen content
- High ductility, impact strength, and excellent weldability
Technical Specifications
Material Standards and Designations
| Standard | UNS | Werkstoff Nr. | EN | SS | AFNOR |
|---|---|---|---|---|---|
| 254 SMO | S31254 | 1.4529 | X1CrNiMoCuN20-18-7 | 2378* | Z1 CNDU 20.18.06AZ* |
Chemical Composition
| Element | Content (%) |
|---|---|
| Iron, Fe | 55.69 |
| Chromium, Cr | 20 |
| Nickel, Ni | 18 |
| Molybdenum, Mo | 6.1 |
| Nitrogen, N | 0.20 |
| Carbon, C | 0.010 |
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 680 MPa | 98600 psi |
| Yield strength | 300 MPa | 43500 psi |
| Modulus of elasticity | 195 GPa | 28300 ksi |
| Shear modulus | 75 GPa | 10900 ksi |
| Poisson's ratio | 0.30 | 0.30 |
| Elongation at break | 50 % | 50 % |
| Hardness, Brinell | 210 | 210 |
Applications
- Ocean: Marine structures in sea environments, seawater desalination, marine aquaculture, seawater heat exchange
- Environmental Protection: Flue gas desulfurization for thermal power generation, wastewater treatment
- Energy: Nuclear power generation, comprehensive coal utilization, ocean wave power generation
- Petrochemical Industry: Refining operations, chemical processing equipment
- Food Industry: Salt production, soy sauce brewing processes
- High Chloride Environments: Paper industry applications, various bleaching devices
- Other industrial applications requiring superior corrosion resistance
