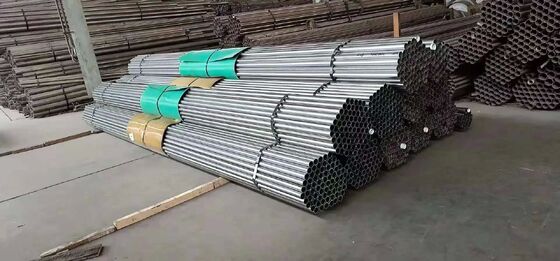

439 Stainless Steel Tube with Polished Surface for Automotive Exhaust Systems
Product Details
| Model NO. | 439 | Shape | Round |
|---|---|---|---|
| Technique | Welded | Surface Treatment | Polished |
| Specification | OD 6-127mm | Production Capacity | 50000kgs |
| Carbon Content | ≤0.03% | Silicon Content | ≤1.00% |
| Manganese Content | ≤1.00% | Phosphorus Content | ≤0.04% |
| Sulfur Content | ≤0.03% | Chromium Content | 17.0-19.0% |
| Nickel Content | ≤0.5% | Tensile Strength | ≥415 N/m |
| Yield Strength | 205 N/m | ||
| Highlight | 439 Stainless Steel Tube,Polished Surface Stainless Steel Tube,Automotive Exhaust Systems Stainless Steel Pipe |
||
Product Description
439 Stainless Steel Tube for Exhaust Systems
439 stainless steel is an enhanced ferritic material based on the 430 grade, with reduced carbon content and the addition of stabilizing elements like titanium. This formulation provides improved intergranular corrosion resistance, enhanced formability, and superior weldability. While its elongation is lower than 304 stainless steel (approximately 30%), 439 offers comparable strength and corrosion resistance, with performance exceeding that of 200 series materials.
Chemical Composition
| Country | Standard | Grade | C | Si | Mn | P | S | Cr | Ni | N | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| USA | ASTM | 439 | 0.03 | 1.00 | 1.00 | 0.04 | 0.03 | 17.0-19.0 | ≤0.5 | ≤0.04 | 0.2+4(C+N)-1.10 |
| Germany | DIN | 1.4510 | 0.05 | 1.00 | 0.00 | 0.04 | 0.015 | 16.0-18.0 | - | - | 4(C+N)-0.80 |
Mechanical Properties
| Standard | Tensile Strength (N/m) | Yield Strength (≤N/m) | Elongation (≥%) | Hardness (≤HV) |
|---|---|---|---|---|
| ASTM | ≥415 | 205 | 22 | 180 |
Primary Applications
- Elevator and escalator decoration panels
- Architectural cladding and structural components
- Automotive exhaust system components
- Washing machine inner drums
Industrial Applications
- Automotive exhaust systems
- Catalytic converters
- Mufflers and tailpipes
- Farm equipment components
- Structural supports and hangers
- Transformer enclosures
- Furnace components
- Heat exchanger tubing

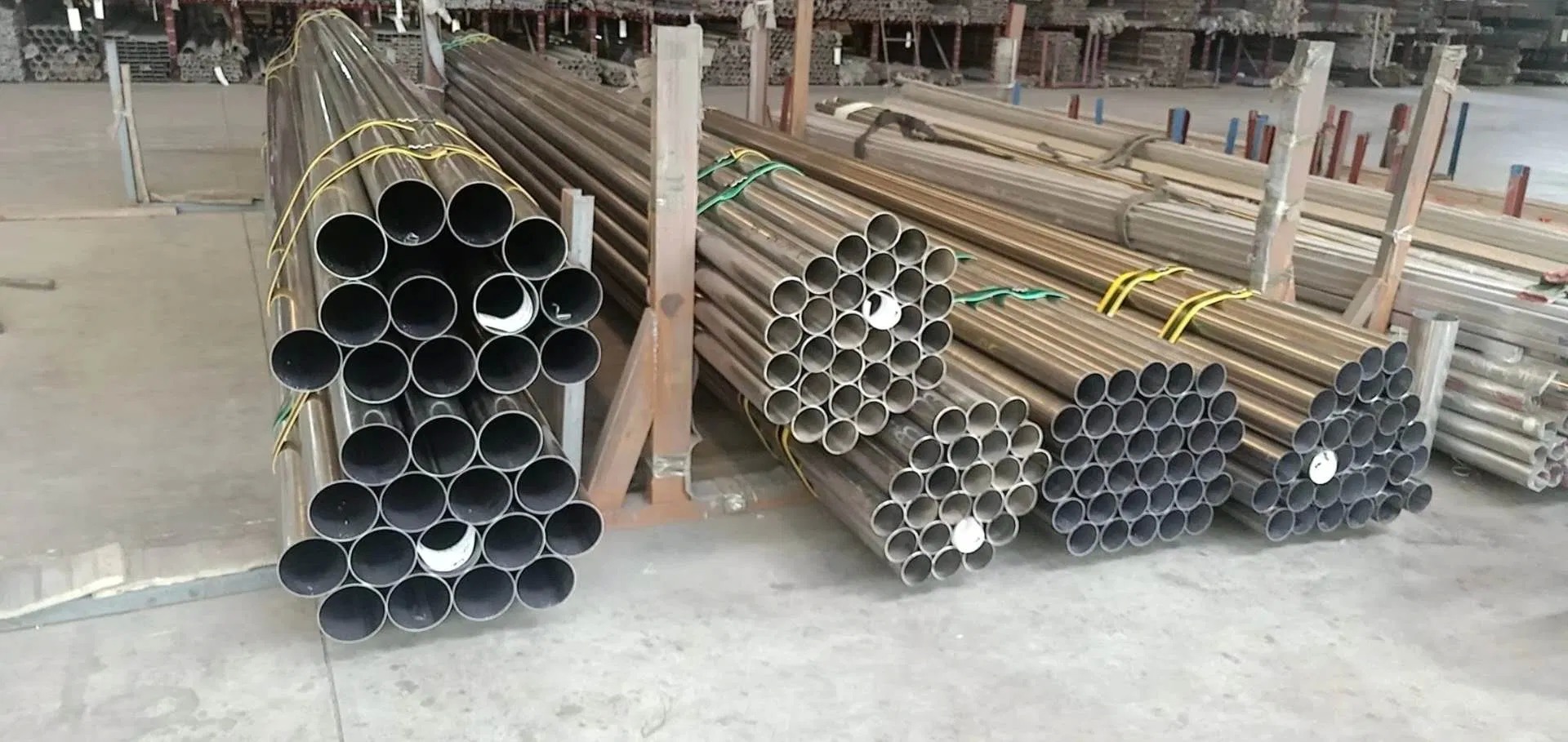

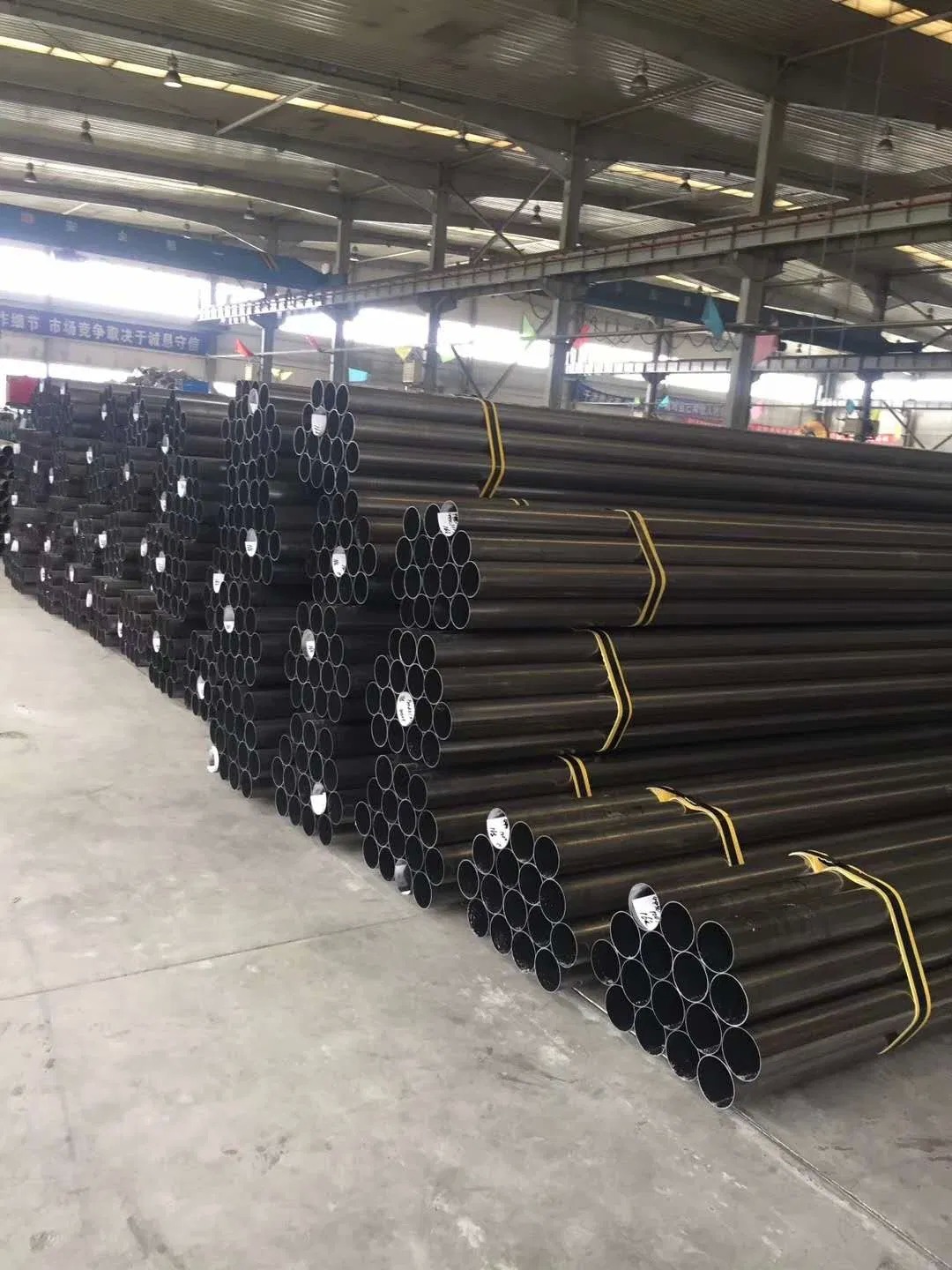

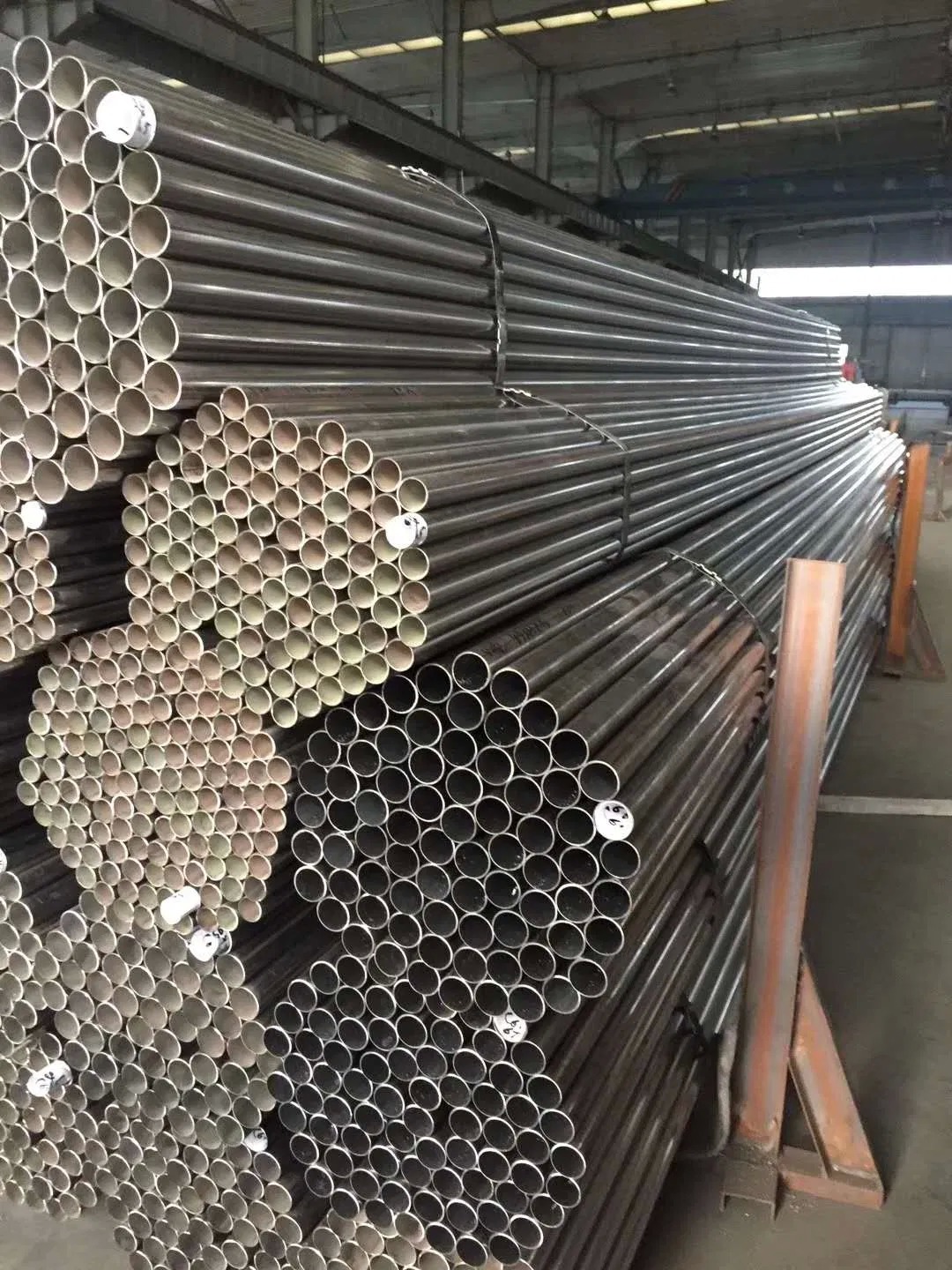

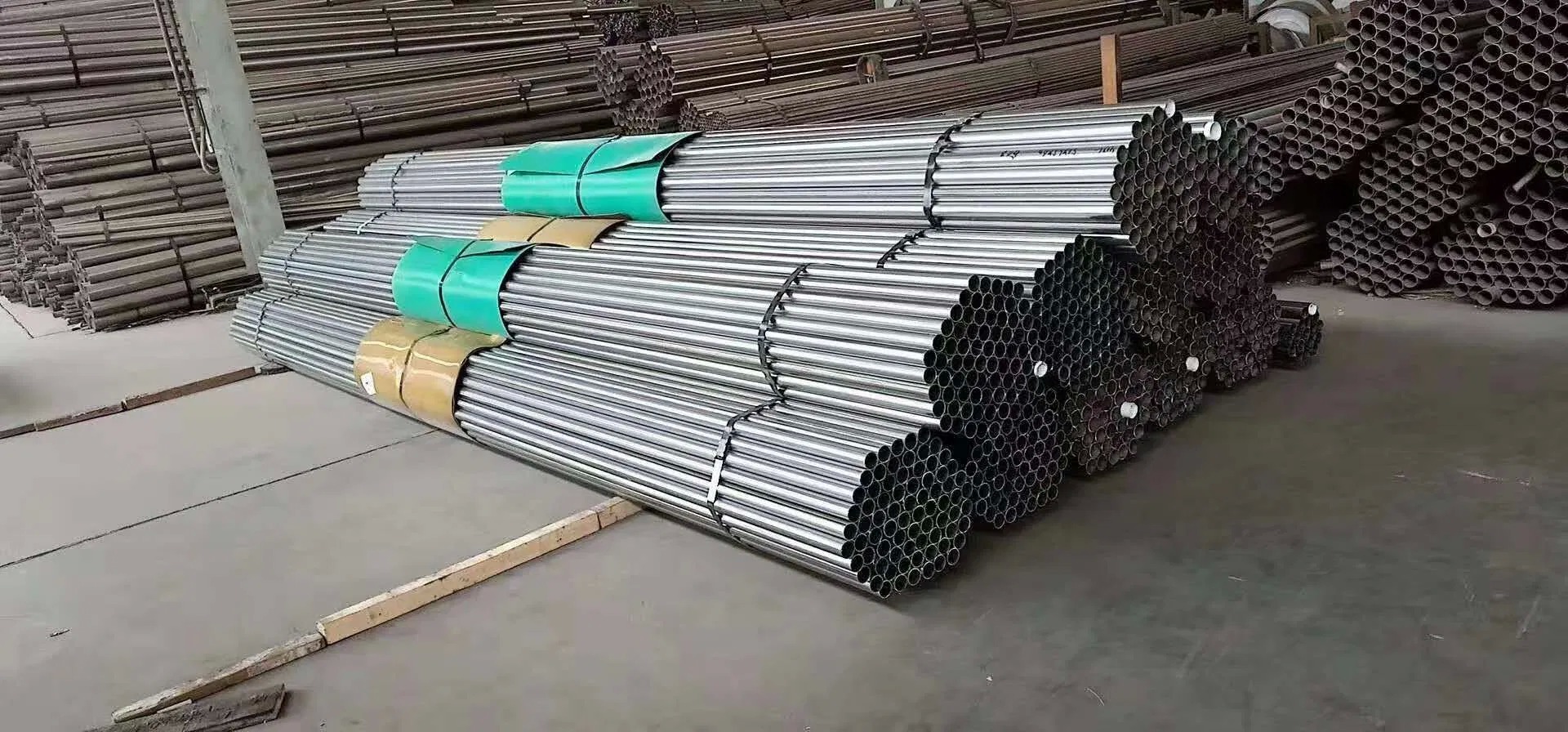

Product Images
