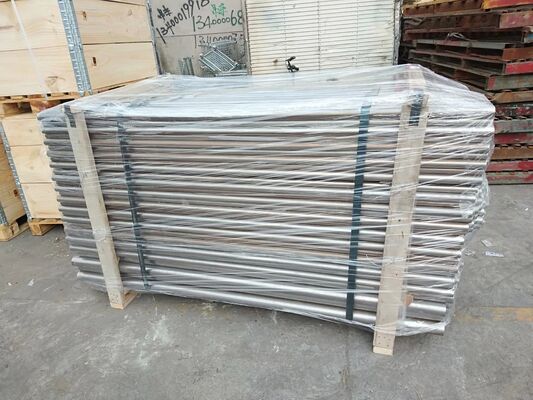

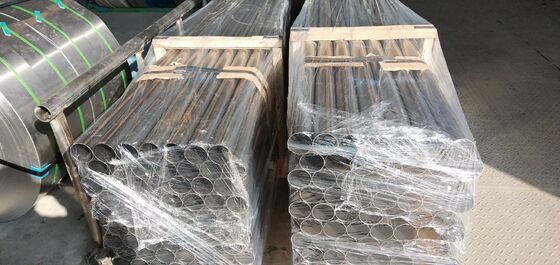

Polished 436L Stainless Steel Exhaust Tube for Automotive Exhaust Systems

Certification	AISI, ASTM
Minimum Order Quantity	50 kg
Price	US $1.85-2.38 / kg

Product Details

Model Number	430 436L 439 441 444	Shape	Round
Technique	Welded	Surface Treatment	Polished
Outer Diameter	6-127mm	Carbon Content	0.12%
Chromium Content	16.0-18.0%	Molybdenum Content	0.75-1.25%
Manganese Content	1.00%	Yield Strength	40 Ksi
Tensile Strength	65 Ksi	Elongation	20%
Hardness	90 Rb	Density	0.276 Lb/in³
Modulus Of Elasticity	29.0 X 10⁶ Psi
Highlight	Polished Stainless Steel Exhaust Tube , Automotive Exhaust Stainless Steel Pipe , 436L Welded Pipe

Leave a Message

Product Description

Stainless Steel Exhaust Tube (430 436L 439 441 444)

SUS436L Welded Pipe 436L Stainless steel pipe

Chemical Composition (wt%)

Limits as specified in ASTM A240 and ASME SA240*

Element	436
Carbon	0.12
Chromium	16.0-18.0
Molybdenum	0.75-1.25
Manganese	1.00
Silicon	1.00
Phosphorus	0.040
Sulfur	0.030

* Maximum, unless range is indicated

Mechanical Properties

Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240

Property	436
Yield Strength, min. (ksi)	40
Tensile Strength, min. (ksi)	65
Elongation, min. (%)	20
Hardness, max. (Rb)	90

Physical Properties

Physical properties for Type 436 stainless steel

Property	436 Data
Density, lb/in³	0.276
Modulus of Elasticity, psi	29.0 x 10⁶
Coefficient of Thermal Expansion, 68-212˚F, /˚F	5.6 x 10⁻⁶
Thermal Conductivity, Btu/ft hr ˚F	13.0
Specific Heat, Btu/lb ˚F	0.11
Electrical Resistivity, Microohm-in	23.6

Standards

Typical standards for Type 436 stainless steel

436
ASTM A240
ASME SA240
AMS 5503

Download Data Sheet

Data are typical, are provided for informational purposes, and should not be construed as maximum or minimum values for specification or for final design, or for a particular use or application. The data may be revised anytime without notice. We make no representation or warranty as to its accuracy and assume no duty to update. Actual data on any particular product or material may vary from those shown herein.

We warmly welcome clients from all over the world to cooperate with us and develop worldwide market together. As one of the biggest steel pipe agents in China, we can certainly ensure high quality and competitive price.

Applications

Although Alloy 436 is designed principally for the automotive exhaust industry, it has been successfully used in other industrial applications as well. Some examples of applications that call for Alloy 436L include:
