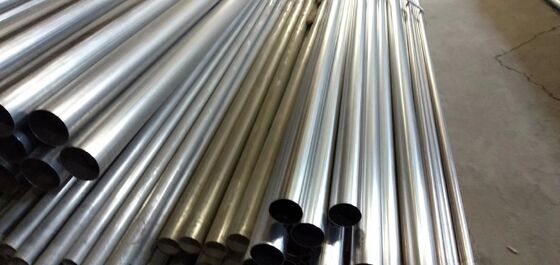

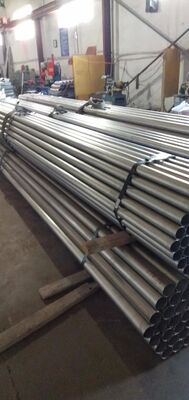

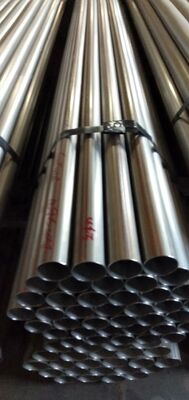

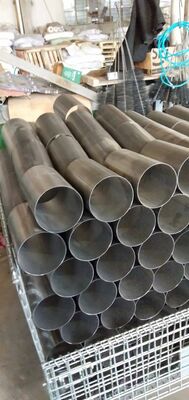

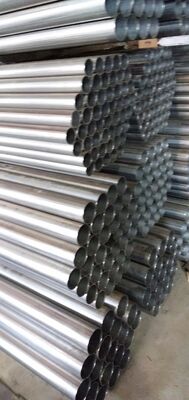

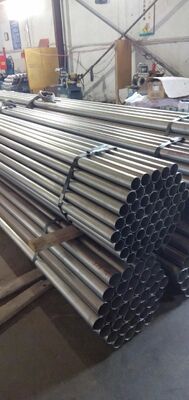

SUS436L Welded Stainless Steel Pipe with Polished Surface for Automotive Exhaust Applications ASTM A240 Standard
Product Details
| Model NO. | 436L | Shape | Round |
|---|---|---|---|
| Technique | Welded | Surface Treatment | Polished |
| Specification | OD 6-127mm | Production Capacity | 50000kgs |
| Carbon Content | 0.12 Wt% | Chromium Content | 16.0-18.0 Wt% |
| Molybdenum Content | 0.75-1.25 Wt% | Yield Strength | 40 Ksi |
| Tensile Strength | 65 Ksi | Elongation | 20% |
| Hardness | 90 Rb | Density | 0.276 Lb/in3 |
| Modulus Of Elasticity | 29.0 X 10^6 Psi | ||
| Highlight | Polished Surface Stainless Steel Pipe,Automotive Exhaust Welded Pipe,ASTM A240 SUS436L Pipe |
||
Product Description
SUS436L Welded Pipe - 436L Stainless Steel Pipe
SUS436L welded pipe is a high-quality 436L stainless steel pipe designed for demanding industrial applications with excellent corrosion resistance and mechanical properties.
Chemical Composition
Chemical composition limits (wt%) as specified in ASTM A240 and ASME SA240*
| Element | 436 |
|---|---|
| Carbon | 0.12 |
| Chromium | 16.0-18.0 |
| Molybdenum | 0.75-1.25 |
| Manganese | 1.00 |
| Silicon | 1.00 |
| Phosphorus | 0.040 |
| Sulfur | 0.030 |
* Maximum, unless range is indicated
Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240
| Property | 436 |
|---|---|
| Yield Strength, min. (ksi) | 40 |
| Tensile Strength, min. (ksi) | 65 |
| Elongation, min. (%) | 20 |
| Hardness, max. (Rb) | 90 |
Physical Properties
Physical properties for Type 436 stainless steel
| Property | 436 Data |
|---|---|
| Density, lb/in³ | 0.276 |
| Modulus of Elasticity, psi | 29.0 x 10⁶ |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 5.6 x 10⁻⁶ |
| Thermal Conductivity, Btu/ft hr ˚F | 13.0 |
| Specific Heat, Btu/lb ˚F | 0.11 |
| Electrical Resistivity, Microohm-in | 23.6 |
Standards Compliance
Typical standards for Type 436 stainless steel
- ASTM A240
- ASME SA240
- AMS 5503
Download Data Sheet
Applications
Although Alloy 436 is designed principally for the automotive exhaust industry, it has been successfully used in various industrial applications including:
- Automotive exhaust systems
- Catalytic converters
- Mufflers
- Tailpipes
- Farm equipment
- Structural support and hangers
- Transformer cases
- Furnace components
- Heat exchanger tubing
We warmly welcome clients from all over the world to cooperate with us and develop worldwide market together. As one of the biggest steel pipe agents in China, we can certainly ensure high quality and competitive price.
Data are typical, are provided for informational purposes, and should not be construed as maximum or minimum values for specification or for final design, or for a particular use or application. The data may be revised anytime without notice. We make no representation or warranty as to its accuracy and assume no duty to update. Actual data on any particular product or material may vary from those shown herein.
