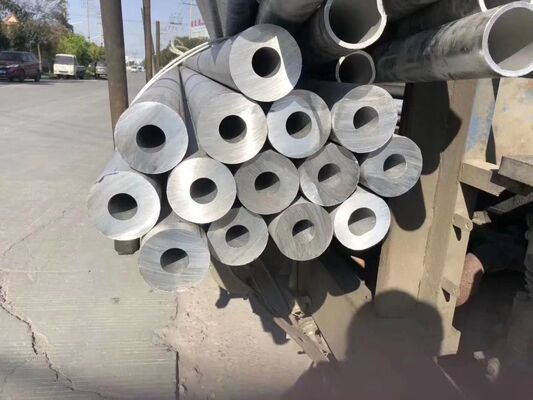

ASTM A312 TP316L Cold-Drawn Corrosion Resistant Polished Stainless Steel Pipe
Product Details
| Model NO. | 316l | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Specification | OD 6-630mm | Production Capacity | 500000kgs |
| Tensile Strength | 515-860 MPa | Yield Strength | 205-690 MPa |
| Elongation | 15-35% | Specific Heat | 485 J.kg-1.°K-1 |
| Thermal Conductivity | 16.3 W.m-1.°K-1 | Thermal Expansion | 16.5 μm/μm/°C |
| Modulus Elasticity | 200 GPa | Electrical Resistivity | 7.4 μohm/cm |
| Density | 7.99 G/cm3 | ||
| Highlight | Corrosion Resistant Stainless Steel Pipe,Cold-Drawn 316L Stainless Steel Tube,Polished A312 TP316L Pipe |
||
Product Description
ASTM A312 TP316L SUS316L DIN 1.4404 Stainless Steel Pipe
UNS S31653 Type 316LN Stainless Steel
UNS S31653 Type 316LN is a low-carbon, nitrogen-enhanced version of Type 316 molybdenum-bearing austenitic stainless steel. This alloy offers superior resistance to general corrosion and pitting/crevice corrosion compared to conventional chromium-nickel austenitic stainless steels like Type 304. It also provides higher creep, stress-rupture, and tensile strength at elevated temperatures, with nitrogen content adding additional resistance to sensitization.
316LN vs 316L Stainless Steel Comparison
The nitrogen content in Type 316LN stainless steel provides solid solution hardening, resulting in higher minimum specified yield strength compared to Type 316L stainless steel. Both alloys maintain excellent resistance to general corrosion and pitting/crevice corrosion.
Standard Stock Specifications
- ASTM F138
- ASTM F2181
- Custom specifications available
Available Tube Products
- Straight
- Coiled
- Seamless
Typical Applications
- Orthopaedic implants
- Trauma nails
- Neurological applications
- Surgical instruments
Primary Industries
- Chemical processing
- High performance liquid chromatography (HPLC)
- Medical
Mechanical Properties
| Property | Annealed | Cold Worked |
|---|---|---|
| Tensile Rm (ksi min) | 75 | 125 |
| Tensile Rm (MPa min) | 515 | 860 |
| R.p. 0.2% Yield (ksi min) | 30 | 100 |
| R.p. 0.2% Yield (MPa min) | 205 | 690 |
| Elongation (2" or 4D GL) % min | 35 | 15 |
Physical Properties (Room Temperature)
| Property | Value |
|---|---|
| Specific Heat (0-100°C) | 485 J.kg⁻¹.°K⁻¹ |
| Thermal Conductivity | 16.3 W.m⁻¹.°K⁻¹ |
| Thermal Expansion | 16.5 μm/μm/°C |
| Modulus Elasticity | 200 GPa |
| Electrical Resistivity | 7.4 μohm/cm |
| Density | 7.99 g/cm³ |
Chemical Composition (% by weight)
| Element | Min | Max |
|---|---|---|
| C | - | 0.03 |
| Mn | - | 2 |
| Ni | 13 | 15 |
| Cr | 17 | 19 |
| Mo | 2 | 3 |
| S | - | 0.1 |
| Si | - | 0.75 |
| P | - | 0.25 |
