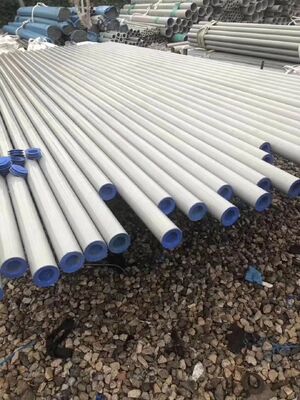

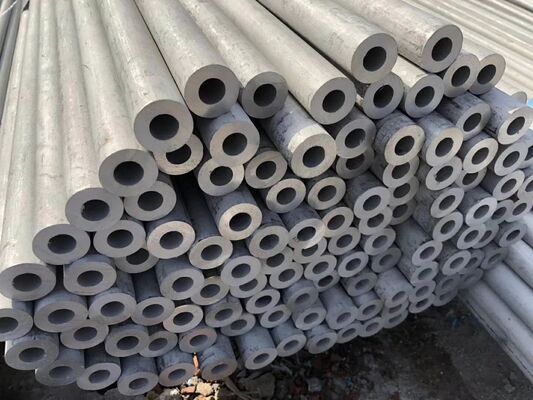

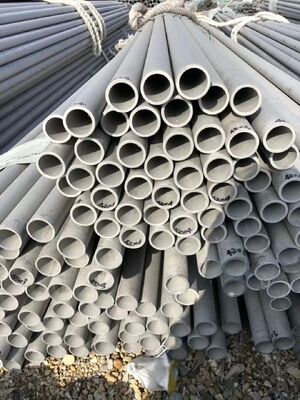

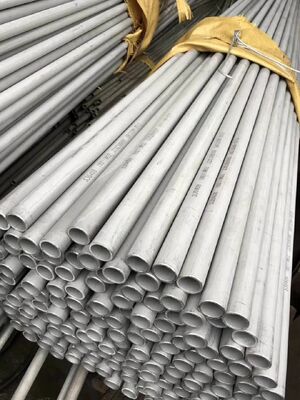

ASTM A312 316Ti Cold Rolled Pickling Stainless Steel Seamless Pipe for High-Temperature Applications
Product Details
| Model NO. | 316ti | Shape | Round |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Pickling |
| Specification | OD 6-630mm | Production Capacity | 500000kgs |
| Carbon Content | 0.08% Max | Silicon Content | 0.75% Max |
| Manganese Content | 2.00% Max | Chromium Content | 16.00-18.00% |
| Nickel Content | 10.00-14.00% | Molybdenum Content | 2.00-3.00% |
| Tensile Strength | 515 MPa Min | Yield Strength | 205 MPa Min |
| Elongation | 35% Min | ||
| Highlight | 316Ti Stainless Steel Pipe,Cold Rolled Seamless Pipe,Pickling Stainless Steel Tube |
||
Product Description
ASTM A312 316Ti Stainless Steel Seamless Pipe
316Ti/1.4571 ASTM A312 seamless heat exchanger stainless steel tubes designed for demanding industrial applications requiring superior corrosion resistance and high-temperature performance.
Material Specifications
Available in ASME SA213 / ASTM A213 316Ti UNS S31603, EN 10216-5 1.4571 stainless steel. Similar to Grade 316L but with enhanced high-temperature strength and mechanical properties.
Applications
- Equipment exposed to aggressive corrosive conditions
- High-temperature applications
- Automotive flexible connectors
- Welded bellows
- Chimney liners
- Flexible ducting
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| TP316Ti | 0.08 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 5×(C+N)-0.70 | Rem |
| EN 10216-5 1.4571 | 0.08 max | 1.00 max | 2.00 max | 0.040 max | 0.015 max | 16.50-18.50 | 10.50-13.50 | 2.00-2.50 | 5×C-0.70 | Rem |
| AISI 316 Ti | 0.08 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 5×(C+N)-0.70 | Rem |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Rockwell B (HR B) max | Brinell (HB) max |
|---|---|---|---|---|---|
| 316H | 515 | 205 | 35% | 75 | 205 |
