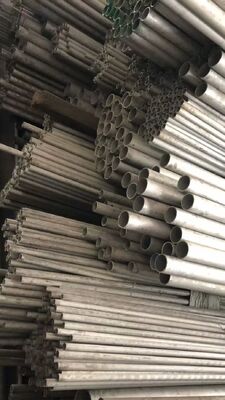

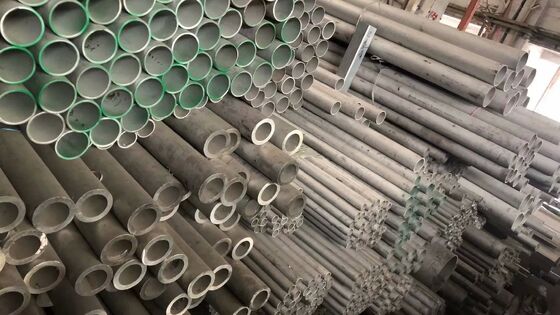

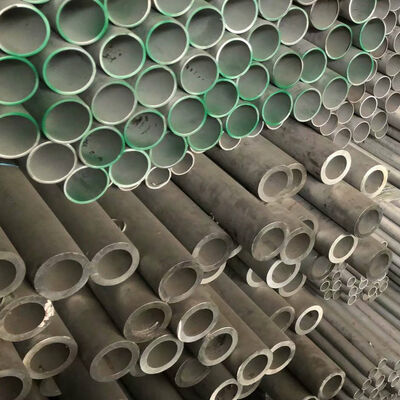

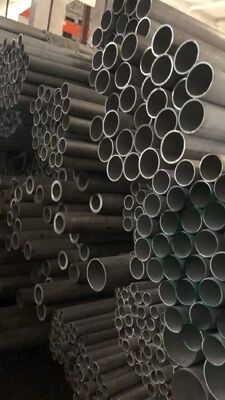

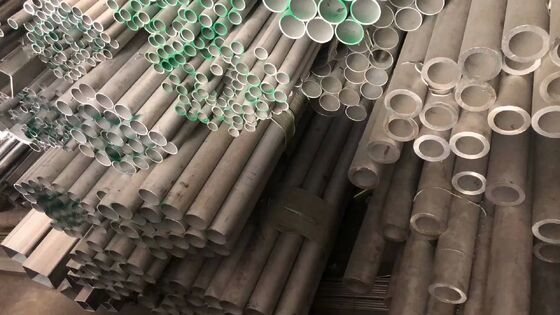

UNS S31653 Type 316LN Cold-Drawing Polished Stainless Steel Pipe with OD 6-630mm
Product Details
| Model NO. | 316LN | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Polished |
| Specification | OD 6-630mm | Production Capacity | 500000kgs |
| Tensile Rm (Annealed) | 515 MPa (min) | Tensile Rm (Cold Worked) | 860 MPa (min) |
| Yield Strength (Annealed) | 205 MPa (min) | Yield Strength (Cold Worked) | 690 MPa (min) |
| Elongation (Annealed) | 35% (min) | Elongation (Cold Worked) | 15% (min) |
| Thermal Conductivity | 16.3 W.m-1.°K-1 | Thermal Expansion | 16.5 μm/μm/°C |
| Density | 7.99 G/cm3 | ||
| Highlight | Cold-Drawing Stainless Steel Pipe,Polished Stainless Steel Round Tube,OD 6-630mm UNS S31653 |
||
Product Description
UNS S31653 Type 316LN Stainless Steel Pipe
UNS S31653 Type 316LN Stainless Steel is a low-carbon, nitrogen-enhanced version of Type 316 molybdenum-bearing austenitic stainless steel. The Type 316 alloys offer superior resistance to general corrosion and pitting/crevice corrosion compared to conventional chromium-nickel austenitic stainless steels like Type 304. They also provide higher creep, stress-rupture, and tensile strength at elevated temperatures.
Key Features and Benefits
The nitrogen content in Type 316LN provides additional resistance to sensitization and offers solid solution hardening, increasing minimum specified yield strength compared to Type 316L stainless steel. This alloy maintains excellent resistance to general corrosion and pitting/crevice corrosion.
Comparison: 316LN vs 316L Stainless Steel
Type 316LN stainless steel features nitrogen enhancement that provides solid solution hardening, resulting in higher minimum specified yield strength compared to Type 316L stainless steel, while maintaining excellent corrosion resistance properties.
Standard Stock Specifications
- ASTM F138
- ASTM F2181
- Custom specifications available
Available Tube Products
- Straight
- Coiled
- Seamless
Typical Applications
- Orthopaedic implants
- Trauma nails
- Neurological applications
- Surgical instruments
Primary Industries
- Chemical processing
- High performance liquid chromatography (HPLC)
- Medical
Mechanical Properties
| Property | Temper | Annealed | Cold Worked |
|---|---|---|---|
| Tensile Rm | ksi (min) | 75 | 125 |
| Tensile Rm | MPa (min) | 515 | 860 |
| R.p. 0.2% Yield | ksi (min) | 30 | 100 |
| R.p. 0.2% Yield | MPa (min) | 205 | 690 |
| Elongation (2" or 4D gl) | % (min) | 35 | 15 |
Physical Properties (Room Temperature)
| Property | Value | Unit |
|---|---|---|
| Specific Heat (0-100°C) | 485 | J.kg⁻¹.°K⁻¹ |
| Thermal Conductivity | 16.3 | W.m⁻¹.°K⁻¹ |
| Thermal Expansion | 16.5 | μm/μm/°C |
| Modulus Elasticity | 200 | GPa |
| Electrical Resistivity | 7.4 | μohm/cm |
| Density | 7.99 | g/cm³ |
Chemical Composition (% by weight)
| Element | Min | Max |
|---|---|---|
| C | - | 0.03 |
| Mn | - | 2 |
| Ni | 13 | 15 |
| Cr | 17 | 19 |
| Mo | 2 | 3 |
| S | - | 0.1 |
| Si | - | 0.75 |
| P | - | 0.25 |
