S32205 Duplex Steel Seamless Tube with Cold-Drawing Technique for High Strength and Corrosion Resistance
Product Details
| Model NO. | S32205 2205 | Shape | Round |
|---|---|---|---|
| Technique | Cold-Drawing | Surface Treatment | Bright |
| Specification | OD 6-630mm | Production Capacity | 50000kgs |
| Max Temperature | 600° F | Tensile Strength | 90 Ksi (min) |
| Yield Strength | 65 Ksi (min) | Elongation | 25% |
| Hardness | 217 HB (max) | Density | 0.278 Lbm/in3 |
| Electrical Resistivity | 27.6 MWin | Thermal Conductivity | 8.7 BTU/hrft°F |
| Heat Capacity | 0.112 BTU/lbm°F | ||
| Highlight | S32205 Stainless Steel Tube,Duplex Steel Seamless Tubing,Cold-Drawing Stainless Steel Tube |
||
Product Description

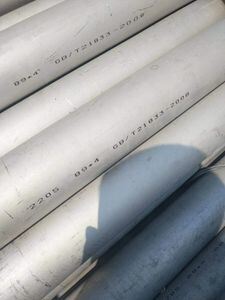

S32205 Stainless Steel Tube 2205 Duplex Steel Seamless Tubing
Duplex Steel 2205 Seamless Tube is a nitrogen-improved duplex stainless steel specifically engineered to address common corrosion issues encountered with 300 series stainless steels. The "duplex" classification refers to stainless steels that combine both austenitic and ferritic microstructures. In the annealed condition, 2205 contains approximately 40-50% ferrite, making it the most widely used grade in the duplex stainless steel family.
The duplex structure combines the beneficial properties of ferritic alloys (stress corrosion cracking resistance and high strength) with those of austenitic alloys (ease of fabrication and corrosion resistance). Use of 2205 Duplex stainless steel should be limited to temperatures below 600°F, as prolonged exposure to elevated temperatures can cause embrittlement.
Key Features of Duplex Steel 2205 Seamless Tube
- High resistance to chloride stress corrosion cracking
- Resistance to chloride pitting and crevice corrosion
- Excellent general corrosion resistance
- Superior sulphide stress corrosion resistance
- High strength properties
- Excellent weldability and workability
Applications of Duplex Steel 2205 Seamless Tube
- Chemical process vessels, piping and heat exchangers
- Pulp mill digesters, bleach washers, chip pre-steaming vessels
- Food processing equipment
- Oil field piping and heat exchangers
- Vent gas desulfurization equipment
Chemical Composition of Duplex Steel 2205
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 2205 (S31803) | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 21.0-23.0 | 2.5-3.5 | 4.5-6.5 | 0.08-0.20 |
| 2205 (S32205) | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 22.0-23.0 | 3.0-3.5 | 4.5-6.5 | 0.14-0.20 |
Mechanical Properties of Duplex Steel 2205
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (HB) MAX |
|---|---|---|---|---|
| 2205 | 90 | 65 | 25 | 217 |
Physical Properties of Duplex Steel 2205
| Temperature | Density lbm/in³ | Electrical Resistivity mWin | Thermal Conductivity (BTU/hr·ft·°F) | Heat Capacity BTU/lbm·°F | Electrical Resistivity (in × 10⁻⁶) |
|---|---|---|---|---|---|
| at 68°F | 0.278 | 27.6 | 8.7 | 0.112 | 33.5 |
| at 212°F | 26.1 | 9.2 | 0.119 | 35.4 | |
| at 392°F | 25.4 | 9.8 | 0.127 | 37.4 | |
| at 572°F | 24.9 | 10.4 | 0.134 | 39.4 |
