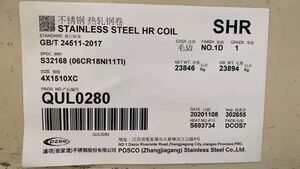

Hot Rolled S32168 Stainless Steel Plate Corrosion Resistant High Temperature Resistant SS 321 Plate
Product Details
| Model NO. | 321 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 0.1 To 100 Mm |
| Width | 10-2500mm | Length | 2m, 2.44m, 3m, Or As Required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard | Carbon Content | 0.08 |
| Chromium Content | 17.0-19.0 | Nickel Content | 9.0-12.0 |
| Yield Strength | 30 Ksi | Tensile Strength | 75 Ksi |
| Elongation | 40% | ||
| Highlight | Hot Rolled Stainless Steel Plate,Corrosion Resistant SS 321 Plate,High Temperature Resistant 321 Stainless Steel Sheet |
||
Product Description
S32168 Stainless Steel Plate Hot Rolled SS 321 Plate
Grade 321/321H Stainless Steel Sheet UNS S32100 is a titanium-stabilized austenitic stainless steel designed for high-temperature service in the 1000-1600°F range. This grade offers excellent resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
Product Overview
321 stainless steel is readily weldable by all common methods including submerged arc welding. Appropriate weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, it offers similar machinability to 304 stainless steel.
Available Forms
- Sheet, Plate, Coil, Strip
- Wire, Pipe, Tube, Bar
- Profile, Round, Flat, Square, Hexagonal
Specifications & Dimensions
| Product Type | 321 Stainless Steel Sheet, 321 Stainless Steel Plate |
|---|---|
| Specification | ASTM A240 / ASME SA240 |
| International Standards | ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510 |
| Dimensions | Cold rolled: 0.5-6.4 mm, Hot rolled: 3.0-10.0 mm |
| Thickness | 0.1 to 100 mm |
| Width | 10-2500 mm |
| Length | 2m, 2.44m, 3m, or as required |
| Finish | Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), and various surface treatments |
Dimension Ranges
- Width: 600mm - 2030mm
- Thickness: 0.1mm - 120.0mm
- Length: 300mm - 6000mm (Maximum 18000mm)
Applications
- Aircraft piston engine manifolds
- Expansion joints
- Firearms production
- Thermal oxidizers
- Refinery equipment
- High temperature chemical process equipment
Chemical Composition
| Element | 321 Composition (%) |
|---|---|
| Carbon | 0.08 |
| Chromium | 17.0-19.0 |
| Nickel | 9.0-12.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Nitrogen | 0.10 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Titanium | 5(C+N) min / 0.70 max |
Mechanical Properties
| Property | 321 Values |
|---|---|
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 75 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 95 |
Physical Properties
| Property | 321 Data |
|---|---|
| Density, lb/in³ | 0.286 |
| Modulus of Elasticity, psi | 28.0 x 10⁶ |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 9.2 x 10⁻⁶ |
| Thermal Conductivity, Btu/ft hr ˚F | 9.3 |
| Specific Heat, Btu/lb ˚F | 0.12 |
| Electrical Resistivity, Microohm-in | 28.4 |
International Equivalents
Grade 321 stainless steel is recognized under multiple international standards including ASTM A182 Grade F321, JIS SUS321, EN 1.4541, GOST 08X18H10T, and UNS S32100 among numerous other specifications.
Alternative Grades
| Grade | Alternative Application |
|---|---|
| 304L | When resistance to intergranular corrosion is required without high-temperature strength |
| 3CR12 | For mild high-temperature environments up to approximately 600°C |
| 304H | For mild high-temperature environments up to approximately 800°C |
| 310 | For operating environments up to approximately 1100°C |
| S30815 (253MA) | For operating environments up to approximately 1150°C |
