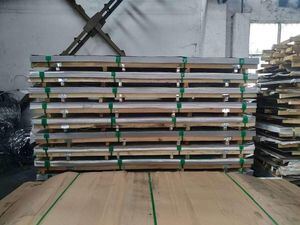

Cold Rolled ASTM A240 316L Stainless Steel Sheet with Bright Surface and Corrosion Resistance

Certification	ISO, AISI, ASTM
Minimum Order Quantity	50 kg
Price	US $1.95-4.85 / kg

Product Details

Model NO.	316L	Shape	Flat
Technique	Cold Rolled	Surface Treatment	Bright
Cr Content	16%	Ni Content	10%
Mo Content	2%	Specification	12202440, 15003000, 15006000, 20006000mm
Production Capacity	50000kgs	Thickness Range	0.1 To 100 Mm
Width Range	10-2500mm	Length Range	2m, 2.44m, 3m, Or As Required
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard	UTS	91 Ksi (627 MPa)
0.2% YS	42 Ksi (290 MPa)
Highlight	Cold Rolled Stainless Steel Sheet , Bright Surface 316L Stainless Steel Sheet , Corrosion Resistant ASTM A240 Sheet

Leave a Message

Product Description

ASTM A240 2B 316L Stainless Steel Sheet

Product Overview

Type 316/316L Stainless Steel Sheet is a premium austenitic stainless steel grade offering superior corrosion resistance, making it ideal for demanding applications. The addition of molybdenum provides enhanced protection against corrosive environments compared to standard 304 grade stainless steel.

Key Applications

Marine environments and underwater equipment
Food processing and pharmaceutical equipment
Surgical instruments and medical devices
Chemical process vessels and pulp & paper industry
Firearms production and industrial equipment

Available Forms

Sheet, Plate, Coil, Strip, Wire, Pipe, Tube, Bar, Profile, Round, Flat, Square, Hexagonal

Specifications & Standards

Primary Specification: ASTM A240 / ASME SA240 Grade 316

Applicable Standards

AMS 5507, AMS 5524, AMS 5648, AMS 5653, ASME SA 240, ASME SA 312, ASME SA 479, ASTM A 240, ASTM A 276, ASTM A 312, ASTM A 479, EN 1.4404, W. Nr./EN 1.4401, Werkstoff 1.4401, Werkstoff 1.4404

American & European Standards

ASTM A 480, ASTM A 959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510

Dimensions & Availability

Available Sizes

Cold rolled: 0.5-6.4 mm thickness

Hot rolled: 3.0-10.0 mm thickness

Dimension Ranges

Parameter	Range
Thickness	0.1 to 100 mm
Width	10-2500 mm (600mm-2030 mm typical)
Length	300-6000 mm (Max 18000 mm)

Surface Finishes

2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN, No.1 finish hot rolled, 1D, No.4, 8K, satin, hairline, brush, mirror, Etching, SB, Ti-coating, color-coating, embossing

Hardness Options

Soft, Hard, Half Hard, Quarter Hard, Spring Hard

Technical Data

Chemical Composition

Element	Type 316 (wt %)	Type 316L (wt %)
Carbon (C)	0.08 max.	0.03 max.
Manganese (Mn)	2.00 max.	2.00 max.
Phosphorus (P)	0.045 max.	0.045 max.
Sulfur (S)	0.030 max.	0.03 max.
Silicon (Si)	0.75 max.	0.75 max.
Chromium (Cr)	16.00 - 18.00	16.00 - 18.00
Nickel (Ni)	10.00 - 14.00	10.00 - 14.00
Molybdenum (Mo)	2.00 - 3.00	2.00 - 3.00
Nitrogen (N)	0.10 max.	0.10 max.
Iron (Fe)	Balance	Balance

Mechanical Properties - Room Temperature

UTS ksi (MPa)	0.2% YS ksi (MPa)	Elongation % in 2"	Rockwell Hardness
91 (627)	42 (290)	55	B79

Elevated Temperature Mechanical Properties

Temperature °F (°C)	UTS ksi (MPa)	0.2% YS ksi (MPa)	Elongation % in 2"
400 (204)	81 (558)	35 (241)	51
600 (316)	78 (538)	31 (214)	48
800 (427)	76 (524)	28 (190)	47
1000 (538)	70 (483)	24 (165)	44
1200 (649)	57 (393)	21 (145)	40
1400 (760)	35 (241)	18 (124)	37
1600 (871)	24 (165)	16 (110)	44

Technical Characteristics

Corrosion Resistance: Excellent resistance to chloride environments, marine atmospheres, and various acids including acetic, formic, phosphoric, and tartaric acids. Suitable for sulfuric acid environments below 5% concentration up to 150°F (60°C).

Heat Treatment: Annealing at 1900-2100°F (1038-1149°C) with rapid quenching.

Cold Working: Excellent ductility in annealed condition for roll forming, deep drawing, and bending. Lower work hardening rate than Type 304 due to higher nickel content.

Weldability: Weldable using common fusion and resistance techniques. Type 316L eliminates harmful carbide precipitation due to welding. Recommended filler metals: AWS E/ER 316L and 16-8-2.
