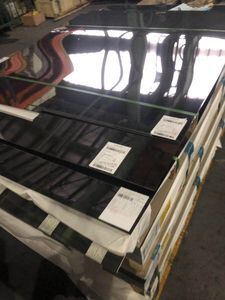

Prime Grade Cold Rolled AISI430 SUS430 Stainless Steel Sheet with Polished Surface and Corrosion Resistance
Product Details
| Model NO. | 1.4016 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 3-120mm |
| Tolerance | +/-0.02mm | Width | 1500mm,1800mm,2000mm Or As Customized |
| Length | 6000mm Or As Customized | Finish | 2B, NO1, Hairline, No.4, BA, 8K Mirror, Etc. |
| Carbon Content | ≤0.12 | Manganese Content | ≤1.00 |
| Phosphorus Content | ≤0.040 | Sulfur Content | ≤0.030 |
| Chromium Content | 16.0-18.0 | ||
| Highlight | Cold Rolled Stainless Steel Sheet,Polished Surface AISI430 Sheet,Corrosion Resistant SUS430 Sheet |
||
Product Description
Prime Grade Cold Rolled AISI430 SUS430 1.4016 Stainless Steel Sheet
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, belonging to the ferritic group of steels. This steel is known for its good corrosion resistance, excellent formability, and practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
Standards: AISI 430, UNS S43000, EN 1.4016
Key Features
- Representative grade of ferritic stainless steel, magnetic properties
- Low coefficient of thermal expansion, high thermal conductivity
- Cost-effective without nickel and molybdenum content
- Bright surface achieved by Bright Annealing or Mirror Finishing
Product Specifications
| Grade | 430 stainless steel sheet |
|---|---|
| Thickness | 3-120mm |
| Tolerance | +/-0.02mm |
| Width | 1500mm, 1800mm, 2000mm or customized |
| Length | 6000mm or customized |
| Brand Name | TISCO, LISCO, BAOSTEEL |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Finish | 2B, NO1, Hairline, No.4, BA, 8K mirror, etc. |
| Certification | SGS |
| Packaging | Standard exporting packing; seaworthy package |
| MOQ | 1 Ton |
Ordering & Delivery
| Price Terms | FOB, CFR, CIF, CNF |
|---|---|
| Delivery Time | Within 15-20 working days after receiving deposit |
| Payment | 30% T/T in advance + 70% balance; irrevocable L/C at sight |
| Remarks | Insurance is all risks and accept third party testing |
Chemical Composition (Wt%)
| Specification | Grade | C | Mn | P | S | Cr |
|---|---|---|---|---|---|---|
| ASTM | 430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0-18.0 |
| JIS | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0-18.0 |
| GB | 10Cr17 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0-18.0 |
Mechanical & Physical Properties
| Specification | Grade | Y.S (N/mm²) | T.S (N/mm²) | EL (%) | HRB | Specific Heat (J/gºC) | Modulus of Elasticity (KN/mm²) |
|---|---|---|---|---|---|---|---|
| JIS | SUS430 | ≥205 | ≥420 | ≥22 | ≤88 | - | - |
| ASTM/GB | 430 | ≥205 | ≥450 | ≥22 | ≤89 | 0.46 | 200 |
Applications
Kitchenware, household electrical appliances, building decoration - ideal for applications requiring low cost, good corrosion resistance, and excellent formability.
- Architecture & Building: Surface, pillar, window frame, stair hand-rail
- Kitchen Utensils: Washing machine drum, gas range stove, plate, housewares, hollowware
- Other Applications: Computer components, automotive trim
430 NO.1 Stainless Steel Sheet In Stock
| NO.1 Finish | T*W*L | W*L | W*L |
|---|---|---|---|
| NO.1 Finish | 3.0*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 4.0*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 5.0*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 6.0*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 8.0*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 10*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 12*1500*6000 | 1800*6000 | 2000*6000 |
| NO.1 Finish | 14*1500*6000 | 1800*6000 | 2000*6000 |
Requirements For NO1 Hot Rolling Production Line
| Thickness (mm) | Width (mm) | Length (mm) | Precision (mm) | Straightness (mm) | Length Error (mm) | Trimedge Thickness (mm) |
|---|---|---|---|---|---|---|
| 3.0-8.0 | 800-1600 | 1000-150000 | ≤±1.5 | ≤±1.0 | ≤±1.5 | ≤8.0 |
| 6.0-14.0 | 1000-2000 | - | - | - | - | ≤14.0 |
| 8.0-18.0 | 1250-2000 | - | - | - | - | ≤16.0 |
