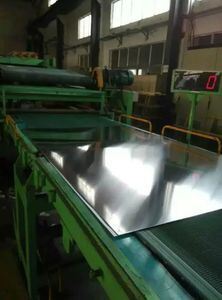

SUS430 Stainless Steel Sheet with Corrosion Resistance, Bright Annealed Surface, and Cold Rolled Technique

Certification	AISI, ASTM
Minimum Order Quantity	50 kg
Price	US $1.35-1.95 / kg

Product Details

Model Number	430	Shape	Flat
Technique	Cold Rolled	Surface Treatment	Polished
Dimensions	12202440, 15003000, 15006000, 20006000mm	Thickness	3-120mm
Tolerance	+/-0.02mm	Width	1500mm, 1800mm, 2000mm
Length	6000mm	Finish	2B, NO1, Hairline, No.4, BA, 8K Mirror
Chemical Composition	C ≤0.12, Mn ≤1.00, P ≤0.040, S ≤0.030, Cr 16.0-18.0	Yield Strength	≥205 N/mm2
Tensile Strength	≥420 N/mm2	Elongation	≥22%
Hardness	HRB ≤88
Highlight	Corrosion Resistant SUS430 Sheet , Bright Annealed 430 Stainless Steel , Cold Rolled Ferritic Stainless Sheet

Leave a Message

Product Description

SUS430 / DIN 1.4016 Stainless Steel Sheet

Stainless steel grade 430 is a non-hardenable steel containing straight chromium, belonging to the ferritic group of steels. Known for its excellent corrosion resistance, formability, and practical mechanical properties, this steel is suitable for various chemical applications due to its resistance to nitric acid.

Standard Designations

AISI 430 | UNS S43000 | EN 1.4016

Key Features

Representative grade of ferritic stainless steel with magnetic properties
Low coefficient of thermal expansion with high thermal conductivity
Cost-effective composition without nickel and molybdenum content
Bright surface finish achieved through Bright Annealing or Mirror Finishing

Product Specifications

Grade	430 stainless steel sheet
Thickness	3-120mm
Tolerance	±0.02mm
Width	1500mm, 1800mm, 2000mm or customized
Length	6000mm or customized
Brand Name	TISCO, LISCO, BAOSTEEL
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Finish	2B, NO1, Hairline, No.4, BA, 8K mirror, etc.
Certification	SGS

Chemical Composition (Wt%)

Specification	Grade	C	Mn	P	S	Cr
ASTM	430	≤0.12	≤1.00	≤0.040	≤0.030	16.0-18.0
JIS	SUS430	≤0.12	≤1.00	≤0.040	≤0.030	16.0-18.0
GB	10Cr17	≤0.12	≤1.00	≤0.040	≤0.030	16.0-18.0

Mechanical & Physical Properties

Specification	Grade	Y.S (N/mm²)	T.S (N/mm²)	EL (%)	HRB	Specific Heat (J/gºC)	Modulus of Elasticity (KN/mm²)
JIS	SUS430	≥205	≥420	≥22	≤88	-	-
ASTM/GB	430	≥205	≥450	≥22	≤89	0.46	200

Applications

Ideal for kitchenware, household electrical appliances, and building decoration due to low cost, excellent corrosion resistance, and superior formability.

Architecture & Building: Surface panels, pillars, window frames, stair hand-rails
Kitchen Utensils: Washing machine drums, gas range stoves, plates, housewares, hollowware
Other Applications: Computer components, automotive trim

Available NO.1 Finish Stock

Finish	T×W×L	W×L	W×L
NO.1 Finish	3.0×1500×6000	1800×6000	2000×6000
NO.1 Finish	4.0×1500×6000	1800×6000	2000×6000
NO.1 Finish	5.0×1500×6000	1800×6000	2000×6000
NO.1 Finish	6.0×1500×6000	1800×6000	2000×6000
NO.1 Finish	8.0×1500×6000	1800×6000	2000×6000
NO.1 Finish	10×1500×6000	1800×6000	2000×6000
NO.1 Finish	12×1500×6000	1800×6000	2000×6000
NO.1 Finish	14×1500×6000	1800×6000	2000×6000
