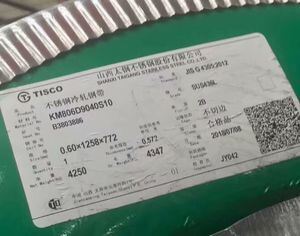

Cold Rolled Polished Surface Corrosion Resistant SS 409 Stainless Steel Sheet
Product Details
| Model NO. | 409 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Carbon Content | <= 0.08% | Manganese Content | <= 2.00% |
| Phosphorus Content | <= 0.045% | Sulfur Content | <= 0.030% |
| Silicon Content | <= 1.00% | Chromium Content | 18.0-20.0% |
| Nickel Content | 8.0-11.0% | Yield Strength | >=205 N/mm2 |
| Tensile Strength | >=520 N/mm2 | ||
| Highlight | Cold Rolled Stainless Steel Sheet,Polished Surface SS 409 Sheet,Corrosion Resistant 409 Stainless Steel |
||
Product Description
Stainless Steel 409 Sheets & Coils
AISI 409L stainless steel sheets and SUH409L stainless steel coils offer superior corrosion resistance and mechanical properties for decorative construction applications.
Cold Rolled Steel Sheet in Coil 409L Stainless Steel for Decoration Construction
Compared with ordinary carbon steel, stainless steel contains enhanced alloying elements such as Chromium (Cr), Nickel (Ni), Manganese (Mn), and Molybdenum (Mo), providing significantly different material characteristics. The corrosion resistance primarily depends on Chromium content, while Nickel ensures optimal microstructure and mechanical properties.
Chemical Composition
| Unit | C | Mn | P | S | Si | Cr | Ni |
|---|---|---|---|---|---|---|---|
| <= % | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 |
Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation | Hardness |
|---|---|---|---|
| >=205 | >=520 | >=40 | HB <=187 HRB <=90 |
Available Materials
- Carbon Steel: Q195, Q235, Q345
- 200 Series: 201, 202
- 300 Series: 301, 304, 304L, 309S, 310S, 316L, 317L, 321, 904L
- 400 Series: 409L, 410, 420, 430, 439, 441
Standard Sizes
Width: 1219mm or custom requirements
Thickness: 1-5mm
Our professional processing facility provides precision cutting services for stainless steel sheets.
Thickness: 1-5mm
Our professional processing facility provides precision cutting services for stainless steel sheets.
Surface Finishes
| Finish | Description |
|---|---|
| No.4 | Good gloss with fine surface lines. Processing: Polishing and tempering rolling of 2D/2B products with 150-180 abrasive material. |
| HL | Silver-gray with hairline streaks. Processing: Polishing 2D/2B products to create continuous grain appearance. |
| 8K | Mirror finish state. Processing: Grinding and polishing 2D/2B products to mirror effect. |
| 2B | Silvery white with superior gloss and flatness compared to 2D surface. |
| BA | Excellent surface gloss with high reflectivity, similar to mirror surface. |
| 1D | Matte surface with discontinuous particles. |
| 2D | Slightly shiny silvery white finish. |
| No.3 | Better gloss with rough surface texture. |
| SB | Smooth surface with clear, delicate texture and high-grade appearance, popular in kitchen appliances. |
Custom surface treatments available upon request. We operate a dedicated stainless steel processing facility in Wuxi.
Standards Compliance
GB, JIS, ASTM, EN, DIN, AISI
Packaging
Standard stainless steel shipping packaging or customized packaging as per customer requirements.
