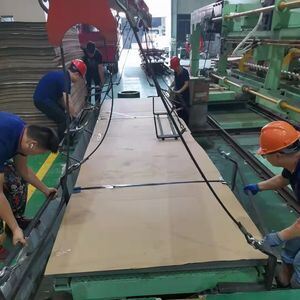

ASTM A240 Grade S20910 XM-19 Stainless Steel Sheet Cold Rolled with Bright Surface 0.6 - 8.0mm
Product Details
| Thickness Range | 0.6 - 8.0mm | Cold Rolled Thickness | 0.3 - 3.0mm |
|---|---|---|---|
| Hot Rolled Thickness | 4.0 - 10.0mm | Standard Size | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm |
| Cold Rolled Size | 1000*2000mm, 1219*2438mm | Hot Rolled Size | 1500*6000mm |
| Surface Treatment | 2B, BA, NO.4, Hairline, Mirror, 8K | Chromium Content | 20.5 - 23.5% |
| Nickel Content | 11.5 - 13.5% | Manganese Content | 4 - 6% |
| Molybdenum Content | 1.5 - 3% | Nitrogen Content | 0.2 - 0.4% |
| Columbium Content | 0.1 - 0.3% | Vanadium Content | 0.1 - 0.3% |
| Shape | Flat | ||
| Highlight | ASTM A240 Grade S20910 Stainless Steel Sheet,Cold Rolled XM-19 Stainless Steel,Bright Surface Nitronic 50 Stainless Steel |
||
Product Description
ASTM A240 Grade S20910 / XM-19 Stainless Steel Sheet & Plates
Thickness Range: 0.6 - 8.0mm Stainless Steel Sheet
Product Specifications
| Products | XM-19 Stainless Steel Sheet |
|---|---|
| Thickness | Cold Rolled: 0.3 - 3.0mm Hot Rolled: 4.0 - 10.0mm |
| Standard Size | Cold Rolled: 1000×2000mm, 1219×2438mm Hot Rolled: 1500×6000mm |
| Surface | 2B, BA, NO.4, Hairline, Mirror, 8K, etc. |
| Brand | TISCO, JISCO, POSCO, BAOSTEEL |
| Standard | ASTM A240 / JIS G4305 / EN 10088-2 |
| Other Grades | 201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 405, 410, 420, 430, 440, 441, 443, 444, 2205, 2507, etc. |
| Our Services | Slit Cutting, Surface Processing |
UNS S20910 (XM-19) Stainless Steel Information
Nitronic 50® stainless steel, also known as UNS S20910 and XM-19, is an austenitic stainless steel offering superior strength and corrosion resistance compared to Stainless Steels 316, 316/316L, 317, and 317/317L. XM-19 provides twice the yield strength at room temperature while maintaining excellent mechanical properties at both elevated and sub-zero temperatures.
Key characteristics include non-magnetic properties even when severely cold worked and outstanding corrosion resistance in harsh environments such as marine applications.
Chemical composition includes 20-23% chromium, 11-13% nickel, 4-6% manganese, and 1.5-3% molybdenum, with balanced iron content and trace elements including carbon, silicon, sulfur, phosphorus, nitrogen, columbium (niobium), and vanadium.
Despite its superior strength, XM-19 can be fabricated using the same equipment and procedures as Stainless Steel 300 grades, with compatible cooling techniques.
Material Conditions
XM-19 is available in three distinct conditions:
- Annealed: Rolled material subjected to annealing process for improved workability
- As-Rolled: Material in its original rolled state without additional processing
- High Strength: Specially processed through lower temperature rolling and cold working for enhanced physical properties
Industry Applications
- Chemical Processing
- Fertilizer Production
- Food Processing
- Marine Applications
- Nuclear Industry
- Petrochemical Processing
- Petroleum Industry
- Pulp and Paper Manufacturing
- Textile Industry
Common Products Using XM-19
- Chains and Cables
- Fasteners and Fittings
- Marine Hardware
- Marine Pump Shafts
- Photographic Equipment
- Positive Displacement Pumps
- Pressure Vessels
- Saltwater Pumps
- Screens and Wire Cloths
- Tanks
- Underwater Robotic Arms
- Valves
Stocking Specifications
| Condition | Stocking Diameters | Material Lengths |
|---|---|---|
| Annealed | 1/2" to 12" | Up to 24' |
| As Rolled | 2" to 6" | Up to 24' |
| High Strength | 1/2" to 8" | Up to 24' |
Chemical Composition Analysis
| C | Mn | P | S | Si | Cr | Ni | Mo | Cu | Other | M/NM |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.06 | 4.0-6.0 | 0.04 | 0.03 | 1.0 | 20.5-23.5 | 11.5-13.5 | 1.5-3.0 | N 0.2-0.4 Cb 0.1-0.3 V 0.1-0.3 |
NM |
