Cold Rolled 405 Stainless Steel Sheet & Plate with 0.3 - 3.0mm Thickness and Corrosion Resistance
Product Details
| Thickness | 0.3 - 3.0mm (cold Rolled), 4.0 - 10.0mm (hot Rolled) | Standard Size | 1000*2000mm, 1219*2438mm (cold Rolled), 1500*6000mm (hot Rolled) |
|---|---|---|---|
| Surface Treatment | 2B, BA, NO.4, Hairline, Mirror, 8K | Chromium Content | 11.5 - 14.5% |
| Carbon Content | 0.08% Max | Manganese Content | 1.0% Max |
| Silicon Content | 1.0% Max | Sulfur Content | 0.03% Max |
| Phosphorus Content | 0.04% Max | Nickel Content | 0.50% Max |
| Aluminum Content | 0.1 - 0.3% | Tensile Strength | 60 Ksi (415 MPa) Min |
| Yield Strength | 25 Ksi (170 MPa) Min | Elongation | 20% Min |
| Density | 0.279 Lbm/in3 | ||
| Highlight | Cold Rolled Stainless Steel Sheet,0.3 - 3.0mm Thickness Stainless Steel Plate,Corrosion Resistant 405 Stainless Steel |
||
Product Description
DIN 1.4002 Stainless Steel Sheet & Plate
Cold rolled stainless steel sheets and plates in stock, available in thickness range 0.3 - 3.0mm with 4ft width.
405 Stainless Steel Specifications
| Products | 405 Stainless Steel Sheet |
|---|---|
| Thickness | Cold rolled: 0.3 - 3.0mm Hot rolled: 4.0 - 10.0mm |
| Standard Size | Cold rolled: 1000×2000mm, 1219×2438mm Hot rolled: 1500×6000mm |
| Surface | 2B, BA, NO.4, Hairline, Mirror 8K, etc. |
| Brand | TISCO, JISCO, POSCO, BAOSTEEL |
| Standard | ASTM A240 / JIS G4305 / EN 10088-2 |
| Other Grades Available | 201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 405, 410, 420, 430, 440, 441, 443, 444, 2205, 2507, etc. |
| Our Services | Slit Cutting, Surface Processing |
405 Stainless Steel Introduction
General Properties
Alloy 405 is a 12% chromium stainless steel designed for use in the as-welded condition. Unlike other 12% chromium stainless grades, 405 is not vulnerable to extensive hardening through air cooling from high temperatures. Specification: UNS S40500
Applications
- Steam nozzles
- Partitions
- Annealing boxes
- Quenching racks
- Fabrications that cannot be annealed after welding
Corrosion Resistance
Provides the same corrosion resistance as Type 410 steel, used in situations where greater weldability is desired than Type 410.
Machinability
Type 405 can be easily machined due to its soft and ductile characteristics.
Weldability
Can be welded using shielded fusion and resistance techniques. Oxyacetylene welding is not recommended. Post weld annealing will maximize ductility.
Chemical Properties
| Element | C | Cr | Fe | Mn | Si | S | P | Ni | Al |
|---|---|---|---|---|---|---|---|---|---|
| 405 | 0.08 max | min: 11.5 max: 14.5 |
balance | 1.0 max | 1.0 max | 0.03 max | 0.04 max | 0.50 max | min: 0.1 max: 0.3 |
Mechanical Properties
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 405 | 60 (415) | 25 (170) | 20 | 179 | 88 |
Physical Properties
| Property | Value |
|---|---|
| Density (lbm/in³) | 0.279 |
| Coefficient of Thermal Expansion (min/in)-°F | 9.2 at 68°F 20.5 at 68-1832°F |
| Thermal Conductivity BTU/hr-ft-°F | 416 at 200°F |
| Specific Heat BTU/lbm-°F | 0.11 at 32-212°F |
| Modulus of Elasticity (annealed) psi | 28 × 10⁶ in tension (E) |
Available Stainless Steel Grades
We supply various stainless grades including 202, ASTM A312 in 304/304L and 316/316L, 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 330, 254SMO, 410. In duplex grades, we supply 2205 and 2507. Nickel alloys such as alloy 200/201, C276, Alloy 400, Alloy 600, Alloy 625, Alloy 800H, Alloy 800HT, 254SMO, AL6XN, titanium alloys, and copper alloys are also available.
405 Stainless Steel Applications
- Measuring, control and monitoring systems in Chemical and Petrochemical Industries
- Shipbuilding
- Offshore Industries
- Paper and Pulp Industries
- Construction
- Architectural
- Decorative
- Vehicle Construction
- Food processing
- Mechanical Engineering
- Roller and conveyors
- Medical
- Street furniture
- Storage and handling
- Various other applications

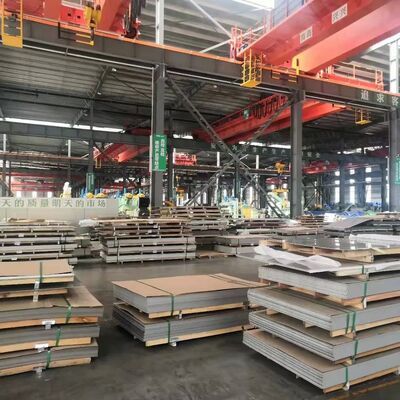

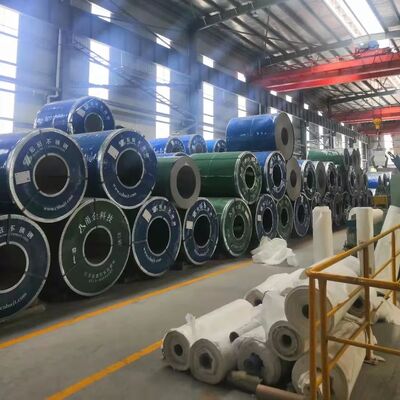

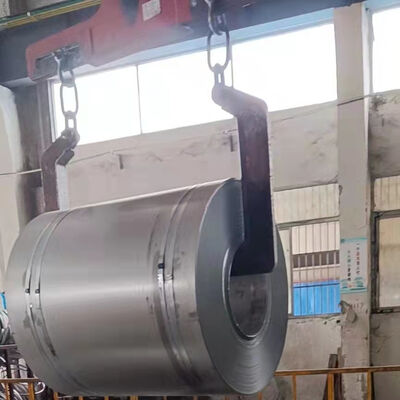

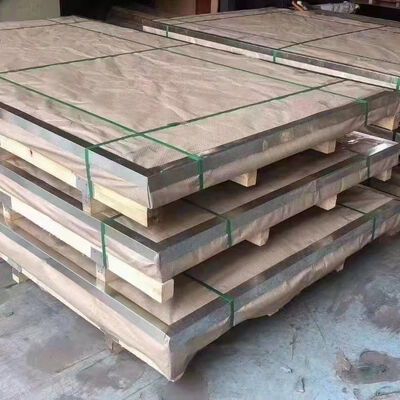

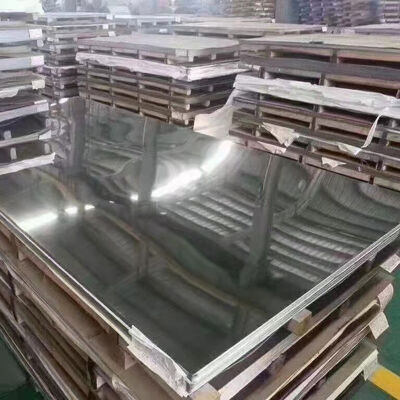

Product Photos
