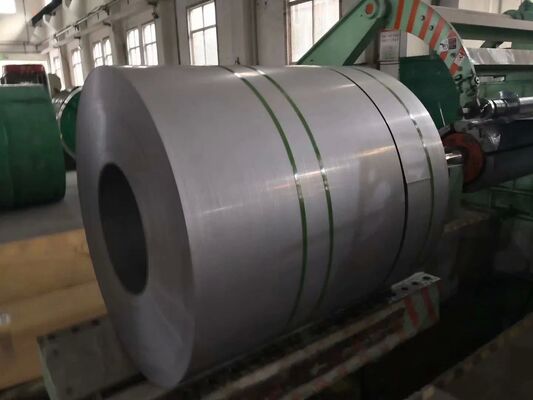

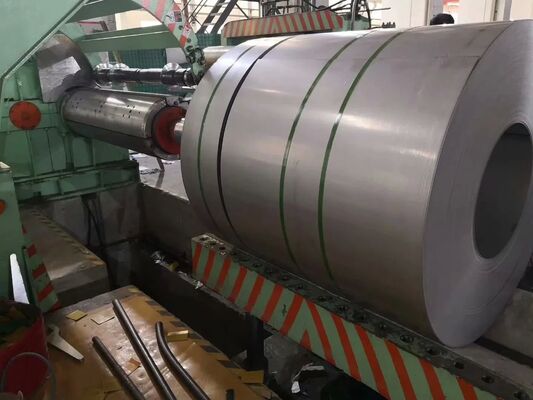

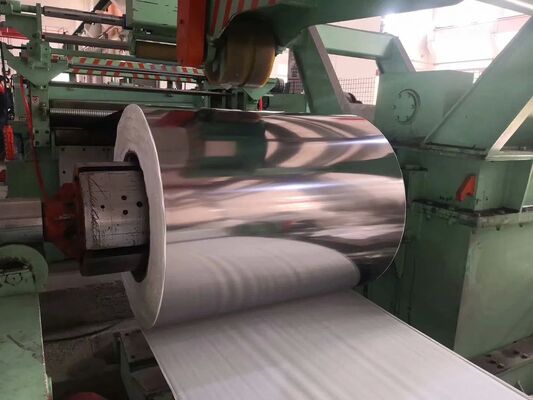

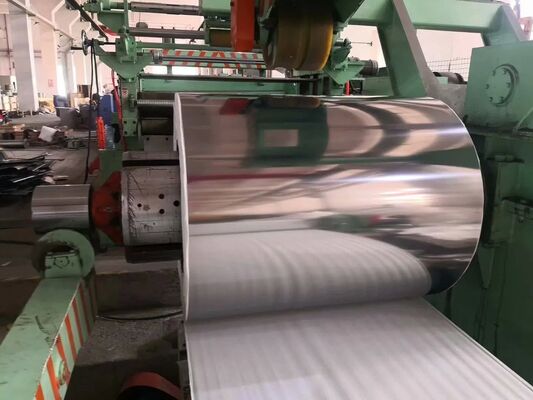

Cold Rolled Corrosion Resistant AISI 444 Stainless Steel Sheet for Water Tank Applications
Product Details
| Model Number | 444 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Carbon Content | 0.025 Max | Chromium Content | 17.50-19.50 |
| Molybdenum Content | 1.75-2.50 | Density | 7.75 G/cm3 |
| Electrical Resistivity | 57 Microhm-cm | Thermal Conductivity | 26.8 W/m•K |
| Tensile Strength | 414 MPa Min | Yield Strength | 276 MPa Min |
| Elongation | 22% Min | ||
| Highlight | Cold Rolled Stainless Steel Sheet,Corrosion Resistant Inox Sheet,Water Tank Application AISI 444 Sheet |
||
Product Description
Cold Rolled 444 Stainless Steel Sheet
AISI 444 Inox Sheet for Water Tank Applications
Product Overview
EN 1.4521 / AISI 444 grade stainless steel is a dual stabilized ferritic stainless steel containing 2% molybdenum. This grade offers excellent corrosion properties comparable to austenitic grades 4401/4404, with higher strength values due to molybdenum alloying.
Key Features
- Excellent corrosion resistance comparable to 316 stainless steel
- Superior resistance to chloride stress corrosion cracking
- Excellent formability and deep drawability
- Dual stabilization with titanium and niobium
- Approved for drinking water applications by German (DVGW) and Swiss (SVGW) authorities
Applications
Food processing equipment, brewery and wine making equipment, hot-water tanks, heat-exchanger tubing, automotive components, solar water heaters, and drinking water systems.
Technical Specifications
Chemical Composition (Typical)
| Element | Content (%) |
|---|---|
| Carbon | 0.025 max |
| Manganese | 1.00 max |
| Silicon | 0.60 |
| Chromium | 17.50-19.50 |
| Nickel | 1.00 max |
| Molybdenum | 1.75-2.50 |
| Titanium + Columbium | 0.20 + 4x (C+N) min - 0.80 max |
| Phosphorus | 0.040 max |
| Sulfur | 0.030 max |
| Iron | Balance |
Physical Properties
| Property | Value |
|---|---|
| Density | 0.28 lbs/in³ (7.75 g/cm³) |
| Electrical Resistivity | 22.50 microhm-in (57 microhm-cm) |
| Specific Heat | 0.102 BTU/lb·°F (0.427 kJ/kg·K) |
| Thermal Conductivity | 15.5 BTU/hr/ft²/ft/°F (26.8 W/m·K) |
| Thermal Expansion | 6.1 × 10⁻⁶ in/in/°F (11.0 µm/m·K) |
| Modulus of Elasticity | 29 × 10³ ksi (200 × 10³ MPa) |
| Magnetic Permeability | Magnetic |
| Melting Range | 2700-2790°F (1482-1532°C) |
Mechanical Properties (Annealed)
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 60 KSI min (414 MPa min) |
| Yield Strength (0.2% offset) | 40 KSI min (276 MPa min) |
| Elongation | 22% min |
| Hardness | Rb 90 max |
Available Forms
Coil - Strip, Foil, Ribbon | Wire - Profile, Round, Flat, Square
Surface Finishes
- #1 - Hot rolled annealed and descaled
- #2D - Dull finish for deep drawn parts
- #2B - Smooth finish with brighter appearance
- BA - Bright annealed cold rolled
- CBA - Course bright annealed matte finish
- 2BA - Smooth glossy finish for formed applications
- Polished - Various grit finishes available
Not all finishes are available for all alloys - Contact sales for availability.
Processing Characteristics
Cold Forming: Excellent formability with superior deep drawing and spin forming capabilities. Limited stretch forming applications.
Welding: Good weldability with minimal heat input required. Austenitic fillers typically used.
Heat Treatment: Non-heat treatable alloy.
