254SMO UNS S31254 Stainless Steel Plate with 0.5-50mm Thickness Cold Rolled and Polished Surface
Product Details
| Model NO. | 254SMO | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Polished |
| Thickness Range | 0.5-50mm | Standard Size | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm |
| Cold Rolled Thickness | 0.3mm-3mm | Hot Rolled Thickness | 3.0mm-80mm |
| Carbon Content | ≤0.02 | Silicon Content | ≤0.80 |
| Manganese Content | ≤1.00 | Phosphorus Content | ≤0.03 |
| Sulfur Content | ≤0.01 | Chromium Content | 19.5-20.5 |
| Nickel Content | 4.5-6.5 | ||
| Highlight | 0.5-50mm Thickness 254SMO Stainless Steel Plate,Cold Rolled 254SMO Stainless Steel Plate,Polished Surface UNS S31254 Stainless Steel Plate |
||
Product Description
254 SMO/UNS S31254 Stainless Steel Plates
W. Nr. 1.4547 | Thickness: 0.5-50mm
Product Specifications
Product Name: 254SMO Stainless Steel Sheet & Plate
Thickness: Cold rolled: 0.3mm-3mm | Hot rolled: 3.0mm-80mm
Standard Size: Cold Rolled: 1000×2000mm, 1219×2438mm, 1500×3000mm
Hot Rolled: 1500×6000mm, 1800×6000mm, 2000×6000mm
Hot Rolled: 1500×6000mm, 1800×6000mm, 2000×6000mm
Service: Cutting, Bending
Surface Finishing
Raw finishing (2B NO.1) | Finishing (HL 8K Checkered, etc.)
Standards
ASTM, AISI, DIN, EN, GB, JIS
Available Grades
- 200 series: 201, 202
- 300 series: 301, 304, 309S, 310S, 316L, 316Ti, 317L, 321, 347
- 400 series: 409, 409L, 410, 420, 430, 431, 439, 441, 443, 444
- Special grades: Duplex 2205, 2507, 904L, 254SMO, 253MA
- Nickel Alloy: C276, C4, Monel 400, 500, 600, 625, 800, 825, etc.
Brands
TISCO, BAOSTEEL, ZPSS, LISCO, JISCO
Applications
Decoration, Industry, Kitchenware, Building, Elevator
Material Description
S31254 F44 1.4547 254SMo Two-Phase Stainless Steel Overview
High molybdenum content combined with elevated chromium and nitrogen levels provide 254SMO with exceptional resistance to pitting and crevice corrosion. Copper additions enhance acid corrosion resistance. The high nickel, chromium, and molybdenum content ensures excellent stress corrosion cracking resistance. Extensive field testing confirms 254SMO maintains high crevice corrosion resistance in seawater, even at elevated temperatures. In acidic solutions and oxidizing halide environments common in paper bleaching processes, 254SMO demonstrates corrosion resistance comparable to premium nickel-based and titanium alloys. The high nitrogen content provides superior mechanical strength compared to standard austenitic stainless steels, while maintaining excellent ductility, impact strength, and weldability.
Chemical Composition
| Element | Content (%) |
|---|---|
| C≤ | 0.02 |
| Si≤ | 0.80 |
| Mn≤ | 1.00 |
| P≤ | 0.03 |
| S≤ | 0.01 |
| Cr≥ | 19.5-20.5 |
| Ni≥ | 4.5-6.5 |
| Mo≥ | 6.0-6.5 |
| N≤ | 0.18-0.22 |
Metallographic Structure
254SMO features a face-centered cubic lattice structure. Standard annealing at 1150-1200°C produces austenitic structure. While minor metal mesophase traces may appear in material centers, they typically don't adversely affect impact strength or corrosion resistance. Grain boundary precipitation may occur at 600-1000°C.
Corrosion Resistance
Very low carbon content minimizes carbide precipitation risk. Passes Strauss Test ASTMA262 specification E even after sensitization at 600-1000°C. Superior to 316 stainless steel in pure sulfuric acid and outperforms 904L in chloride-containing sulfuric acid. Suitable for diluted hydrochloric acid applications at normal temperatures. Maintains corrosion resistance across wide concentration and temperature ranges in fluorosilicic and hydrofluoric acids.
Processing Services
Surface Finishing
Mirror Polishing, Hairline Finishing, SB, NO.4, Santi Finishing, Anti-finger Print, PVC film Cover, Titanium Colored, Checkered Finishing
Cutting Services
Laser Cutting, Waterjet Cutting, Plasma Cutting, Machine Cutting, Slit Cutting
Bending Services
Bending range thickness within 30mm
Welding Services
All types of welding processes available
Packing and Delivery
Sheet Packing Options
- Type 1: Wooden pallets with waterproof paper
- Type 2: Wooden pallets with waterproof paper + steel corner protection
- Type 3: Wooden pallets with waterproof paper + steel corner + wooden plates cover
- Type 4: Wooden box packaging
Each pallet loads approximately 1.5-2 tons
Coil Packing
Coils and strips are loaded on #-shaped wooden frames. Surfaces are protected with waterproof paper and plastic film. Each frame accommodates up to 6 tons.

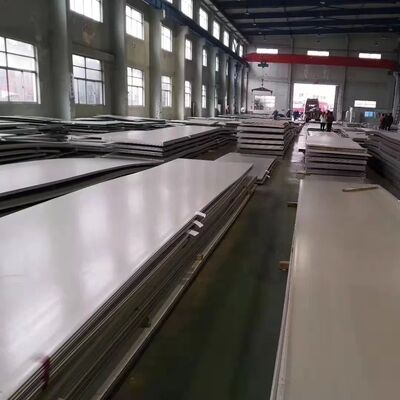

Product Gallery
Trade Information
| Parameter | Details |
|---|---|
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT deposit |
| Delivery Time | 20-30 days after deposit receipt |
| Sample | Free samples, express charges borne by customer |
| Packaging | Standard export package with waterproof paper, metal pallet, angle bar protection, steel strip |
Company Information
We are authorized agents for TISCO, POSCO, ESS, BAOSTEEL, JISCO, TSINGSHAN, YGJF, LISCO, HONGWANG, BENSTEEL, and other major domestic steel manufacturers. We also serve as China dealers for internationally renowned mills including ACERINOX, OUTOKUMPU, Thyssen Krupp, APERAM, NISSHIN, NSSC, and Nippon Yakin Kogyo.
Our product portfolio includes 200, 300, and 400 series stainless steel, high-temperature alloys, nickel-based alloys, corrosion-resistant alloys, precision alloys, special alloy steels, cobalt-based alloys, and super austenitic and duplex stainless steels. Product forms include round steel, forgings, steel pipe, steel plate, precision steel strip, flanges, pipe fittings, and fasteners.
All materials are manufactured and tested in strict compliance with ASTM/ASME (American standard), GB (Chinese standard), JIS (Japanese standard), and other international standards. We maintain extensive inventories of nickel-based alloys and high-temperature alloys, including round steel, tube billets, and imported steel plates in various specifications. We also supply imported welding wire and rods to support desulfurization and denitrification projects, petroleum, and petrochemical equipment requirements.
Industry Applications
Petrochemical, Aerospace, Military Equipment, Power Plant Metallurgy, Desulfurization Systems, Chemical Fiber Machinery, Papermaking Machinery, Pharmaceutical Equipment, Food Industry, Ocean Transportation, Chemical Ships, Food Machinery
