Bright Finishing 430 Stainless Steel Sheet 0.3 - 3.0mm Cold Rolled SS Sheet Mirror Finish
Product Details
| Model NO. | 430 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Thickness | 0.3 - 3.0mm | Standard Size | 1000*2000mm, 1219*2438mm, 1500*6000mm |
| Surface | 2B BA NO.4 Hailrline Mirror 8K | Tensile Strength | 483 MPa |
| Yield Strength | 310 MPa | Elongation | 22% |
| Hardness | 85 HR B | Density | 7750 Kg/m3 |
| Elastic Modulus | 200 GPa | Thermal Conductivity | 26.1 W/m.K |
| Electrical Resistivity | 600 NΩ.m | ||
| Highlight | Bright Finishing Stainless Steel Sheet,0.3 - 3.0mm 430 Stainless Steel Sheet,Cold Rolled SS Sheet |
||
Product Description
Bright Finishing 430 BA Stainless Steel Sheet
High-quality mirror stainless steel sheets available in thickness range 0.3 - 3.0mm with bright annealed (BA) surface finish.
Product Specifications
Product
430 Stainless Steel Sheet
Thickness
Cold rolled: 0.3 - 3.0mm
Hot rolled: 4.0 - 10.0mm
Hot rolled: 4.0 - 10.0mm
Standard Size
Cold rolled: 1000×2000mm, 1219×2438mm
Hot rolled: 1500×6000mm
Hot rolled: 1500×6000mm
Surface Finish
2B, BA, NO.4, Hairline, Mirror 8K, etc.
Brand
TISCO, JISCO, POSCO, BAOSTEEL
Standard
ASTM A240 / JIS G4305 / EN 10088-2
Available Grades
201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 430, 440, 441, 443, 444, 2205, 2507, etc.
Our Services
Slit cutting, surface processing, and custom fabrication services available.
430 Stainless Steel Introduction
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, belonging to the ferritic group of steels. Known for its good corrosion resistance and formability, coupled with practical mechanical properties, it can be used in various chemical applications.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 430 | - 0.12 | - 1 | - 1 | - 0.04 | - 0.030 | 16 - 18 | - | - 0.50 | - |
| 430F | - 0.12 | - 1.25 | - 1 | - 0.06 | 0.15 - | 16 - 18 | - | - | - |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 430 | 483 | 310 | 22 | 85 | 183 |
| 430F | 552 typical | 379 typical | 25 typical | - | 262 |
Physical Properties
| Grade | Density (kg/m³) | Elastic Modulus (GPa) | Thermal Expansion (μm/m/°C) 0-100°C | Thermal Expansion (μm/m/°C) 0-315°C | Thermal Expansion (μm/m/°C) 0-538°C | Thermal Conductivity (W/m.K) at 100°C | Thermal Conductivity (W/m.K) at 500°C | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) |
|---|---|---|---|---|---|---|---|---|---|
| 430 | 7750 | 200 | 10.4 | 11.0 | 11.4 | 26.1 | 26.3 | 460 | 600 |
| 430F | 7750 | 200 | 10.4 | 11.0 | 11.4 | 26.1 | 26.3 | 460 | 600 |
Applications
- Dish washer linings
- Refrigerator cabinet panels
- Element supports and fasteners
- Stove trim rings and chimney liners
- Automotive trim and lashing wires

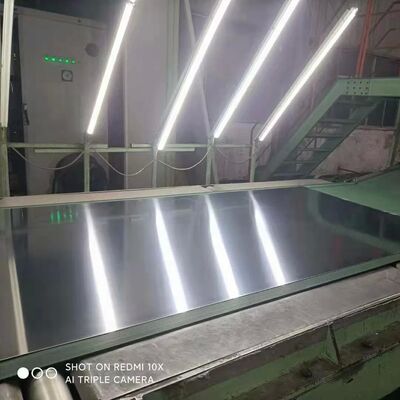

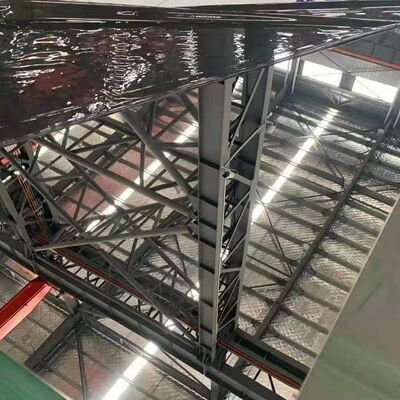

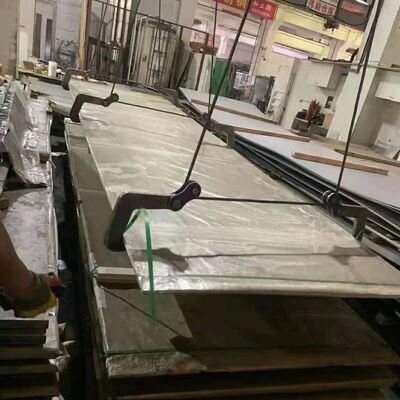

Product Images
