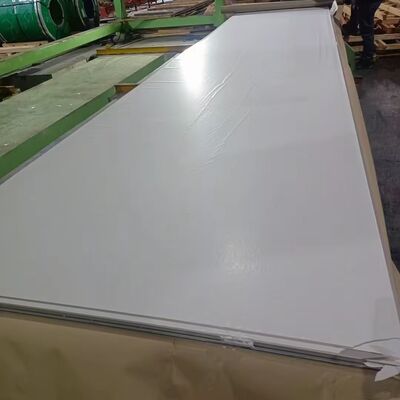

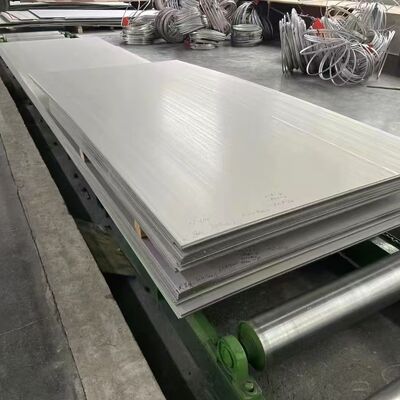

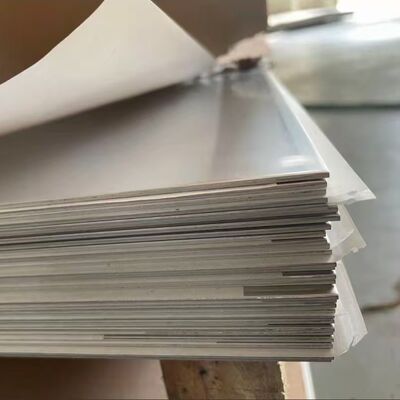

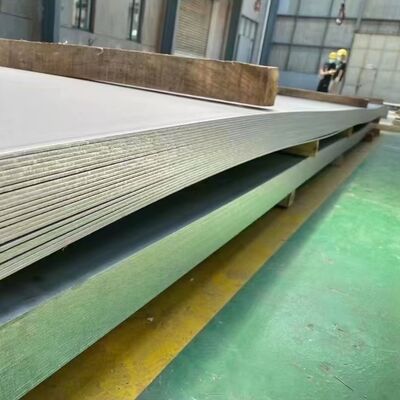

1000*2000mm 1219*2438mm 1500*6000mm Duplex 2507 Stainless Steel Sheet SS Plate ASTM A240 Standard
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL TISCO |
| Certification | ISO |
| Model Number | S32750 / 2507 |
| Minimum Order Quantity | 50 kgs |
| Price | 5 - 8 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Duplex Stainless Steel Sheet | Grade | 2507 / S32750 |
|---|---|---|---|
| Thickness | 1.0 - 30.0mm | Tech | Cold Rolled,hot Rolled , Forged |
| Width | 1000mm 1219mm 1500mm Or Customs As Request | Surface | 2B NO.1 |
| Standard | ASTM GB JIS EN DIN | MOQ | 1 Ton |
| Highlight | Duplex 2507 stainless steel sheet,ASTM A240 stainless steel plate,1500x6000mm stainless steel sheet |
||
Product Description
1000*2000mm 1219*2438mm 1500*6000mm Duplex 2507 Stainless Steel Sheet SS Plate ASTM A240 Standard
Stainless Steel Sheet Specifications
| Name | Duplex stainless steel sheet |
| Our Grade |
200 Series: 201 202 300 Series: 301 304,304L,304H,309S,310S,314,316L,316Ti,316H,316LN,317L,321,329,347 400 Series: 409L,410,410S,416,420,430,431,436L.439,441,443,444,445,446 Duplex: 2205 2507 2304 2101 2550 Super Stainless Steel: 904L,926,254SMO,654SMO,15-5PH,17-4PH,17-7PH.etc Nickel Alloy: C276, C22,G35,Alloy X,Monel 400,K500,Inconel 600,601,617,625,718,Incoloy 800,800H,800HT,825.etc |
| Technique | Hot Rolled, Cold Rolled,Forged |
| Standard | JIS, AISI, ASTM, DIN, TUV, BV, SUS, etc |
| Thickness | 0.1 – 80.0mm |
| Width range | 10mm – 2000mm |
| Length | Customized |
| Finish | 2B, BA, No.4, 8k, Brushed,Hairline,PVD Coating,Sandblasted |
| Service | Laser Cutting, Bending |
| Sample | Available |
Regular Size of Our Duplex Stainless Steel Sheet in Stock
| Grade | Thickness | Size | Surface | Actual Thickness |
| 2507 | 1.0mm | 1219*2438mm | 2B | 0.92 |
| 2507 | 1.2mm | 1219*2438mm | 2B | 1.12 |
| 2507 | 1.5mm | 1219*2438mm | 2B | 1.45 |
| 2507 | 2.0mm | 1219*2438mm | 2B | 1.91 |
| 2507 | 2.5mm | 1219*2438mm | 2B | 2.38 |
| 2507 | 3.0mm | 1219*2438mm | 2B | 2.88 |
| 2507 | 4.0mm | 1500*6000mm | NO.1 | 3.85 |
| 2507 | 5.0mm | 1500*6000mm | NO.1 | 4.75 |
| 2507 | 6.0mm | 1500*6000mm | NO.1 | 5.75 |
| 2507 | 8.0mm | 1500*6000mm | NO.1 | 7.75 |
| 2507 | 10.0mm | 1500*6000mm | NO.1 | 9.75 |
| 2507 | 12.0mm | 1500*6000mm | NO.1 | 11.5-11.75 |
| 2507 | 14.0mm | 1500*6000mm | NO.1 | 13.75 |
| 2507 |
16.0mm |
1500*6000mm | NO.1 | 15.5-15.75 |
| 2507 | 20.0mm | 1500*6000mm | NO.1 | 19.5-20 |
| 2507 | 25.0mm | 1500*6000mm | NO.1 | 24.5-25 |
| 2507 | 30.0mm | 1500*6000mm | NO.1 | 29.5-30 |
Duplex 2507 Stainless Steel Sheet & Plate – Standard Sizes: 1000×2000mm, 1219×2438mm, 1500×6000mm | ASTM A240 Certified
Product Introduction
We supply premium-grade Duplex 2507 (UNS S32750) stainless steel sheets and plates in globally recognized standard dimensions—including 1000×2000 mm, 1219×2438 mm (4'×8'), and 1500×6000 mm—all manufactured to ASTM A240/A240M specifications. These super duplex plates offer exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for demanding applications in offshore oil & gas, chemical processing, desalination, marine engineering, and power generation.
With a dual-phase microstructure of approximately 50% ferrite and 50% austenite, Alloy 2507 delivers twice the yield strength of conventional austenitic stainless steels like 316L, while maintaining excellent weldability and fabricability when proper procedures are followed.
All our stock is mill-certified, fully traceable, and available in thicknesses from 1.0 mm to 30.0 mm, with options for custom cutting, surface finishing, and value-added services.
Key Features & Benefits
- ✅ ASTM A240 / ASME SA-240 compliant
- ✅ NACE MR0175/ISO 15156 certified for sour service environments
- ✅ PREN ≥ 40 – among the highest corrosion resistance in stainless steel family
- ✅ High strength-to-weight ratio enables lighter, more efficient designs
- ✅ Excellent performance in chloride-rich seawater and acidic media
- ✅ Available in standard international sheet/plate sizes for global compatibility
Standard Dimensions Offered
| Size (mm) | Equivalent (Inches) | Common Use Case |
|---|---|---|
| 1000 × 2000 | ~39" × 79" | Small fabrications, lab equipment, OEM components |
| 1219 × 2438 | 4' × 8' | North American standard; ideal for modular construction, tanks, panels |
| 1500 × 6000 | ~59" × 236" | Heavy industrial projects, offshore structures, large vessels |
Technical Specifications
Chemical Composition (Typical – wt%, per ASTM A240)
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 24.0–26.0 |
| Nickel (Ni) | 6.0–8.0 |
| Molybdenum (Mo) | 3.0–5.0 |
| Nitrogen (N) | 0.24–0.32 |
| Carbon (C) | ≤0.030 |
| Manganese (Mn) | ≤1.20 |
| Silicon (Si) | ≤0.80 |
| Phosphorus (P) | ≤0.035 |
| Sulfur (S) | ≤0.020 |
| Iron (Fe) | Balance |
Mechanical Properties (Solution Annealed Condition)
| Property | Minimum / Typical Value |
|---|---|
| Tensile Strength | 800–1000 MPa |
| Yield Strength (0.2% offset) | ≥550 MPa |
| Elongation | ≥25% |
| Hardness | ≤290 HB |
| Density | 7.8 g/cm³ |
| PREN | ≥40 |
Surface Finishes Available
| Finish Code | Description | Typical Applications |
|---|---|---|
| No.1 | Hot-rolled, annealed, descaled | Structural, industrial |
| 2B | Cold-rolled, annealed, pickled + light skin-pass | General purpose, forming |
| BA | Bright annealed (mirror-like) | Architectural, decorative |
| No.4 | Brushed finish | Panels, enclosures |
| 2D | Matte finish, cold-rolled & annealed | Industrial, non-cosmetic |
Custom finishes (e.g., hairline, embossed, coated) available on request.
Common Industrial Applications by Size
| Plate Size (mm) | Typical Applications |
|---|---|
| 1000×2000 | Instrument panels, pump casings, small heat exchangers, laboratory reactors |
| 1219×2438 (4'×8') | Modular skids, chemical storage cabinets, offshore platform grating supports, HVAC ducting in corrosive zones |
| 1500×6000 | Large pressure vessels, seawater intake screens, desalination plant frames, subsea pipeline cladding backing plates |
Quality Assurance & Certification
Every batch includes:
- Mill Test Report (MTR) per EN 10204 3.1 or 3.2
- Positive Material Identification (PMI) via XRF or OES
- Ultrasonic Testing (UT) for internal defects (optional)
- Full compliance with ASTM A240, ASME Section II Part A, and NACE MR0175
Material origin: European, Japanese, or domestic mills—fully disclosed upon order.
Customization & Value-Added Services
Beyond standard sizes, we offer:
- Precision cutting: Laser, waterjet, or plasma to exact CAD drawings
- Edge preparation: Beveling, milling, deburring
- Bending & rolling: For cylindrical or curved components
- Packaging: Export-standard wooden crates with moisture barrier and VCI protection
- Just-in-time delivery: For large-scale projects
Minimum order: 1 piece for cut parts; 500 kg for mill-direct orders.
Why Choose Our 2507 Plates?
- Global standard sizes ensure seamless integration into international projects
- Rigorous quality control from melt to shipment
- In-house processing reduces lead time and cost
- Full documentation for audits, certifications, and regulatory compliance
- Technical support from metallurgical engineers for material selection and fabrication guidance
Order Information
- Thickness Range: 1.0 mm – 30.0 mm
- Lead Time:
- Stock items: 3–7 working days
- Mill production: 4–6 weeks
- Shipping: Worldwide via air, sea, or land (FOB, CIF, DAP terms available)
- Payment: T/T, L/C, or credit terms for qualified buyers
Contact us today for a free quote, sample, or material compatibility review for your next high-corrosion project.
Conclusion
Whether you're building a subsea manifold, a chemical reactor, or a seawater desalination unit, our ASTM A240-certified Duplex 2507 stainless steel sheets and plates in standard sizes (1000×2000mm, 1219×2438mm, 1500×6000mm) provide the strength, durability, and corrosion resistance required to thrive in the world’s most aggressive environments.
Duplex 2507 stainless steel sheet 1000x2000mm, 1219x2438mm 2507 plate ASTM A240, 1500x6000mm super duplex sheet, UNS S32750 plate standard size, 4x8 ft Alloy 2507 sheet, ASTM A240 S32750 stainless steel, offshore grade 2507 plate, high corrosion resistant duplex steel, 2507 sheet supplier, NACE compliant 2507 plate.
