Monel 400 Nickel Alloy Strips Thickness 0.1 - 3.0mm Cold Rolled ASTM EN DIN Standard
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Strip | Grade | Monel 400 |
|---|---|---|---|
| Thickness | 0.1 - 3.0mm | Width | Custom Slit Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B BA |
Product Description
Monel 400 Nickel Alloy Strips Thickness 0.1 - 3.0mm Cold Rolled ASTM EN DIN Standard
Products Specification
| Products Name | Monel 400 Nickel Alloy Strips |
| Thickness | 0.1 - 3.0mm |
| Width | within 1219mm |
| Surface | 2B |
| MOQ | 50 kgs |
| Service | Cutting, Surface Finishing |

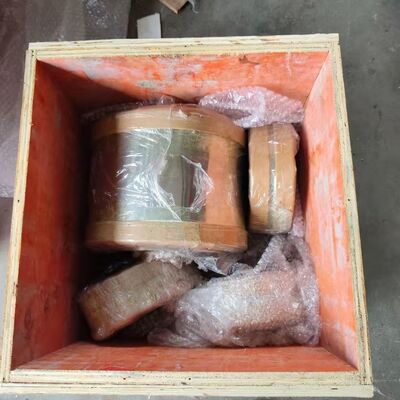

| Packing | Waterproof paper and wooden pallets |
| Loading Port | Shanghai Port |
| Price term | FOB CFR CIF EXW |
| Payment term | 30% TT in advance , 70% TT balance against copy of B/L |
| Main Grade | Hastelloy C22 C4 X C276 G35 |
| Monel 400 K500 | |
| Incoloy 800 800H 800HT 825 925 | |
| Inconel 600 601 617 625 716 718 | |
| Stainless Steel Grade | 201 202 301 304L 309S 310S 316L 316Ti 317L 321 347 409L 410 410S 420J1 420J2 430 431 436L 439 440A/B/C 441 443 444 2205 2507 904L 254SMO 253MA |
Monel 400 Nickel Alloy Strips Thickness 0.1 – 3.0mm Cold Rolled ASTM EN DIN Standard
Product Overview
Monel 400 nickel alloy strips are high-performance, corrosion-resistant materials engineered for demanding industrial applications. Manufactured through precision cold rolling processes, these strips offer exceptional mechanical strength, thermal stability, and outstanding resistance to seawater, acids (including hydrofluoric and sulfuric acid), alkalis, and reducing environments. With thicknesses ranging from 0.1 mm to 3.0 mm, Monel 400 strips meet international standards including ASTM, EN, and DIN, ensuring global compatibility and reliability.
Ideal for use in marine engineering, chemical processing, oil & gas, aerospace, and nuclear industries, Monel 400 strips combine durability with excellent formability and weldability—making them a top choice for critical components exposed to harsh conditions.
Key Features
- Corrosion Resistance: Resists pitting, crevice corrosion, and stress-corrosion cracking—even in seawater and HF acid.
- Mechanical Strength: High tensile and yield strength maintained across wide temperature ranges (-100°C to +600°C).
- Cold Workability: Excellent ductility allows deep drawing, bending, and stamping without cracking.
- Dimensional Accuracy: Tight tolerances achieved via advanced cold rolling technology.
- Standards Compliance: Certified to ASTM B127, EN 10088, DIN 2.4360 (NiCu30Fe), and UNS N04400.
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Material Grade | Monel 400 (UNS N04400, W.Nr. 2.4360) |
| Common Names | Alloy 400, NiCu30Fe, NW4400, MCu-28-1.5-1.8 |
| Thickness Range | 0.1 mm – 3.0 mm |
| Width (Customizable) | 10 mm – 600 mm (standard); wider on request |
| Surface Finish | Bright annealed, pickled, or as-rolled |
| Temper Conditions | Annealed (O), 1/4 Hard, 1/2 Hard, Full Hard |
| Density | 8.80 g/cm³ |
| Melting Range | 1300–1350°C |
| Tensile Strength (min) | ≥ 480 MPa |
| Yield Strength (0.2% PS) | ≥ 195 MPa |
| Elongation (min) | ≥ 35% |
| Hardness (HB) | 135–179 |
Chemical Composition (Typical %)
| Element | Ni | Cu | Fe | Mn | C | Si | S |
|---|---|---|---|---|---|---|---|
| Min | 63.0 | 28.0 | — | — | — | — | — |
| Max | — | 34.0 | 2.5 | 2.0 | 0.30 | 0.50 | 0.024 |
Note: Balance is primarily nickel.
Applicable Standards
| Region | Standard Designation |
|---|---|
| USA | ASTM B127, ASTM B164, ASME SB-127 |
| Europe | EN 10088-3, DIN 2.4360 |
| Germany | DIN 1743, Werkstoff Nr. 2.4360 |
| Japan | JIS NW4400 |
| ISO | ISO 6208 |
Common Applications
- Heat exchangers & condenser tubes in marine systems
- Chemical reactor linings and piping
- Seawater valves, pump shafts, and fasteners
- Aerospace fuel system components
- Nuclear waste handling equipment
- Precision springs and electrical contacts in corrosive environments
Why Choose Our Monel 400 Strips?

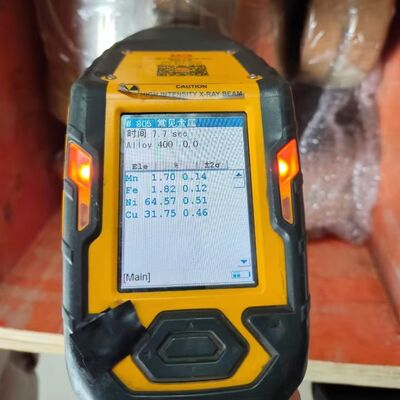

✅ Mill Test Certified – Full traceability with chemical & mechanical test reports
✅ Custom Sizes Available – Tailored width, thickness, temper, and coil weight
✅ Global Shipping – Packaged per export standards (VCI paper, wooden crates)
✅ ISO 9001:2015 Certified Production
Monel 400 strip, nickel copper alloy strip 0.1mm, cold rolled Monel 400, ASTM B127 strip, DIN 2.4360 steel band, UNS N04400 thin strip, corrosion resistant nickel alloy tape, Monel 400 foil 3mm, EN standard nickel strip, marine grade alloy strip.
