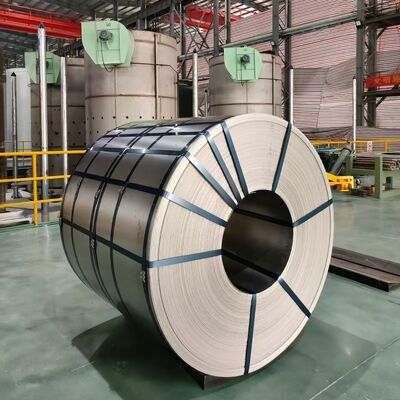

309S Austenitic Stainless Steel Sheet, Cold Finished – Ideal for Heat-Resistant Components and Welding Fabrication

309S Austenitic Stainless Steel Sheet, Cold Finished – Ideal for Heat-Resistant Components and Welding Fabrication

Introduction

309S austenitic stainless steel sheet, cold finished, is a high-performance alloy engineered for demanding environments that require exceptional resistance to oxidation, corrosion, and elevated temperatures. As a low-carbon variant of Type 309 stainless steel, 309S offers superior weldability and reduced susceptibility to intergranular corrosion—making it an ideal choice for applications involving welding fabrication and continuous exposure to high heat.

This comprehensive guide explores the chemical composition, mechanical and physical properties, key advantages, common industrial applications, and procurement considerations of cold-finished 309S stainless steel sheet—all optimized for clarity, technical accuracy, and SEO best practices to align with Google’s E-E-A-T (Experience, Expertise, Authoritativeness, Trustworthiness) guidelines.

What Is 309S Stainless Steel?

309S stainless steel (UNS S30908, ASTM A240/A240M) is an austenitic chromium-nickel stainless steel with a nominal composition of 23% chromium and 13% nickel. Its designation “S” indicates a low carbon content (typically ≤0.08%), which minimizes carbide precipitation during welding and high-temperature service. This significantly enhances resistance to intergranular corrosion, especially in the heat-affected zone (HAZ) of welded joints.

Common alternative designations include:

• Chinese GB/T: 0Cr23Ni13
• European EN: 1.4833
• Japanese JIS: SUS 309S

Due to its robust high-temperature performance, 309S is frequently classified as a heat-resistant stainless steel, capable of continuous service up to 980°C (1796°F) in oxidizing atmospheres.

Key Features of Cold-Finished 309S Stainless Steel Sheet

Cold finishing imparts enhanced surface quality, dimensional accuracy, and mechanical strength compared to hot-rolled counterparts. Below are the defining characteristics of cold-finished 309S sheets:

Chemical Composition (ASTM A240 Standard)

The precise alloying elements in 309S are critical to its performance. The typical composition is as follows:

Note: The low carbon content (<0.08%) is the key differentiator from standard 309, preventing chromium carbide formation at grain boundaries during welding or high-temp exposure.

Mechanical Properties (Typical Values at Room Temperature)

These values may vary slightly based on cold-work level and final annealing conditions.

Physical Properties

The relatively low thermal conductivity and high expansion coefficient must be considered during welding and thermal cycling design.

Why Choose 309S Over Other Stainless Grades?

309S outperforms 304 and 316 in high-temperature oxidation resistance due to its higher Cr/Ni ratio, forming a more stable and protective oxide layer.

Primary Applications

Thanks to its dual strengths in heat resistance and weld integrity, 309S cold-finished sheet is widely used across industries:

1. Thermal Processing Equipment

• Furnace linings, radiant tubes, muffles
• Annealing covers and retorts

2. Power Generation & Petrochemical

• Boiler baffles, heat exchangers
• Flue gas handling systems

3. Automotive & Aerospace

• Exhaust manifolds (high-end)
• Afterburner components

4. Welding Fabrication

• Cladding layers over carbon steel
• Transition joints between dissimilar metals (e.g., carbon steel to 310SS)

5. Industrial Ovens & Kilns

• Conveyor belts, support trays
• Insulation support pins

Design Tip: When joining 309S to lower-alloy steels, use ER309L filler wire to prevent dilution-induced cracking.

Advantages of Cold-Finished 309S Sheet

1. Superior Surface Quality: Ideal for visible or precision-fit components.
2. Enhanced Strength: Cold working increases yield strength without compromising ductility.
3. Consistent Thickness: Critical for sealing surfaces and heat transfer efficiency.
4. Reduced Machining Needs: Often ready for direct fabrication, lowering production costs.
5. Excellent Oxidation Resistance: Forms a dense Cr₂O₃ scale that self-repairs in oxygen-rich environments.

Limitations & Considerations

• Not suitable for marine/saltwater environments: Lacks molybdenum (unlike 316), so pitting resistance is limited.
• Thermal fatigue sensitivity: Repeated heating/cooling cycles may cause distortion if not properly supported.
• Higher cost: Due to elevated Ni/Cr content, 309S is more expensive than standard 304/316 grades.

Fabrication Guidelines

Welding

• Preferred Methods: GTAW (TIG), GMAW (MIG), SMAW (stick)
• Filler Metals: ER309L, E309-16/15
• Preheat: Generally not required
• Post-Weld Heat Treatment: Not necessary for corrosion resistance

Forming

• Can be formed using standard shop equipment
• Springback is moderate; account for in die design
• Annealing after severe cold work restores ductility

Machining

• Lower machinability than 303 (free-machining grade)
• Use sharp tools, slow speeds, and ample coolant

Procurement Specifications (What to Specify When Ordering)

When sourcing cold-finished 309S stainless steel sheet, include the following details:

• Standard: ASTM A240/A240M or ASME SA-240
• Grade: UNS S30908 (309S)
• Finish: e.g., 2B, BA, No. 4
• Thickness: e.g., 1.0 mm to 6.0 mm (common range)
• Width & Length: Custom or standard mill sizes
• Certification: Mill Test Report (MTR) per EN 10204 3.1
• Edge Condition: Slit edge, mill edge, or deburred

Reputable suppliers include Outokumpu, Acerinox, Nippon Steel, and specialized distributors like Shanghai Yingmeng Steel or Tianjin KaiYiHeng.

SEO-Optimized Summary for Google Visibility

309S austenitic stainless steel sheet, cold finished, delivers unmatched performance in high-temperature welding and heat-resistant applications. With 23% chromium and 13% nickel, plus ultra-low carbon content, it resists oxidation up to 980°C and prevents weld decay. Ideal for furnace parts, exhaust systems, boiler components, and dissimilar metal welding, this cold-rolled sheet offers tight tolerances, smooth finishes, and excellent formability. Compliant with ASTM A240, 309S is the go-to solution when 304 or 316 stainless steels fall short under thermal stress.

Conclusion

For engineers, fabricators, and procurement professionals seeking a reliable, weldable, and heat-tolerant stainless steel, cold-finished 309S sheet stands out as a premium material choice. Its balanced composition ensures long-term durability in aggressive thermal environments while maintaining ease of fabrication. By understanding its properties, limitations, and optimal use cases, stakeholders can maximize performance, safety, and cost-efficiency in high-value industrial systems.
