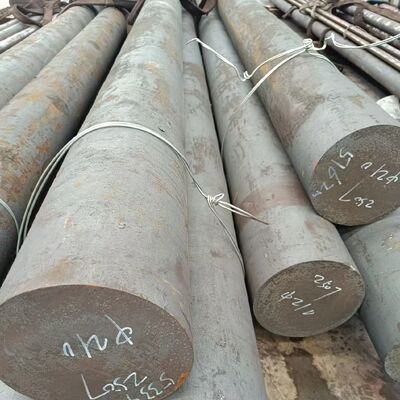

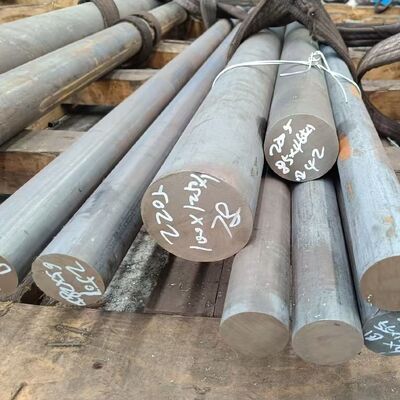

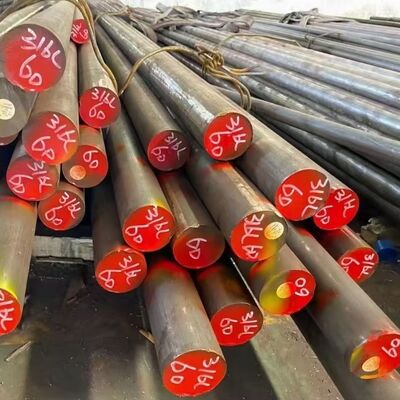

Precision Ground 416 Stainless Steel Round Bar High Machinability & Corrosion Resistance

Product Introduction

For applications demanding tight tolerances, smooth surface finishes, and exceptional machinability, Precision Ground 416 Stainless Steel Round Bars offer a superior engineered solution. Unlike standard hot-rolled bars, these precision-ground rods undergo secondary machining processes to achieve exact dimensional accuracy, low surface roughness, and consistent straightness—making them ideal for high-performance shafts, spindles, valve components, and automated manufacturing systems.

Grade 416 stainless steel is a free-machining martensitic stainless steel, distinguished by its added sulfur content that dramatically improves chip breakability and tool life during CNC turning, milling, or drilling. While it doesn’t match the corrosion resistance of austenitic grades like 304 or 316, 416 provides adequate protection in mild atmospheric or dry environments, especially when properly finished or passivated.

Our precision-ground 416 bars are manufactured to meet stringent international standards (ASTM A276, ISO 683-17, DIN 17440) and are available in diameters from 6 mm to 150 mm, with standard lengths of 3 meters (custom lengths up to 6m available). Each bar is centerless ground to tight tolerances (typically h8 or h9) and features a surface roughness of Ra ≤ 0.8 µm, ensuring immediate usability without additional finishing.

Why Choose Precision Ground 416 Over Hot-Rolled?

Key Insight: While hot-rolled bars are economical for bulk stock, precision-ground bars reduce downstream machining time by up to 60%, making them more cost-effective in high-volume or high-accuracy production.

Key Advantages

• ✅ Ultra-High Machinability: Best-in-class among stainless steels—ideal for high-speed CNC operations.
• ✅ Tight Tolerances: Eliminates need for secondary grinding or turning.
• ✅ Smooth Surface: Reduces friction, wear, and risk of stress concentration.
• ✅ Consistent Quality: Batch-to-batch uniformity in hardness and dimensions.
• ✅ Magnetic & Heat-Treatable: Enables use in electromagnetic assemblies and hardened components.

Typical Applications

Note: Not recommended for continuous exposure to saltwater, acids, or chlorides.

Chemical Composition (ASTM A276 / UNS S41600)

The deliberate addition of sulfur forms manganese sulfide inclusions that act as chip breakers during cutting—this is what gives 416 its “free-machining” character.

Mechanical Properties (As-Supplied, Annealed Condition)

After heat treatment (quench & temper), hardness can reach 30–38 HRC with tensile strength >900 MPa—ideal for wear-resistant shafts.

Precision Ground Specifications

Comparison: 416 vs Other Free-Machining Grades

Machinability Index: Based on AISI 1112 = 100. Higher = easier to machine.

Takeaway: 416 offers the best balance of stainless properties and machinability when magnetism and moderate corrosion resistance are acceptable.

Heat Treatment Recommendations

Although supplied in annealed condition for optimal machinability, 416 can be hardened for demanding applications:

1. Annealing (for stress relief):

   • 650–760°C → slow cool
   • Maintains softness for further machining

2. Hardening:

   • Austenitize at 925–1010°C → oil quench
   • Achieves ~40 HRC

3. Tempering:

   • 150–650°C (avoid 425–595°C embrittlement range)
   • Adjust based on required toughness vs. strength

Precision-ground bars may experience slight distortion during hardening; post-heat-treatment grinding is sometimes needed for critical fits.

Packaging & Quality Assurance

• Packaging: Individually wrapped in VCI paper, bundled in wooden crates or steel racks.
• Marking: Laser-etched with grade, diameter, heat number, and length.
• Inspection: 100% dimensional check via laser micrometer; random hardness testing.
• Certification: Full chemical & mechanical test report (MTC) included.
• Traceability: Heat-number tracking from melt to delivery.

Frequently Asked Questions (FAQ)

Q: Can precision-ground 416 bars be used in food-grade applications?
A: Only in dry or non-contact zones. For wet or acidic food processing, use 304/316 with FDA compliance. 416 lacks sufficient corrosion resistance for direct food contact in humid environments.

Q: What’s the difference between “ground” and “polished” finish?
A: Ground = dimensionally accurate with fine matte finish (Ra 0.4–0.8 µm). Polished = decorative mirror finish (Ra < 0.1 µm) but not dimensionally controlled. We offer both upon request.

Q: Do you provide passivation for 416 bars?
A: Yes. Although 416 responds less effectively to passivation than 300-series steels, we offer citric or nitric acid passivation to enhance surface oxide layer and improve mild corrosion resistance.

Q: What’s the minimum order quantity?
A: As low as 1 piece for standard sizes. Bulk discounts apply for orders >500 kg.

Q: Are your bars tested for sulfur distribution?
A: Yes. We perform macro/micro analysis to ensure uniform sulfide dispersion—critical for consistent machinability.

Technical Support & Customization

We offer:

• Custom diameters: e.g., 12.7 mm (½"), 25.4 mm (1"), or metric equivalents
• Special tolerances: h6, h7 for bearing fits
• Surface treatments: Passivation, oil coating, black oxide
• Cutting services: CNC sawing to ±0.1 mm length tolerance
• Material substitution advice: Help choose between 416, 420F, or 303 based on your needs

SEO-Optimized Keywords (Naturally Integrated)

• Precision ground 416 stainless steel bar
• 416 SS round rod h8 tolerance
• High machinability stainless steel shaft
• SUS416 ground bar 20mm diameter
• ASTM A276 416 precision rod
• Free-machining martensitic stainless bar
• 416 stainless steel for CNC machining
• Corrosion-resistant ground stainless rod

Pricing & Availability

Prices include centerless grinding, certification, and standard packaging. Volume discounts available.

Conclusion

Precision Ground 416 Stainless Steel Round Bars bridge the gap between performance, manufacturability, and cost-efficiency. By delivering as-machined accuracy straight from inventory, they eliminate costly secondary operations and accelerate time-to-market for precision-engineered components.

Whether you’re building robotic arms, hydraulic systems, or industrial valves, our ground 416 bars ensure reliable performance, consistent quality, and seamless integration into automated workflows.

Request a sample or technical datasheet today—and experience the difference precision makes.
